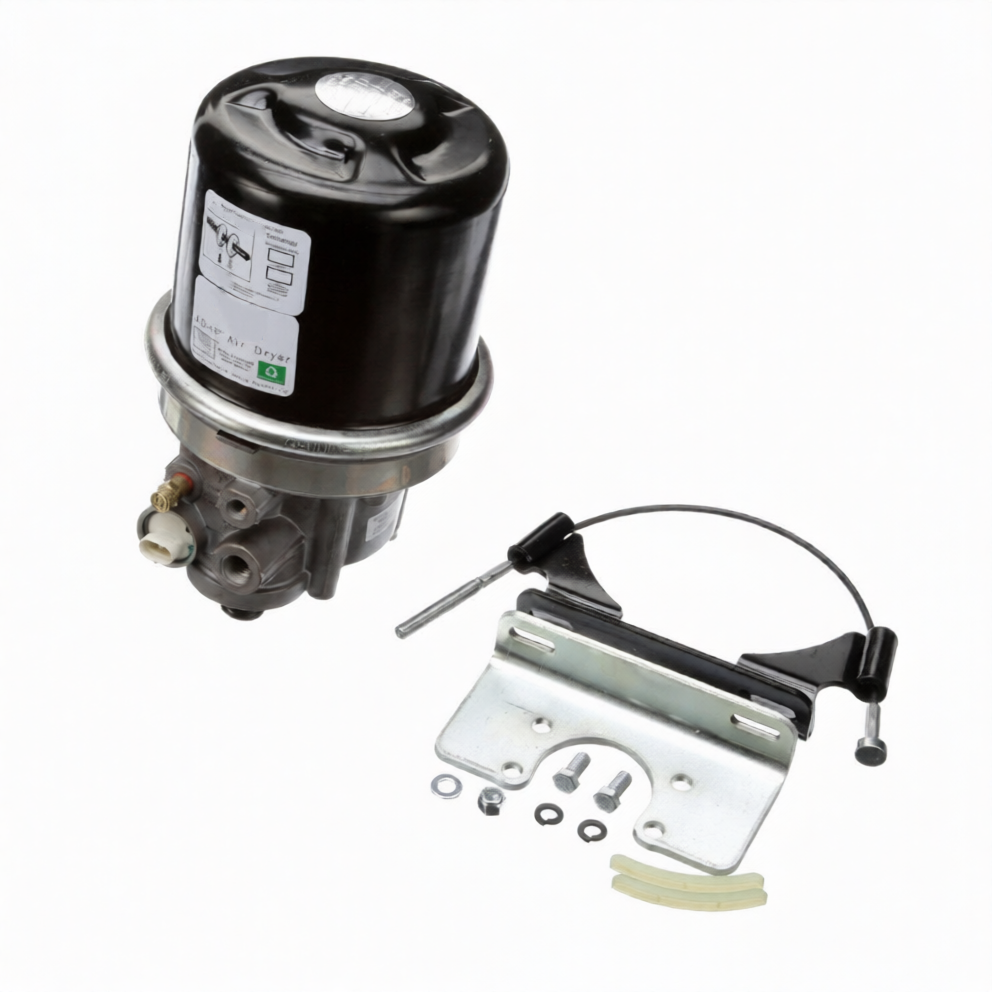

Air Dryer Cartridge PuraGuard Coalescing - 170.065612PG
Part#: AAA701065612PG
Features and Benefits
- Coalescing PuraGuard cartridge removes oil aerosols for superior compressed air quality
- Stand-alone AD-IP type for independent air drying on commercial truck brake air systems
- Cable upper mounting configuration provides flexible chassis body attachment
- Heater rated at 12V with Metri-Pack sealed connector for weatherproof electrical connection
- Extended purge port accommodates supplemental purge line routing on complex air systems
- Cartridge clearance specification ensures adequate access for cartridge removal in chassis
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 28.75 lbs |
|---|---|
| Length | 8.43 in. |
| Width | 8.82 in. |
| Height | 13.31 in. |
| Air Dryer Type | Stand-Alone |
| Body Mounting | 3/8-16 UNC-2B (4x) |
| Lower Mounting Bracket | 0.41 in. x 1.15 in. Slot (2x) |
| Upper Mounting Type | Cable |
| Upper Mounting Bracket | 0.41 in. x 1.15 in. Slot (2x) |
| Supply Port | 1/2-14 NPT |
| Control Port | 1/4-18 NPT |
| Delivery Port 1 | 1/2-14 NPT |
| Purge Exhaust Port | Standard |
| Extended Purge Port | 1/8-27 NPT (Plugged) |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Safety Valve Opening Pressure | 200 PSI |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Heater Connector Color | White |
| Cartridge Type | PuraGuard (Coalescing) |
| Cartridge Thread | 1 1/4-7 UNC-2B |
| Clearance to Remove Cartridge | 0.50 in. |
| Maximum Inlet Temperature | 160 °F |
| Minimum Operating Temperature | -40 °F |
| Interchange |
|---|
| 065612BXW |
| 065612N |
| 065612P |
| 109465 |
| 109469 |
| 109473 |
| 109477 |
| 109477B1 |
| 109477BXR |
| 109477RX |
| 109477X |
| 109477XBW |
| 109477XZ |
| 109503 |
| 12476027 |
| 131038 |
| 131066 |
| 131080 |
| 15050761 |
| 15757625 |
| 170065612 |
| 2036827C91 |
| 2036837C91 |
| 2066827C91 |
| 26QE434P10 |
| 26QE434P9 |
| 2HA644 |
| 3092721 |
| 3519688C91 |
| 3521201 |
| 3562656C91 |
| 434P10 |
| 434P9 |
| 50001266 |
| 5000151 |
| 5000154 |
| 5000155 |
| 5000156 |
| 50001740 |
| 5000794 |
| 5001266 |
| 5001740 |
| 5001743 |
| 5002900 |
| 5003976 |
| 5005249 |
| 5005556 |
| 5005556X |
| 5005697 |
| 5006591 |
| 5006634 |
| 5006848 |
| 5006878 |
| 5007270 |
| 5009817 |
| 5011752 |
| 5013548 |
| 5017604 |
| 5017605 |
| 5018880 |
| 60065612 |
| 65612 |
| 65693 |
| 745065612 |
| 745109477X |
| 74565612 |
| 745800576 |
| 745X109477 |
| 77065612 |
| 800551 |
| 800576 |
| 800576BXW |
| 85106347 |
| APL100008 |
| AT065612 |
| AT065612TEC |
| AV065612 |
| BAN065612 |
| BAN800576 |
| BAR109477 |
| BE065612 |
| BEN065612 |
| BEN800576 |
| BH065612 |
| BW065612 |
| BW109477 |
| BW109477X |
| BW65612 |
| BW800576 |
| BWBW065612 |
| BWR109477 |
| BX065612 |
| BX109477B1 |
| BX109477X |
| BX5005556X |
| BX800576 |
| CR109477X |
| EBN109477X |
| FLTAD9477 |
| GTA065612 |
| K020931 |
| K020932 |
| K020933 |
| K023699 |
| K0290931 |
| K0290932 |
| K0290933 |
| K065612 |
| K090771 |
| K096829 |
| K109477 |
| K109477RO |
| K114408 |
| OTR065612 |
| OTROTR065612 |
| P065612 |
| R109477 |
| R955109477X |
| R955109477XCF |
| S23097 |
| SAP65612D |
| TWDBEN065612 |
| TWDBEN800576 |
| WA65612 |
| ZAC065612 |
| ZAC800576 |
| ZZ109477X |
The Air Dryer is a stand-alone ADIP design with a coalescing PuraGuard cartridge and 12V heater, engineered for reliable moisture removal in Heavy Duty commercial vehicle air brake systems. Featuring cable upper mounting, the unit delivers consistent air drying performance across pneumatic configurations.
