Air Dryer Cartridge PuraGuard Coalescing Proprietary - 170.107796PG
Part#: AAA701107796PG
Features and Benefits
- Coalescing PuraGuard cartridge delivers enhanced oil removal for AD-9 air dryer service
- Proprietary cartridge style engineered for direct fitment in AD-9 series air dryer housings
- UNC thread specification for correct engagement with AD-9 cartridge port thread configuration
- Maximum operating pressure rating maintains reliable performance in brake air system use
- Temperature range sustains cartridge effectiveness across all commercial service climates
- Drop-in PuraGuard cartridge for straightforward upgrade on compatible AD-9 air dryer models
Warranty
Up to 3 years warranty
Please contact customer service to know more details

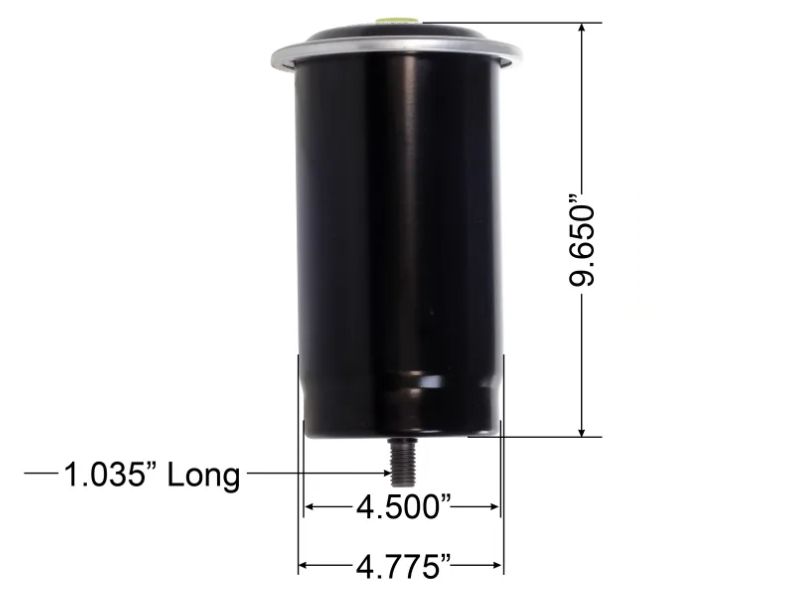

| Weight | 9.48 lbs |
|---|---|
| Length | 10.59 in. |
| Width | 5.88 in. |
| Height | 5.88 in. |
| Cartridge Style | Proprietary |
| Cartridge Thread | 5/8-11 UNC-2A |
| Cartridge Type | PuraGuard (Coalescing) |
| Maximum Operating Pressure | 150 PSI |
| Maximum Inlet Temperature | 160 °F |
| Minimum Operating Temperature | -40 °F |
| Interchange |
|---|
| 107794PG |
| 107794PGBXR |
| 107794PGBXW |
| 107796PG |
| 107796PGBXW |
| 170107796PG |
| 3518084 |
| 641244 |
| AC2000 |
| AC2001 |
| ADC2000 |
| BA5377 |
| BW107796PG |
| BX107794PG |
| BX107796PG |
| FS107794NPF |
| K046130 |
| OTR107796PGX |
| R955107796N |
| S27963 |

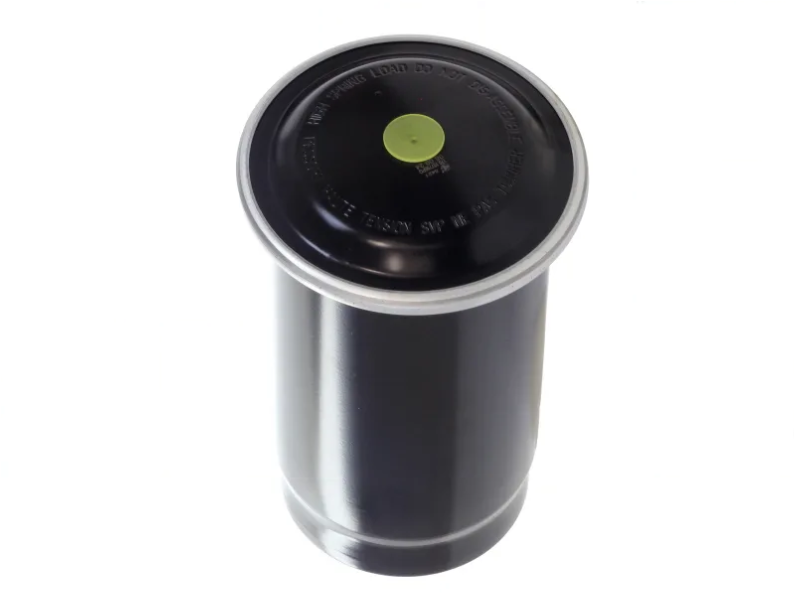

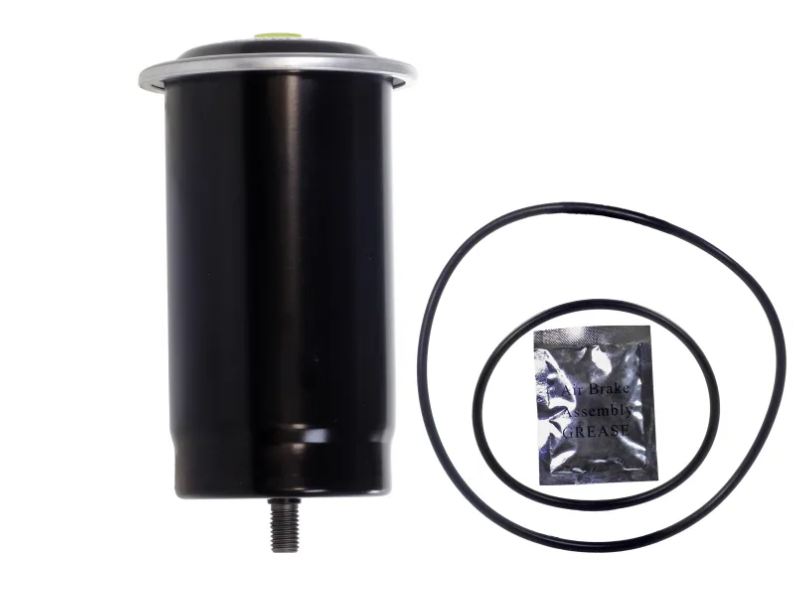

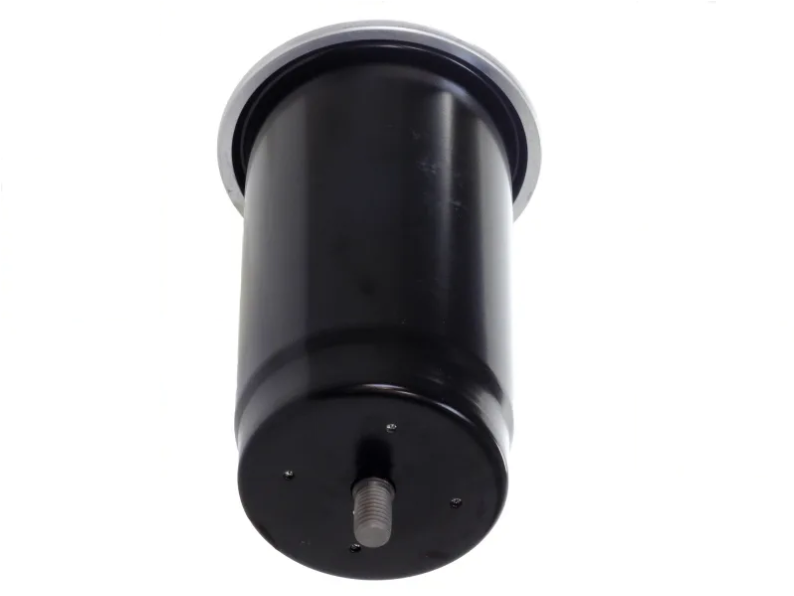

The Air Dryer cartridge is a proprietary PuraGuard coalescing unit, engineered for reliable oil and moisture separation in Heavy Duty commercial vehicle air brake systems. Designed for direct installation, the component delivers consistent filtration performance and dependable service life across pneumatic configurations.
