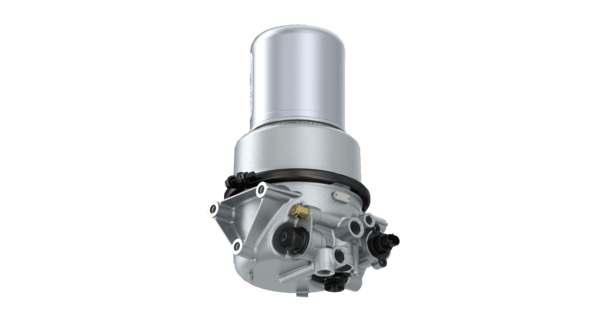

Air Dryer Cartridge Desiccant - 170.4329012482OE
Part#: AAA7014329012482OE
Features and Benefits
- Stand-alone AD-IP OE type air dryer for original-equipment brake air drying applications
- Cable upper mounting configuration accommodates varied chassis body mounting arrangements
- Heater rated at 12V with Metri-Pack sealed connector for reliable electrical performance
- Hard seat purge valve provides positive sealing between purge cycles for moisture control
- Standard cartridge with UNC thread for direct cartridge replacement at service intervals
- Extended purge port supports supplemental purge line routing on multi-circuit air systems
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Air Dryer Type | Stand-Alone |
|---|---|
| Body Mounting | 3/8-16 UNC-2B (4x) |
| Lower Mounting Bracket | 0.41 in. x 1.15 in. Slot (2x) |
| Upper Mounting Type | Cable |
| Upper Mounting Bracket | 0.41 in. x 1.15 in. Slot (2x) |
| Supply Port | 1/2-14 NPT |
| Control Port | 1/4-18 NPT |
| Delivery Port 1 | 1/2-14 NPT |
| Purge Exhaust Port | Standard |
| Extended Purge Port | 1/8-27 NPT (Plugged) |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Safety Valve Opening Pressure | 200 PSI |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Heater Connector Color | White |
| Cartridge Type | Standard |
| Cartridge Thread | 1 1/4-7 UNC-2B |
| Clearance to Remove Cartridge | 0.50 in. |
| Maximum Inlet Temperature | 160 °F |
| Minimum Operating Temperature | -40 °F |
| Interchange |
|---|
| 109994 |
| 109994K |
| 109994P |
| 109994R95011S |
| 110273600 |
| 13112020 |
| 1368731 |
| 14336 |
| 1457434004 |
| 1457434007 |
| 1487434001 |
| 1487434005 |
| 1487434901 |
| 1504900 |
| 1504900R |
| 1527756 |
| 170109994 |
| 17010999400 |
| 1705008414 |
| 170500841400 |
| 1855764500 |
| 1907612 |
| 1987434001 |
| 1987434016 |
| 2032389 |
| 20557234 |
| 21620181 |
| 220949 |
| 24374 |
| 250837 |
| 272897 |
| 2992261 |
| 2C462B915AA |
| 2TA607413 |
| 3043578 |
| 3090288 |
| 31004109 |
| 34046 |
| 3524948 |
| 352900033 |
| 401217 |
| 42029657 |
| 4290897 |
| 4291097 |
| 4291297 |
| 4293395 |
| 4293595 |
| 4293695 |
| 4293795 |
| 4300669 |
| 4300969 |
| 4324100201 |
| 4324100202 |
| 4324102212 |
| 4324102222 |
| 4324102227 |
| 4324102270 |
| 4324102432 |
| 4324109362 |
| 4324202202 |
| 4324209272 |
| 4329012222 |
| 4329012242 |
| 4329012252 |
| 4329980202 |
| 4C452A131AA |
| 4ERP5 |
| 5001865037 |
| 5008414 |
| 5008414BXW |
| 5008414K |
| 5008414N |
| 5008414PG |
| 5008414PGBXW |
| 5008414Z |
| 5008415 |
| 503135256 |
| 524374 |
| 571352308 |
| 63004329012482 |
| 641278 |
| 6585561 |
| 699387 |
| 76117673 |
| 8010002016 |
| 8123564 |
| 81521020008 |
| 8190948 |
| 8235R109994 |
| 8235R950068A |
| 8285141196 |
| 87638772 |
| 8840483382 |
| 89040662 |
| 950011 |
| 950011K |
| 950011P |
| 96327 |
| A0004290897 |
| A0004291097 |
| A0004291297 |
| A0004293395 |
| A0004293695 |
| A0004293795 |
| A0004300969 |
| A004293595 |
| A2750524 |
| ABPN10GR950011 |
| AC1000 |
| AC1001 |
| AC1001C |
| ADC1000 |
| AF27817 |
| AT252831 |
| AT950011 |
| AT950068 |
| AT950068TEC |
| AV109994 |
| AV5008414 |
| AV950011 |
| AVR950011 |
| BA5374 |
| BA5379 |
| BALBA5374 |
| BALBA5379 |
| BAN5008414 |
| BEN109994 |
| BEN5008414 |
| BND5008414PG |
| BR950011 |
| BW109994 |
| BW5008414 |
| BW5008414N |
| BW5008414PG |
| BX5008414 |
| BX5008414PG |
| CR109994 |
| CR950011 |
| CV120670 |
| F026404012 |
| FLT109994 |
| HDX109994K |
| HDX950011K |
| K109994 |
| K5008414 |
| KDC1200 |
| KR950011 |
| LFP8654 |
| M109994 |
| MERR950011 |
| ML109994K |
| N10GR950011 |
| OTR5008414 |
| OTR950011 |
| OTROTR5008414 |
| P109994 |
| P781466 |
| P951413 |
| P953571 |
| P963571 |
| PAC1001 |
| PFA5693 |
| PH5693 |
| PRO0102002 |
| R10994 |
| R109994 |
| R109994P |
| R950011 |
| R950068 |
| R950068A |
| R9550011 |
| R955005 |
| R955099P |
| R955205WX |
| R99205 |
| RAD30011 |
| S27091 |
| S4324100202 |
| S4324110202 |
| S4324202202 |
| S4324209232 |
| SA323 |
| SPCART |
| TB1374X |
| TDAR109994 |
| TDAR109994P |
| TDAR950068A |
| TECAT950068 |
| TWDR955099P |
| WA109994 |
| WAB4329012482 |
| WS10129 |
The Air Dryer is a stand-alone ADIP design with a standard cartridge and 12V heater, engineered for reliable moisture removal in Heavy Duty commercial vehicle air brake systems. Featuring cable upper mounting and hard seat purge valve, the unit delivers consistent performance across pneumatic configurations.
