Air Dryer Cartridge PuraGuard Coalescing Spin-On - 170.5008414PG
Part#: AAA7015008414PG
Features and Benefits
- Coalescing PuraGuard cartridge type for superior oil separation and moisture removal
- Spin-on PG cartridge style for fast, tool-free installation at scheduled service intervals
- Metric cartridge thread for direct engagement on compatible air dryer cartridge port threads
- Maximum operating pressure rating maintains reliable filtration in high-pressure brake systems
- Temperature operating range ensures consistent filtration performance in all service climates
- Improved coalescing performance design on PG-variant for compatible air dryer platforms
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 5.56 lbs |
|---|---|
| Length | 6.49 in. |
| Width | 5.52 in. |
| Height | 5.52 in. |
| Cartridge Style | Spin-On |

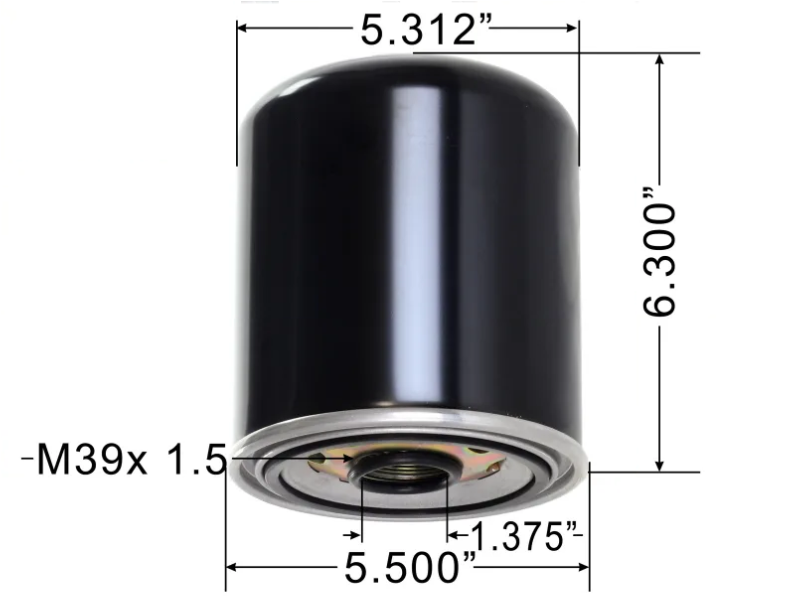

| Cartridge Thread | M39 x 1.5-6H RH |
| Cartridge Type | PuraGuard (Coalescing) |
| Maximum Operating Pressure | 14 Bar (203 PSI) |
| Maximum Inlet Temperature | 160 °F |
| Minimum Operating Temperature | -40 °F |
| Interchange |
|---|
| 107794X |
| 109994 |
| 109994K |
| 109994KM1D |
| 109994P |
| 109994R95011S |
| 109994X |
| 11017455 |
| 110273600 |
| 1117793004 |
| 1134979 |
| 1140100F |
| 13112020 |
| 1368731 |
| 1375997 |
| 14336 |
| 1457434004 |
| 1457434007 |
| 1487434001 |
| 1487434004 |
| 1487434005 |
| 1487434006 |
| 1487434007 |
| 1487434009 |
| 1487434015 |
| 1487434901 |
| 1487438901 |
| 1504900 |
| 1504900R |
| 1527756 |
| 1699595C1 |
| 170109994 |
| 17010999400 |
| 1705008414 |
| 170500841400 |
| 17157 |
| 174767 |
| 17793004 |
| 185127004 |
| 1855764500 |
| 1907612 |
| 1987434001 |
| 1987434016 |
| 2032389 |
| 20332389 |
| 20377023 |
| 20557234 |
| 21620181 |
| 220949 |
| 24374 |
| 250837 |
| 2725900 |
| 272897 |
| 272897SP |
| 2992261 |
| 2C462B915AA |
| 2TA607413 |
| 3043578 |
| 3090288 |
| 3092100 |
| 3093682 |
| 3093683 |
| 31004109 |
| 34046 |
| 3523067 |
| 3524948 |
| 352900033 |
| 3530609 |
| 3915558 |
| 391558 |
| 3HA735 |
| 401217 |
| 4041065 |
| 42029657 |
| 42360 |
| 4290897 |
| 4291097 |
| 4291297 |
| 4293395 |
| 4293595 |
| 4293695 |
| 4293795 |
| 4300669 |
| 4300969 |
| 4324100201 |
| 4324100202 |
| 4324100212 |
| 4324102212 |
| 4324102222 |
| 4324102227 |
| 4324102270 |
| 4324102432 |
| 4324109362 |
| 4324202202 |
| 4324209232 |
| 4324209272 |
| 4329012222 |
| 4329012242 |
| 4329012252 |
| 4329012482 |
| 4329980202 |
| 4920859101 |
| 4C452A131AA |
| 4ERP5 |
| 50000809504 |
| 5000295421 |
| 5001004902 |
| 5001830112 |
| 5001865037 |
| 5008414 |
| 5008414BXW |
| 5008414K |
| 5008414N |
| 5008414PGBXW |
| 5008414Z |
| 5008415 |
| 503135256 |
| 517117 |
| 524374 |
| 571352308 |
| 63004329012482 |
| 641278 |
| 6585561 |
| 699387 |
| 7455008414 |
| 76117673 |
| 79200361087 |
| 79200361090 |
| 80001 |
| 8010002016 |
| 8123564 |
| 81521020008 |
| 81521020009 |
| 81521020010 |
| 81521020013 |
| 81521020015 |
| 81521020019 |
| 81521086001 |
| 8154324209232 |
| 81821020008 |
| 8190948 |
| 8235R109994 |
| 8235R950011 |
| 8235R950068A |
| 82521020010 |
| 82521020013 |
| 8285141196 |
| 8480087 |
| 85116433 |
| 85127004 |
| 87638772 |
| 8840483382 |
| 89040662 |
| 89374 |
| 950011 |
| 950011K |
| 950011KM1D |
| 950011P |
| 950310009 |
| 96327 |
| 98446957 |
| 99002100056 |
| 99707305720 |
| A0004290897 |
| A0004291097 |
| A0004291297 |
| A0004293395 |
| A0004293695 |
| A0004293795 |
| A0004300969 |
| A004293595 |
| A26000 |
| A2750524 |
| ABPN10GR950011 |
| AC1000 |
| AC1001 |
| AC1001C |
| AD13170 |
| ADC1000 |
| ADSPCART |
| AF27817 |
| AF27817FLG |
| APL10912 |
| AT109994 |
| AT109994TEC |
| AT252831 |
| AT950011 |
| AT950011TEC |
| AT950068 |
| AT950068TEC |
| ATIR950011 |
| AUM170109994 |
| AV109994 |
| AV5008414 |
| AV950011 |
| AVR950011 |
| BA5374 |
| BA5374JAB |
| BA5379 |
| BALBA5374 |
| BALBA5379 |
| BAN5008414 |
| BBH109994 |
| BBU9424 |
| BEN109994 |
| BEN5008414 |
| BND5008414 |
| BND5008414PG |
| BR950011 |
| BR950011BXW |
| BW109994 |
| BW5008414 |
| BW5008414N |
| BW5008414PG |
| BX5008414 |
| BX5008414PG |
| BXBR950011 |
| CR109994 |
| CR950011 |
| CV120670 |
| D484811002 |
| DQ6022 |
| DSF0202 |
| F026404012 |
| FIL4374 |
| FLT109994 |
| FPDC100 |
| FT5315 |
| G1215501AH |
| GTAR950011 |
| H109994 |
| H57434007 |
| H950011 |
| HDX109994K |
| HDX950011K |
| I487434901 |
| I85127004 |
| II17793004 |
| II34979 |
| II401100F |
| K001185 |
| K009460 |
| K109994 |
| K5008414 |
| KDC1200 |
| KR950011 |
| LDC5588 |
| LFP8654 |
| M109994 |
| MERR950011 |
| ML109994K |
| N10GR950011 |
| OP585 |
| OTR5008414 |
| OTR950011 |
| OTROTR5008414 |
| P109994 |
| P781466 |
| P951413 |
| P953571 |
| P963571 |
| PAC1001 |
| PD5008414 |
| PDR950011 |
| PFA5693 |
| PH5693 |
| PRO0102002 |
| R10994 |
| R109994 |
| R109994P |
| R950011 |
| R950011N |
| R950011R0K |
| R950011RI |
| R950068 |
| R950068A |
| R9550011 |
| R955005 |
| R955099P |
| R955205WX |
| R99205 |
| RAD30011 |
| RF900019206 |
| S11611 |
| S116611 |
| S27091 |
| S4324100202 |
| S4324110202 |
| S4324202202 |
| S4324209232 |
| SA323 |
| SFA0012 |
| SPCART |
| ST1374 |
| T250W |
| TB1009 |
| TB1374T |
| TB1374X |
| TDAR109994 |
| TDAR109994P |
| TDAR950011 |
| TDAR950068A |
| TECAT950068 |
| TLA5008414 |
| TWDBEN5008414 |
| TWDR950011 |
| TWDR955099P |
| WA109994 |
| WAB4329012482 |
| WGB1374 |
| WIX24374 |
| WS10129 |
| ZAC5008414 |
| ZZ109994K |

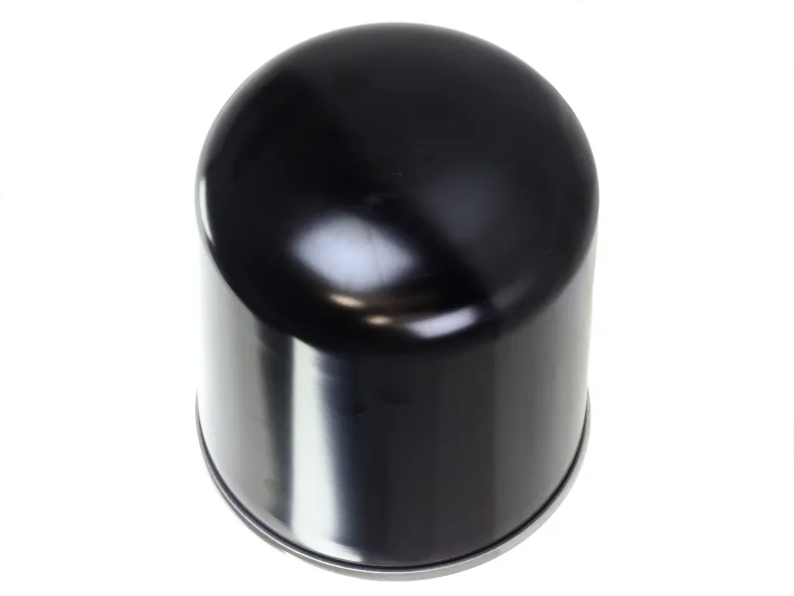

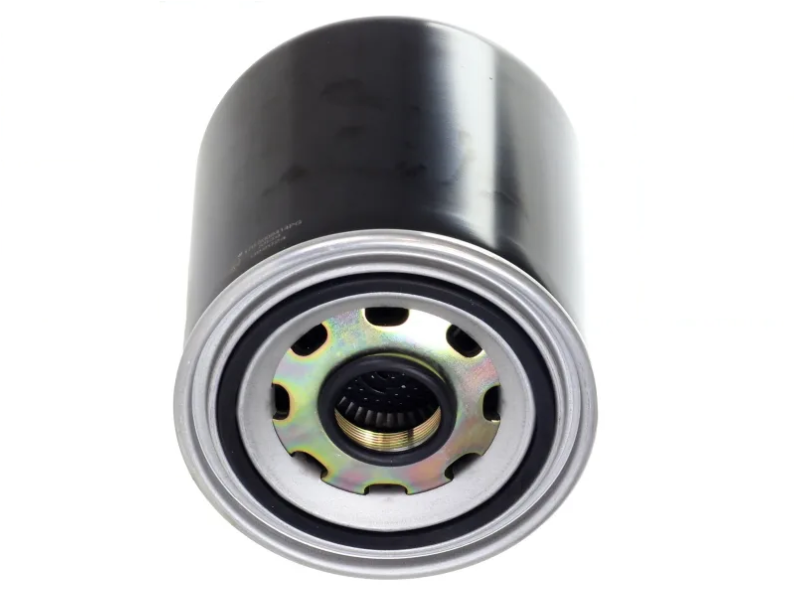

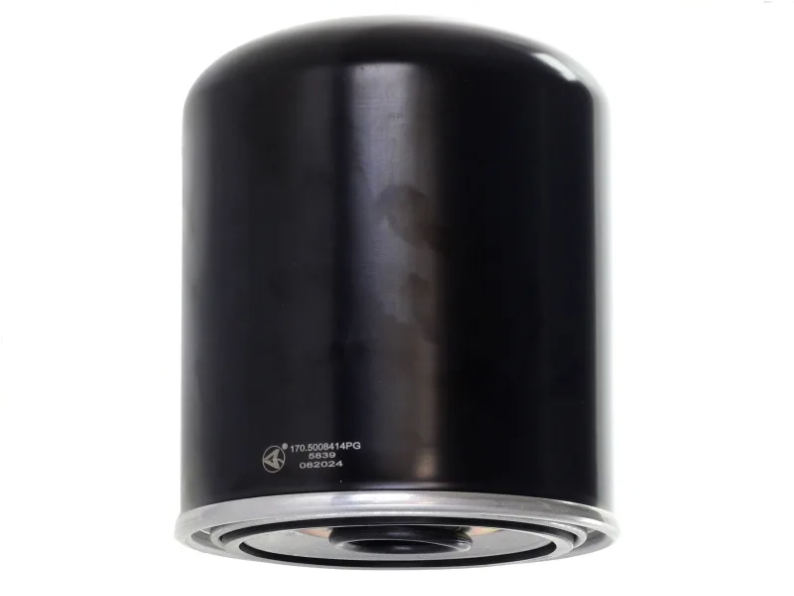

The Air Dryer cartridge is a PuraGuard coalescing spin-on replacement unit with an M39 thread connection, engineered for reliable moisture separation in Heavy Duty commercial vehicle air brake systems. The component delivers consistent filtration and dependable service life across pneumatic configurations.
