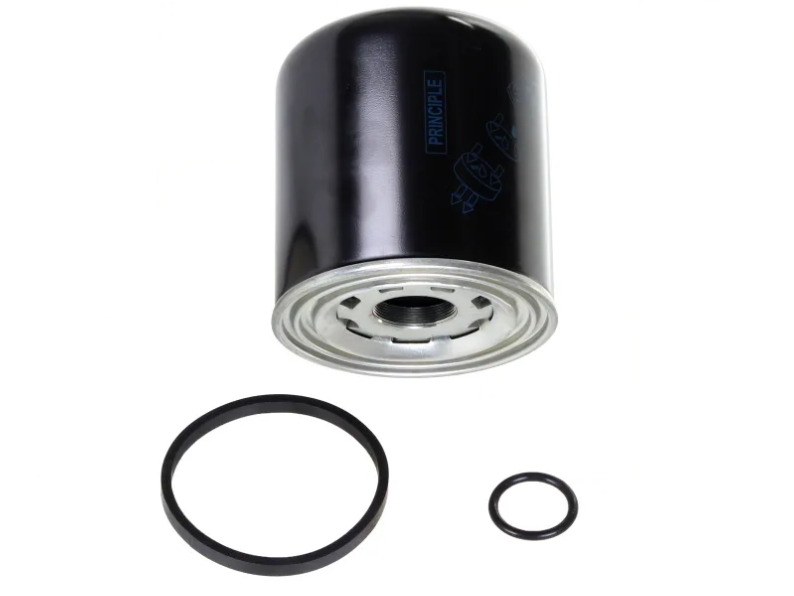

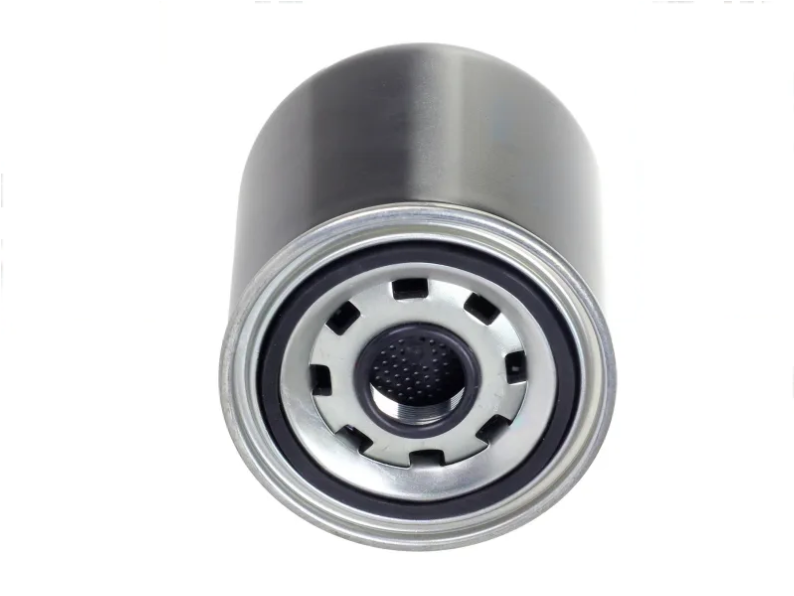

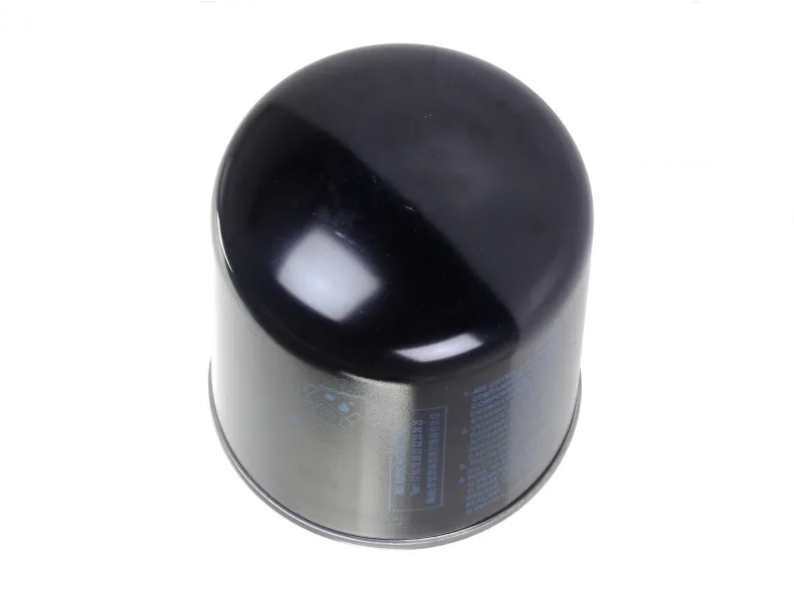

Air Dryer Cartridge PuraGuard Coalescing Spin-On - 170.5009041PG

Air Dryer Cartridge PuraGuard Coalescing Spin-On - 170.5009041PG

Part#: AAA7015009041PG

Features and Benefits

Coalescing PuraGuard cartridge removes oil aerosols for clean commercial brake air supply
Spin-on cartridge style enables fast, tool-free replacement during scheduled maintenance
Larger M41 metric thread for direct engagement with compatible larger-port air dryer housings
Maximum operating pressure rating supports sustained use in high-pressure air dryer systems
Temperature range ensures dependable coalescing filtration across all commercial climates
Larger thread specification distinguishes this cartridge from standard M39 thread variants

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Weight	5.47 lbs
Cartridge Style	Spin-On

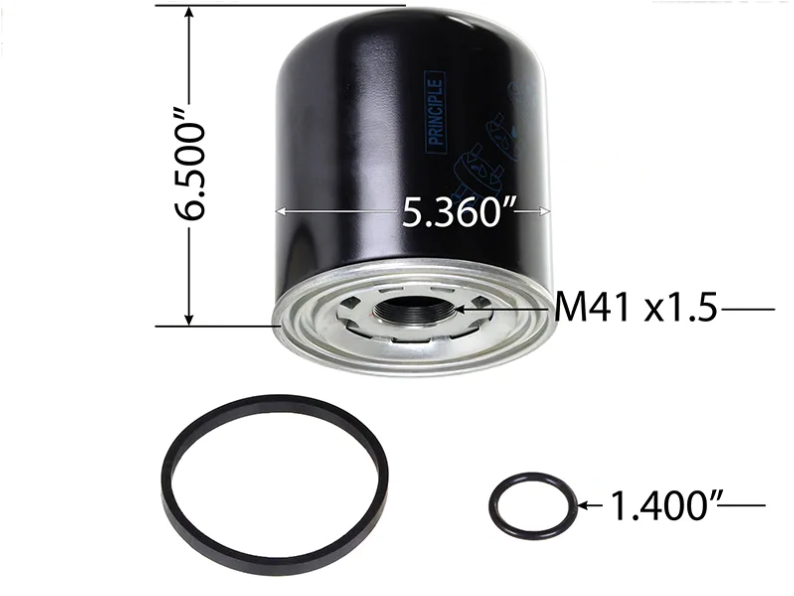

Cartridge Thread	M41 x 1.5-6H RH
Cartridge Type	PuraGuard (Coalescing)
Maximum Operating Pressure	14 Bar (203 PSI)
Maximum Inlet Temperature	160 °F
Minimum Operating Temperature	-40 °F

Interchange

102M1705009041PG
5009041
5009041PG
5009041PGBXW
K5009041C

The Air Dryer cartridge is a PuraGuard coalescing spin-on replacement unit with an M41 thread connection, engineered for reliable moisture separation in Heavy Duty commercial vehicle air brake systems. The component delivers consistent filtration and dependable service life across pneumatic configurations.
