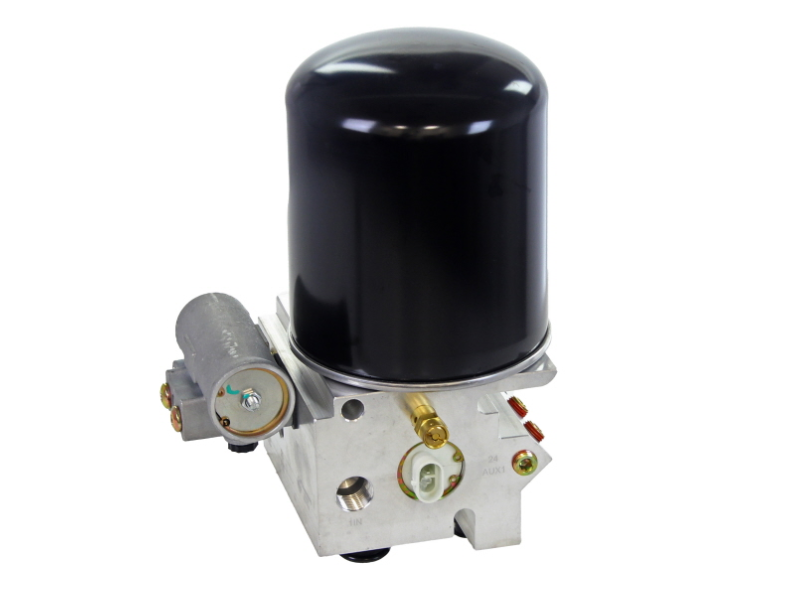

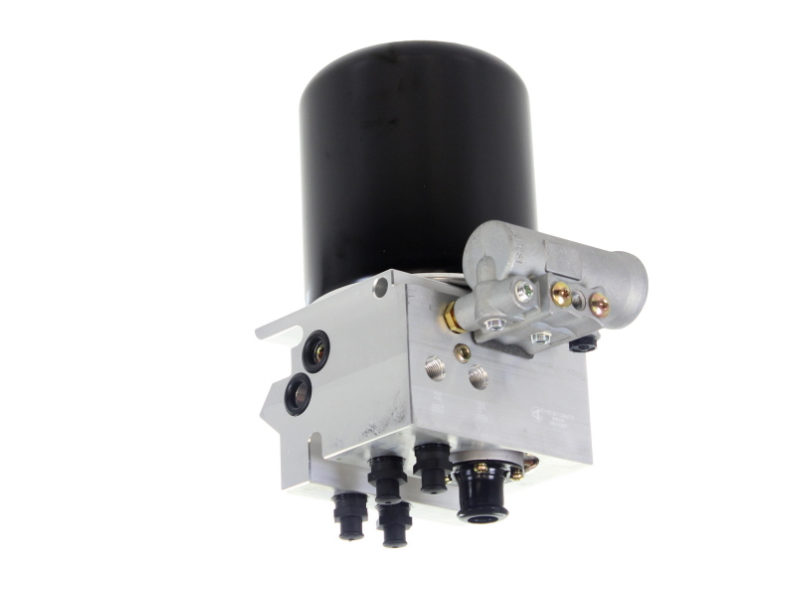

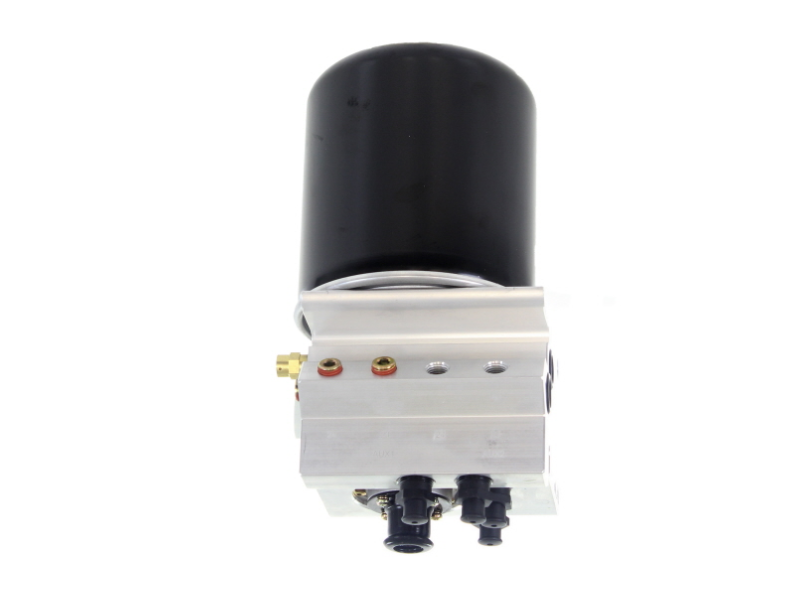

Air Dryer Cartridge PuraGuard Coalescing - 170.801266PG
Part#: AAA701801266PG
Features and Benefits
- Coalescing PuraGuard cartridge ensures high-efficiency oil removal on AD-IS dryer service
- Stand-alone AD-IS type for reservoir-mount installation on commercial truck air systems
- Governor included with non-adjustable type for consistent factory-calibrated pressure regulation
- Multiple delivery port configuration supports primary, secondary, and auxiliary circuit supply
- Heater rated at 12V with Metri-Pack sealed connector for weatherproof electrical connection
- Parallel pressure protection valve manages coordinated delivery opening pressure across circuits
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 15.00 lbs |
|---|---|
| Air Dryer Type | Stand-Alone |
| Mounting | Mount to Purge Reservoir (Not Included) |

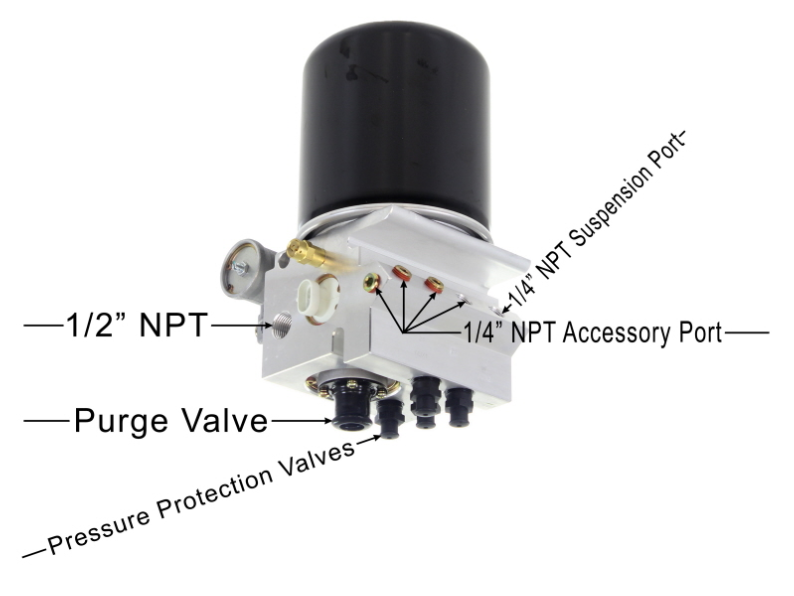

| Supply Port | 1/2-14 NPT |
| Governor Unloader Port | 1/8-27 NPT |
| Governor Reservoir Port | 1/8-27 NPT (Plugged) |
| PRI Delivery Port 21 | 1/4-18 NPT |
| PRI Delivery Opening Pressure | 103 PSI |
| SEC Delivery Port 22 | 1/4-18 NPT |
| SEC Delivery Opening Pressure | 109 PSI |
| AUX 1 Delivery Port 1 | 1/4-18 NPT (Plugged) |
| AUX 1 Delivery Port 2 | 1/4-18 NPT |
| AUX 1 Delivery Port 3 | 1/4-18 NPT |
| AUX 1 Delivery Port 4 | 1/4-18 NPT |
| AUX 1 Delivery Opening Pressure | 109 PSI |
| AUX 2 Delivery Port | 1/4-18 NPT |
| AUX 2 Delivery Opening Pressure | 109 PSI |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Hard Seat |
| Safety Valve Opening Pressure | 153 PSI |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Heater Connector Color | White |
| Cartridge Type | PuraGuard (Coalescing) |
| Cartridge Thread | M39 x 1.5-6H RH |
| Clearance to Remove Cartridge | 1.00 in. |
| Governor Included | Yes |
| Governor Type | Non-Adjustable |
| Cut-in Pressure | 110 PSI |
| Cut-out Pressure | 130 PSI |
| Pressure Protection Valve Configuration | 4.00 in. Parallel |
| Maximum Inlet Temperature | 160 °F |
| Minimum Operating Temperature | -40 °F |
| Interchange |
|---|
| 801266PG |
| BW801266PG |
| BX801266PG |
| S26987 |
| WA131266PG |
The Air Dryer is a stand-alone AD-IS design with a coalescing PuraGuard cartridge and integrated governor, engineered for reliable moisture removal in Heavy Duty commercial vehicle air brake systems. Featuring a 12V heater and pressure protection valve, the unit delivers consistent performance across pneumatic configurations.
