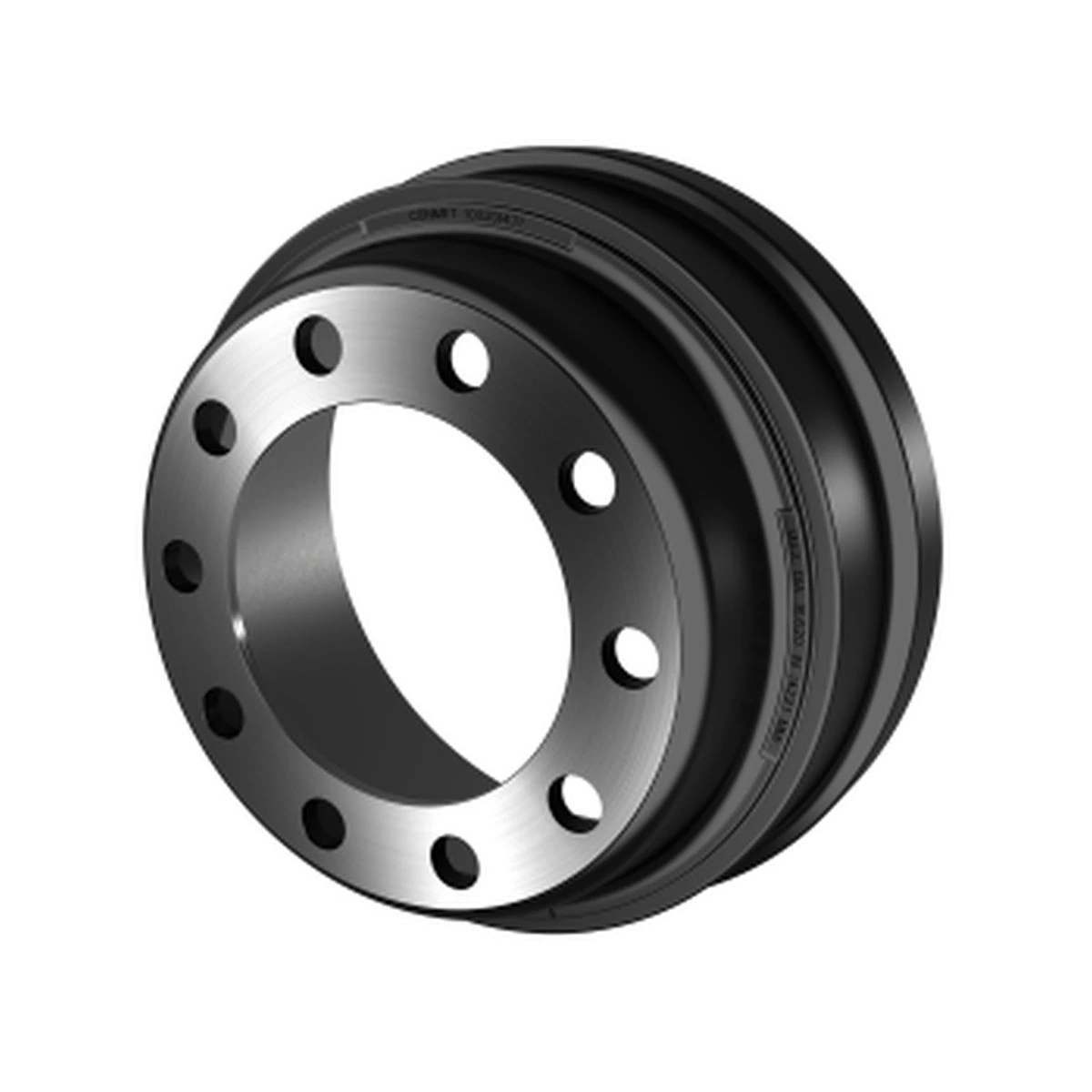

Brake Drum 16.50" x 5.00" Fully Machined 10 Hole 1.25" - 151.6503BAM
Part#: AAA8526503BAM
Features and Benefits
- Fully machined brake surface for precise dimensional accuracy and minimal run-out at installation
- Brake surface diameter matched to standard commercial truck drum brake assemblies
- Brake surface flat dimension provides correct brake shoe contact geometry for uniform lining wear
- Pilot diameter engineered for accurate hub-pilot centering on commercial disc wheel applications
- Bolt circle diameter and ten-bolt hole pattern for secure, balanced drum-to-hub attachment
- Overall depth profile provides correct drum-to-backing-plate clearance on standard axle positions
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Brake Surface Dia (A) | 16.50 in. |
|---|---|
| Overall Depth (B) | 9.37 in. |
| Brake Surface Flat (C) | 5.45 in. |
| Pilot Dia (D) | 8.78 in. |
| Bolt Circle Dia (E) | 11.25 in. |
| Bolt Holes (F) | 10 @ 1.25 in. |
| Interchange |
|---|
| 10005332 |
| 10014756 |
| 10041543 |
| 107453 |
| 3598 |
| 3598X |
| 3758X |
| 65151 |
| 65151B |
| 85123383002 |
| N42A107453 |
| TLD118 |
The Brake Drum is a fully machined design with a 16.50" friction surface diameter, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Precision finished for accurate fitment, the unit delivers consistent thermal dissipation and dependable service across a wide range of configurations.
