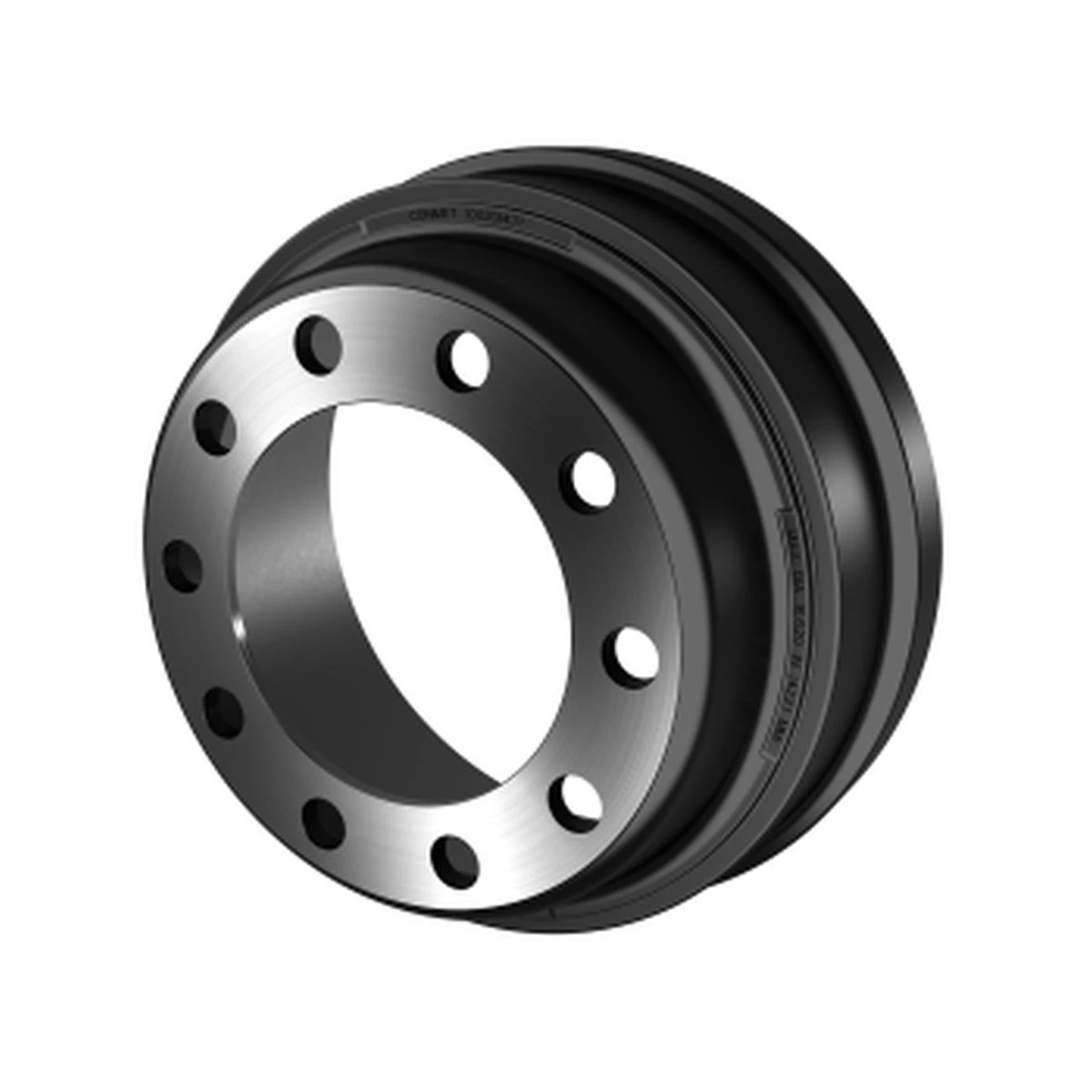

Brake Drum 16.50" x 5.00" Fully Machined 10 Hole 1.00" - 151.6506BAM
Part#: AAA8526506BAM
Features and Benefits
- Fully machined brake surface delivers precise dimensional accuracy for minimal run-out on installation
- Brake surface diameter matched to 20-series commercial truck drum brake configurations
- Brake surface flat dimension provides correct shoe contact geometry for even brake lining wear
- Pilot diameter ensures accurate hub-pilot centering on 20-series commercial disc wheel applications
- Bolt circle diameter with ten-bolt pattern for secure, balanced drum-to-hub attachment
- Overall depth profile provides correct clearance between drum and backing plate at installation
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Brake Surface Dia (A) | 16.50 in. |
|---|---|
| Overall Depth (B) | 9.38 in. |
| Brake Surface Flat (C) | 5.45 in. |
| Pilot Dia (D) | 8.78 in. |
| Bolt Circle Dia (E) | 11.25 in. |
| Bolt Holes (F) | 10 @ 1.00 in. |
| Interchange |
|---|
| 25175841 |
| 65158 |
| 65158B |
The Brake Drum is a fully machined design with a 16.50" friction surface diameter, engineered for reliable stopping performance on Heavy Duty 20-stud commercial vehicle applications. The unit delivers consistent thermal dissipation and dependable service across a wide range of wheel end and hub configurations.
