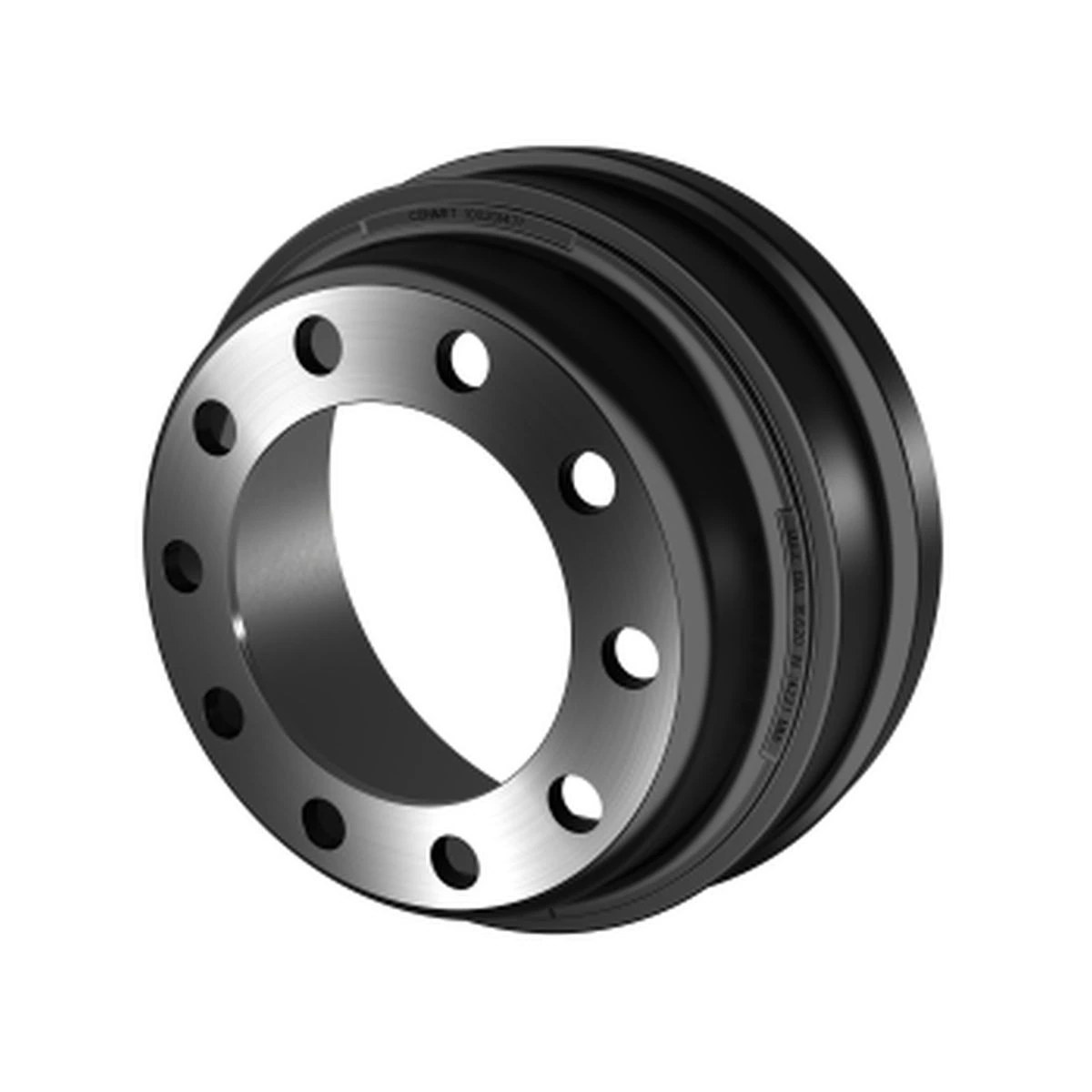

Brake Drum 16.50" x 5.00" 10 Hole 1.00" - 151.6506BATR
Part#: AAA8526506BATR
Features and Benefits
- Precision-machined brake surface for consistent dimensional accuracy and low run-out
- Brake surface diameter sized for standard drum brake systems on commercial drive and trailer axles
- Brake surface flat ensures correct brake shoe contact geometry for uniform lining engagement
- Pilot diameter for accurate hub-pilot wheel centering on standard commercial disc wheel hubs
- Bolt circle diameter and ten-bolt hole count for secure, multi-point drum-to-hub attachment
- Overall depth dimension provides correct axial clearance between drum and brake backing plate
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Brake Surface Dia (A) | 16.50 in. |
|---|---|
| Overall Depth (B) | 9.38 in. |
| Brake Surface Flat (C) | 5.45 in. |
| Pilot Dia (D) | 8.78 in. |
| Bolt Circle Dia (E) | 11.25 in. |
| Bolt Holes (F) | 10 @ 1.00 in. |
| Interchange |
|---|
| 10014756 |
| 3598BX |
| 65158B |
The Brake Drum features a 16.50" x 5.00" friction surface with a 10-bolt mounting configuration, engineered for reliable stopping performance on Heavy Duty commercial vehicle applications. The unit delivers consistent thermal dissipation and dependable service across a wide range of wheel end and hub configurations.
