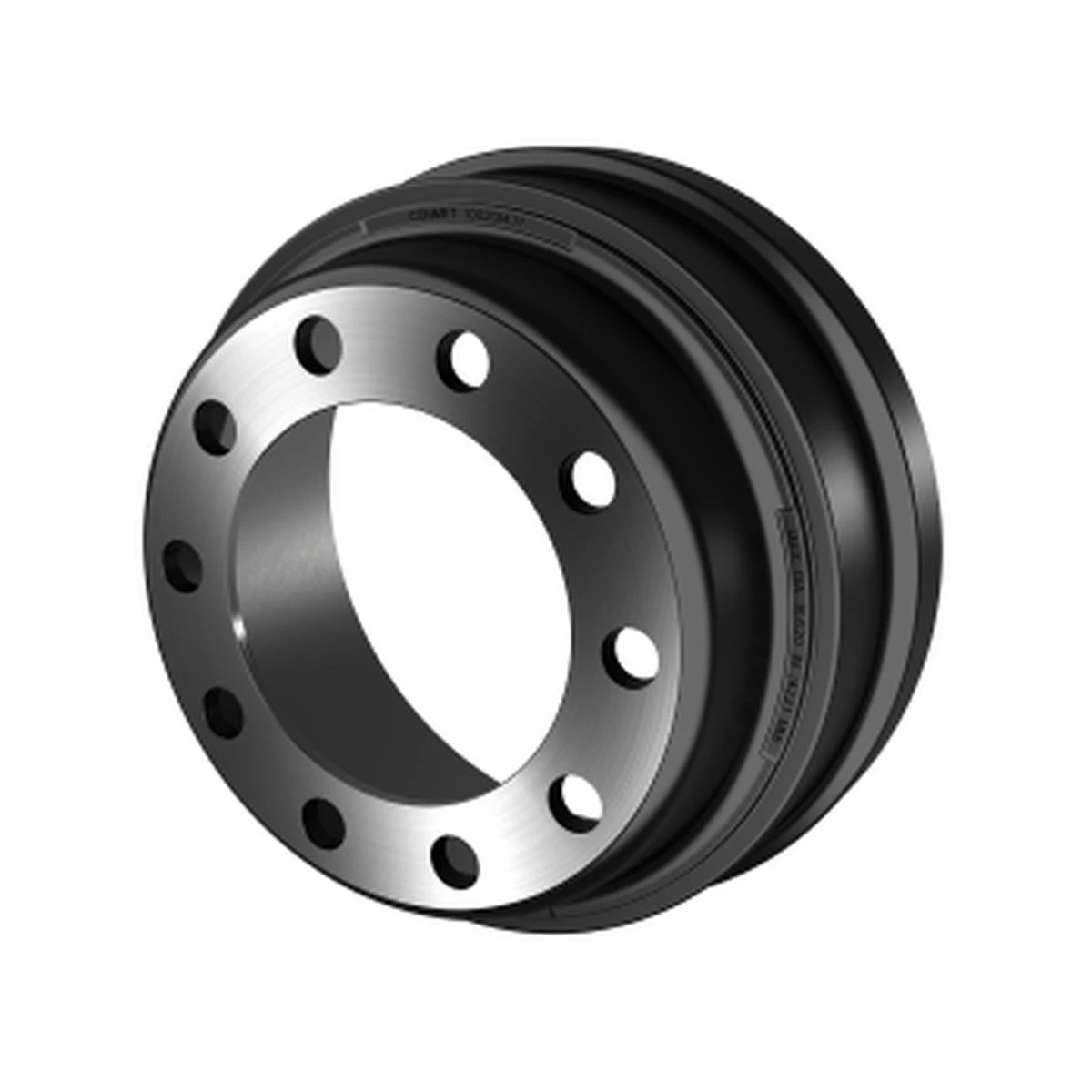

Brake Drum 16.50" x 7.00" Opti-Cast Balanced Outboard 23,000 lbs Axle - 151.6726BATR
Part#: AAA8526726BATR
Features and Benefits
- Precision opti-cast balanced construction for reduced rotational imbalance in service
- Brake diameter matched to high-capacity commercial drum brake axle assemblies
- Wider brake shoe width for a larger lining contact area and higher braking force capacity
- Ten-bolt outboard mounting pattern for secure drum retention on high-capacity axle positions
- Axle capacity rating for reliable performance on heavy duty commercial drive axle positions
- Brake surface width dimension provides correct shoe-to-drum contact for consistent lining wear
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 97.90 lbs |
|---|---|
| Type | Opti-Cast Balanced |
| Bolt Hole Diameter | 1.08 in. |
| Brake Shoe Width | 7.00 in. |
| Brake Diameter | 16.50 in. |
| Bolt Circle Diameter | 11.25 in. |
| Bolt Hole Number | 10 |
| Brake Width | 7.00 in. |
| Brake Size | 16.50 in. x 7.00 in. |
| Overall Depth | 10.54 in. |
| Drum Mounting | Outboard |
| Brake Surface Width | 7.46 in. |
| Pilot Diameter | 8.78 in. |
| Axle Capacity | 23,000 lbs |
| Wheel Type | Disc |
| Interchange |
|---|
| 1516726BA |
| 3299X |
| 3922X |
| 56864B |
| 56864BV |
| 60000018 |
| 6000018 |
The Brake Drum is an Opti-Cast balanced design with a 16.50" x 7.00" friction surface, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Featuring outboard mounting and disc wheel compatibility, the unit delivers consistent thermal dissipation and dependable service across configurations.
