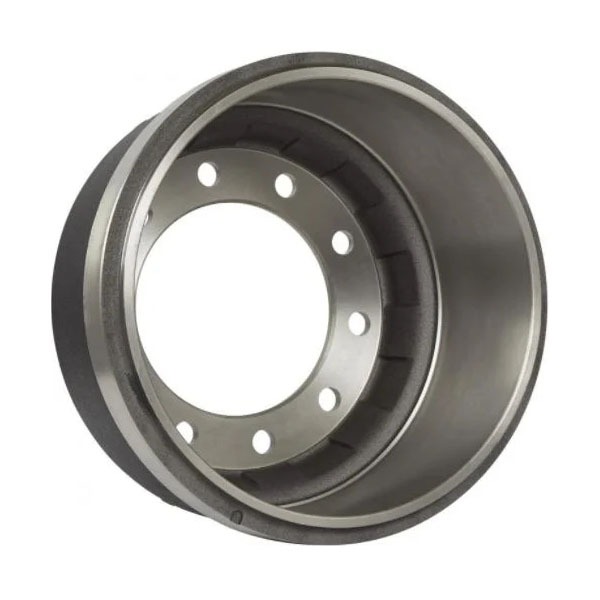

Brake Drum 16.50" x 8.62" 10 Hole 1.00" - 151.68607BA
Part#: AAA85268607BA
Features and Benefits
- Extra-wide brake surface flat supports maximum brake shoe contact area for high-load axles
- Brake surface diameter matched to heavy duty commercial drum brake system configurations
- Extended overall depth profile accommodates the wider brake assembly on high-capacity axle positions
- Pilot diameter for accurate hub-pilot centering on standard commercial disc wheel assemblies
- Bolt circle diameter with ten-bolt pattern for secure drum-to-hub attachment on heavy duty axles
- Dimensional profile engineered for correct clearance on high-capacity drum brake axle installations
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Brake Surface Dia (A) | 16.50 in. |
|---|---|
| Overall Depth (B) | 11.06 in. |
| Brake Surface Flat (C) | 9.02 in. |
| Pilot Dia (D) | 8.78 in. |
| Bolt Circle Dia (E) | 11.25 in. |
| Bolt Holes (F) | 10 @ 1.00 in. |
| Interchange |
|---|
| 53123771002 |
| 600014HD |
| 600026B |
The Brake Drum features a 16.50" friction surface diameter with a 10-bolt mounting configuration, engineered for reliable stopping performance on Heavy Duty commercial vehicle applications. The unit delivers consistent thermal dissipation and dependable service across a wide range of wheel end and hub configurations.
