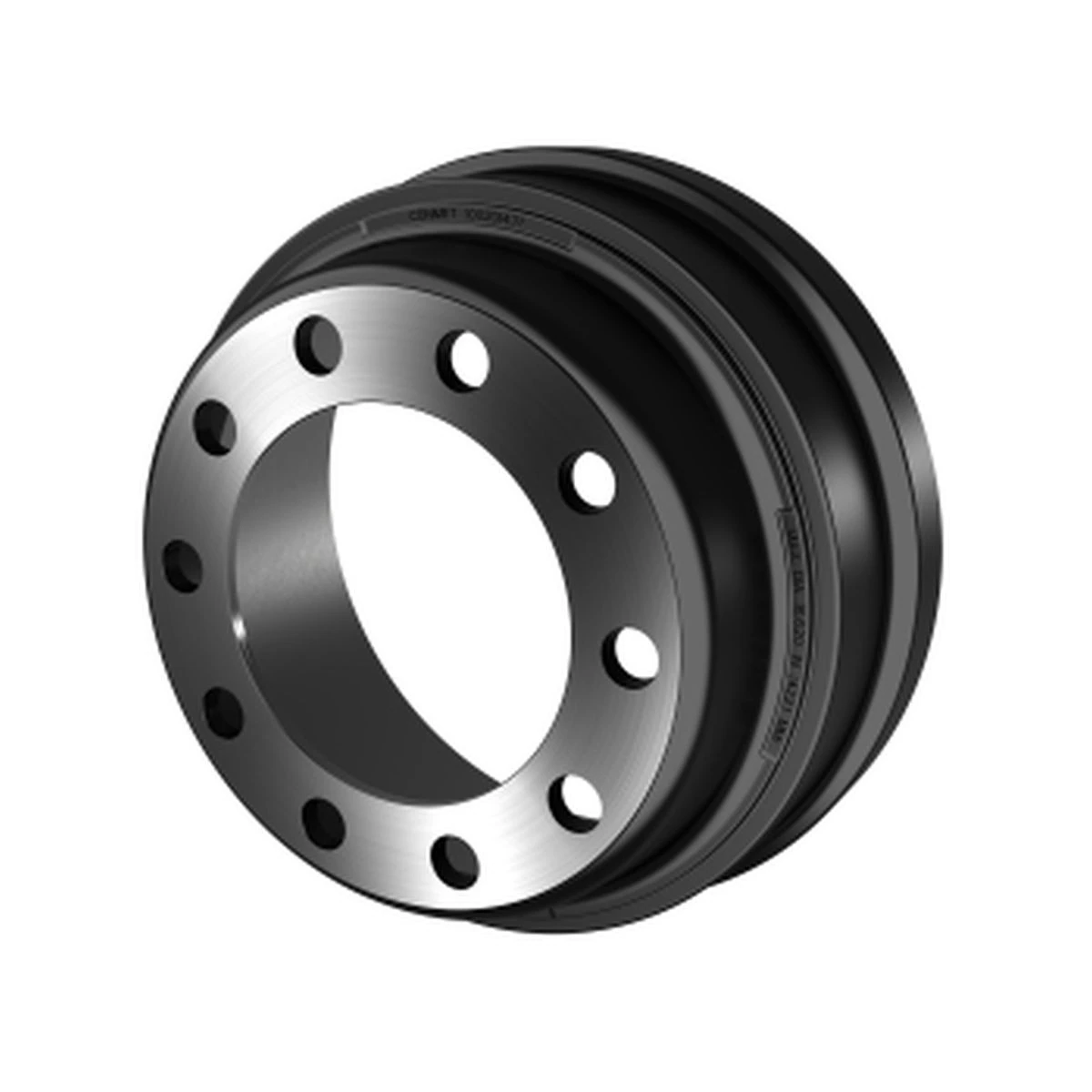

Brake Drum 16.50" x 8.63" Cast Balanced Outboard 10 Hole 26,000 lbs Axle - 151.68607TR
Part#: AAA85268607TR
Features and Benefits
- Cast balanced type for smooth, vibration-minimised operation on high-capacity commercial axles
- Brake diameter matched to heavy duty drum brake systems on the highest-rated commercial axles
- Wide brake shoe width provides maximum lining contact area for heavy duty braking demands
- Ten-bolt outboard mounting configuration for secure drum attachment on high-capacity axle positions
- Axle capacity rating for reliable performance on the highest-rated heavy duty commercial axles
- Higher drum weight supports the heavier material requirement of wide brake shoe drum applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 125.90 lbs |
|---|---|
| Type | Cast Balanced |
| Bolt Hole Diameter | 0.94 in. |
| Brake Shoe Width | 8.63 in. |
| Brake Diameter | 16.50 in. |
| Bolt Circle Diameter | 11.25 in. |
| Bolt Hole Number | 10 |
| Brake Width | 8.63 in. |
| Brake Size | 16.50 in. x 8.63 in. |
| Overall Depth | 11.25 in. |
| Drum Mounting | Outboard |
| Brake Surface Width | 9.11 in. |
| Pilot Diameter | 8.78 in. |
| Axle Capacity | 26,000 lbs |
| Wheel Type | Disc |
| Interchange |
|---|
| 100120897 |
| 10012097 |
| 107638 |
| 15168607 |
| 212185123570002 |
| 3807AX |
| 630000 |
| 66854B |
| 66855B |
| 77809BW |
| 77854BW |
| 78500B |
The Brake Drum is a cast balanced design with a 16.50" x 8.63" friction surface, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Featuring outboard mounting and disc wheel compatibility, the unit delivers consistent thermal dissipation and dependable service across a wide range of configurations.
