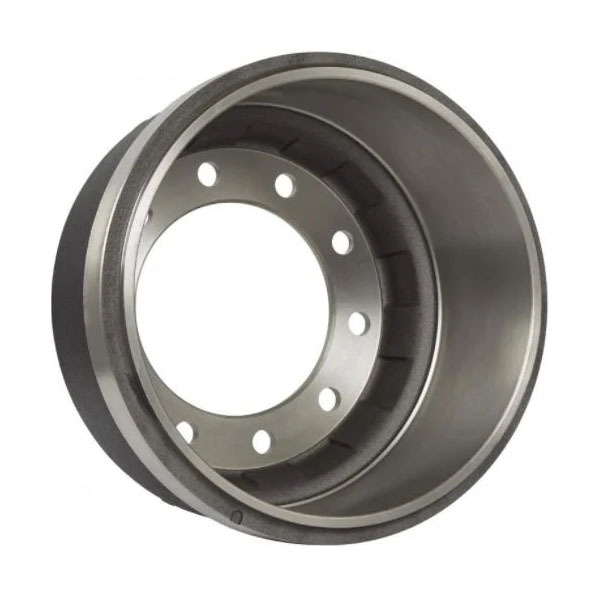

Brake Drum 16.50" x 8.62" K Outboard 10 Hole 1.00" - 09078
Part#: AAA85209078
Features and Benefits
- Type K cast construction for reliable performance in demanding heavy duty brake drum applications
- Brake surface diameter matched to high-capacity commercial drum brake axle configurations
- Wide brake shoe width provides a large contact area for high-load drum braking capacity
- Outboard mounting style with ten-bolt pattern for secure drum attachment on commercial axles
- Maximum wear diameter specification provides a clear service limit for safe drum retirement
- Higher drum weight reflects the heavy material requirement of this wide brake shoe drum type
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | K |
|---|---|
| Mount | Outboard |
| Weight | 120 lbs |
| Brake Surface Diam. | 16.50 in. |
| Brake Shoe Width | 8.62 in. |
| Overall Depth | 11.46 in. |
| Pilot Diameter | 8.78 in. |
| Bolt Circle Diam. | 11.25 in. |
| Bolt Hole Qty | 10 |
| Bolt Hole Size | 1.00 in. |
| Max Wear Diam. | 16.62 in. |
| Brake Surface Flat | 9.12 in. |
| Interchange |
|---|
| 10037825 |
| 10037830 |
| 3789373 |
| 3807AX |
| 4006120100 |
| 4711 |
| 4726 |
| 600014HD |
| 600026 |
| 66854B |
| 66855B |
| 77854BW |
| N42A10012097 |
| N42A1658625B |
The Brake Drum is a Type K design with a 16.50" x 8.62" friction surface, engineered for reliable stopping performance on Heavy Duty commercial vehicle applications. Featuring outboard mounting, the unit delivers consistent thermal dissipation and dependable service across a wide range of wheel end and hub configurations.
