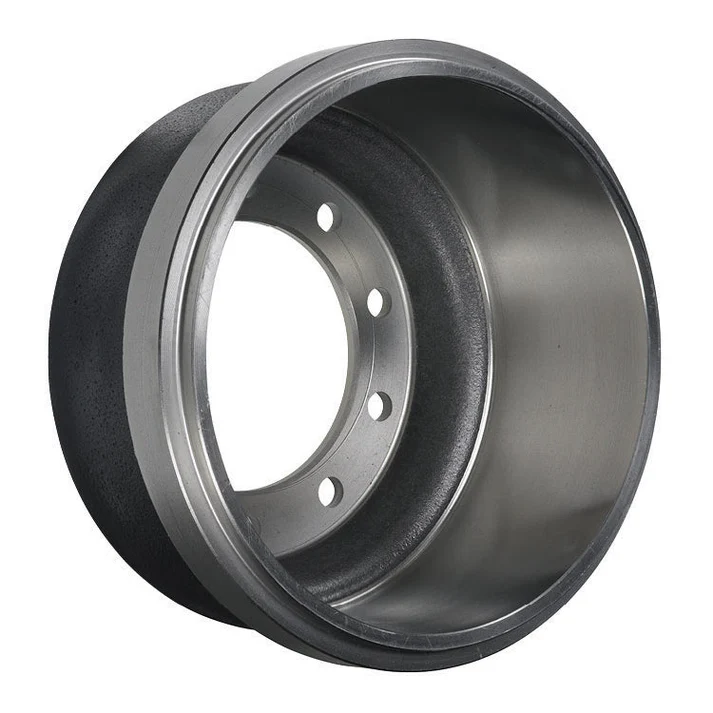

Brake Drum 16.50" x 5.00" Balanced Pilot 10 Hole 1.28" 23,000 lbs Axle - DB1655B
Part#: AAA8521655B
Features and Benefits
- Balanced X30 construction for precision rotational balance and reduced vibration in service
- Brake diameter matched to commercial drive and trailer axle drum brake configurations
- Standard brake shoe width for correct lining contact area on commercial drum brake assemblies
- Pilot mounting style for accurate hub-pilot centering and secure drum installation
- Axle capacity rating for reliable performance on high-capacity commercial axle positions
- Disc wheel compatibility with outboard-style pilot mounting for direct fitment on hub-pilot wheels
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 84.03 lbs |
|---|---|
| Brake Diameter | 16.50 in. |
| Bolt Hole Number | 10 |
| Bolt Circle Diameter | 11.25 in. |
| Type | X30 Balanced |
| Brake Shoe Width | 5.00 in. |
| Bolt Hole Diameter | 1.28 in. |
| Brake Surface Width | 6.08 in. |
| Wheel Type | Disc |
| Drum Mounting | Pilot |
| Overall Depth | 8.80 in. |
| Brake Size | 16.50 in. x 5.00 in. |
| Pilot Diameter | 8.78 in. |
| Brake Width | 5.00 in. |
| Axle Capacity | 23,000 lbs |
| Interchange |
|---|
| 40003X |
| 600001 |
| 80005018 |
| 95710B |
| RZ53123816002 |
| TDA53123816002 |
| TWD53123816002 |
The Brake Drum is an X30 balanced design with a 16.50" x 5.00" friction surface, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Featuring pilot mounting and disc wheel compatibility, the unit delivers consistent thermal dissipation and dependable service across a wide range of configurations.
