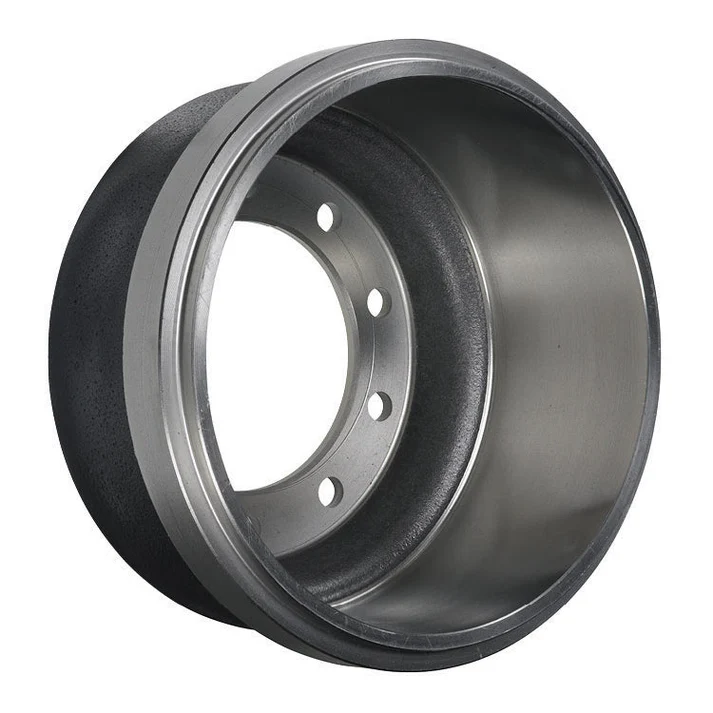

Brake Drum 16.50" x 7.00" Opti-Cast Balanced Outboard 10 Hole 23,000 lbs Axle - 60000018
Part#: AAA85260000018
Features and Benefits
- Superior opti-cast balanced construction for minimised rotational imbalance in heavy duty service
- Brake diameter matched to high-capacity commercial drum brake axle positions
- Wider brake shoe width for increased lining engagement and higher braking force distribution
- Ten-bolt outboard mounting configuration for secure, multi-point drum-to-hub attachment
- Axle capacity rating supports dependable performance on high-capacity commercial drive axles
- Brake surface width provides correct shoe contact geometry for consistent and even lining wear
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 97.90 lbs |
|---|---|
| Type | Opti-Cast Balanced |
| Bolt Hole Number | 10 |
| Bolt Hole Diameter | 1.08 in. |
| Brake Diameter | 16.50 in. |
| Bolt Circle Diameter | 11.25 in. |
| Brake Shoe Width | 7.00 in. |
| Brake Surface Width | 7.46 in. |
| Pilot Diameter | 8.78 in. |
| Overall Depth | 10.54 in. |
| Drum Mounting | Outboard |
| Brake Width | 7.00 in. |
| Brake Size | 16.50 in. x 7.00 in. |
| Axle Capacity | 23,000 lbs |
| Wheel Type | Disc |
| Interchange |
|---|
| 1516726BA |
| 1516726BATR |
| 3299X |
| 3922X |
| 56864B |
| 56864BV |
| 6000018 |
The Brake Drum is an Opti-Cast balanced design with a 16.50" x 7.00" friction surface, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Featuring outboard mounting and disc wheel compatibility, the unit delivers consistent dissipation and dependable service across configurations.
