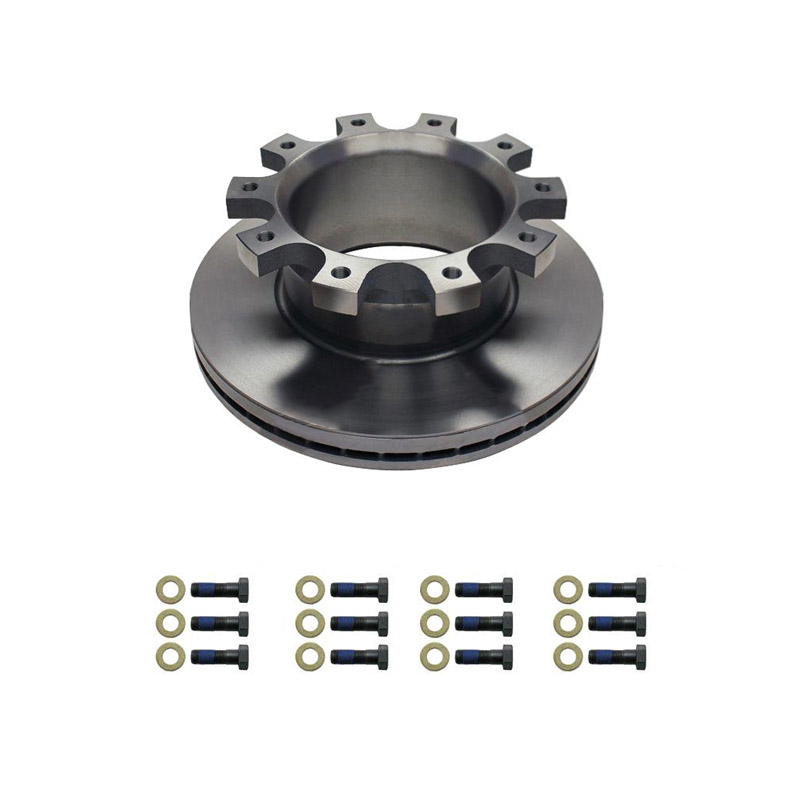

Brake Rotor 16 15/16" U-Shaped 1 3/4" 10 Hole EX225 - 153.10020109
Part#: AAA85310020109
Features and Benefits
- U-shaped rotor style for air disc brake applications on Meritor FF, FL, and R series axles
- Model EX225 compatibility for targeted rotor selection on Meritor EX225 caliper configurations
- Outside diameter of 16-15/16" for correct rotor sizing on compatible Meritor axle assemblies
- Ten-bolt mounting hole pattern on standard bolt circle for secure rotor-to-hub attachment
- New disc thickness dimension with discard thickness marking for accurate service life monitoring
- Pilot diameter for precise hub-pilot centering and Mercedes axle rotor installation alignment
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 86.70 lbs |
|---|---|
| Style | U-Shaped |
| Pilot Diameter | 8 1/8 in. |
| Outside Diameter | 16 15/16 in. |
| Flange Thickness | 1.00 in. |
| Mounting Holes | 10 |
| Rotor Depth | 6 5/16 in. |
| New Disc Thickness | 1 3/4 in. |
| Bolt Circle Diameter | 11 1/4 in. |
| Type | U-Shaped |
| Notes | Mercedes Axle |
| Application | Meritor Axles FF, FL, & R |
| Bolt Hole Size | M16 X 1.5 |
| Model | EX225 |
| Discard Thickness | 1 9/16 in. |
| Interchange |
|---|
| 10020109 |
| 10020682 |
| 125710 |
| 56090PK |
| 8235M44DH20682 |
| ADR1110 |
| AMR2240N |
| BR17D135 |
| CM10020682 |
| CNM10020682 |
| M44DH20682 |
| OTR76620 |
| PL76620 |
| RB76620 |
| TDAM44DH20682 |
The Brake Rotor is a U-shaped air disc design with a 16 15/16" outside diameter, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Compatible with Meritor EX225 caliper mounting, the component delivers consistent friction surface contact and dependable service life across a wide range of platforms.
