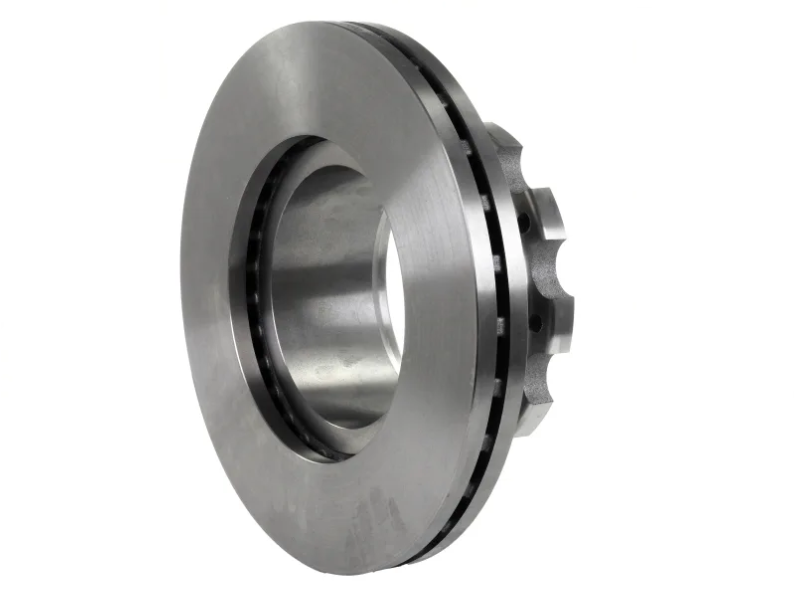

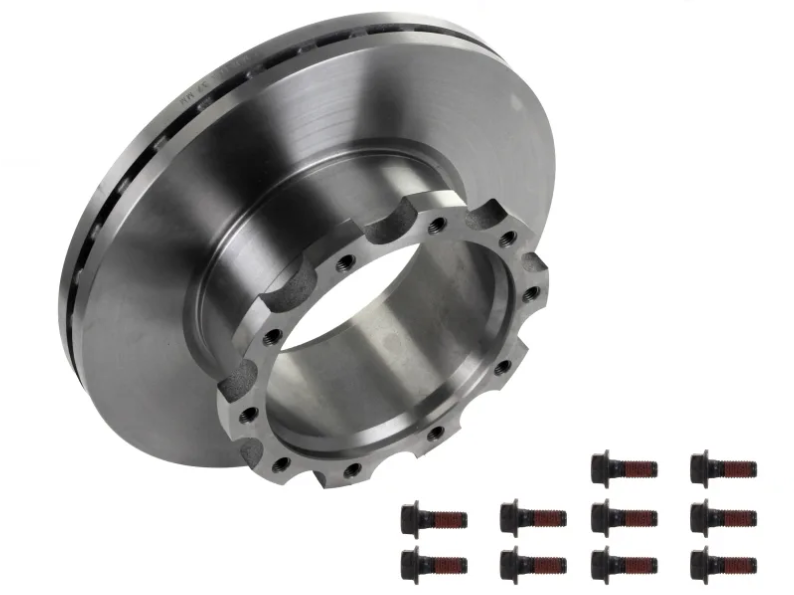

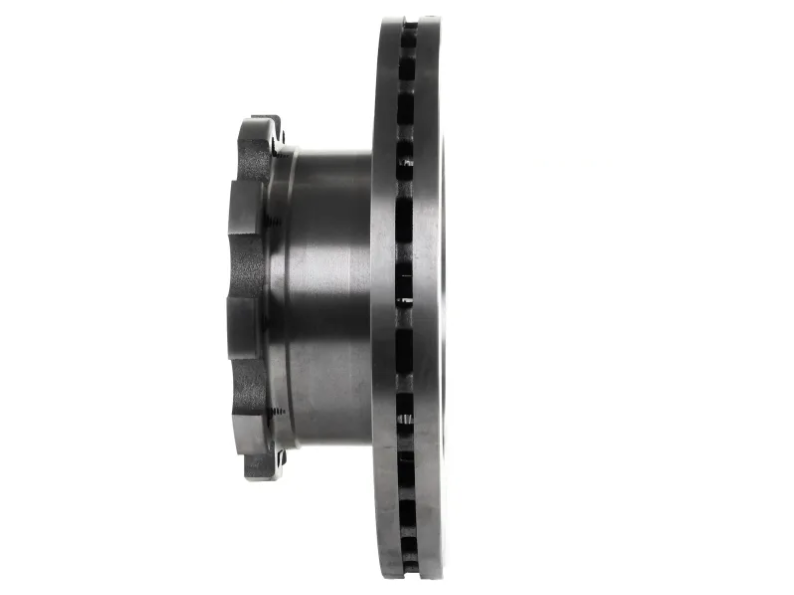

Brake Rotor 16 15/16" U-Shaped 1 3/4" 10 Hole ADB22X - 153.125802
Part#: AAA853125802
Features and Benefits
- U-shaped rotor style for air disc brake applications on Bendix/Knorr ADB22X axle systems
- Model ADB22X compatibility for targeted rotor selection on Bendix/Knorr caliper configurations
- Outside diameter of 16-15/16" for correct rotor sizing on compatible ADB22X axle assemblies
- Ten-bolt mounting hole pattern on standard bolt circle for secure rotor-to-hub attachment
- New disc thickness with discard thickness specification for accurate ADB22X service life tracking
- No ABS teeth design for installations without ABS tone ring requirements on ADB22X axles
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 80.31 lbs |
|---|---|
| Style | U-Shaped |
| Rotor Depth | 5 7/8 in. |
| Flange Thickness | 15/16 in. |
| Pilot Diameter | 8 11/16 in. |
| Outside Diameter | 16 15/16 in. |
| Mounting Holes | 10 |
| Bolt Hole Size | 5/8 in.-11 |
| Type | U-Shaped |
| Discard Thickness | 1 7/16 in. |
| Application | Bendix/Knorr ADB22X |
| Bolt Circle Diameter | 9 13/16 in. |
| Notes | No ABS Teeth |
| Model | ADB22X |
| New Disc Thickness | 1 3/4 in. |
| Interchange |
|---|
| 10012031 |
| 10019897 |
| 10041006 |
| 10082074 |
| 12086006 |
| 125802 |
| 153125802 |
| 76617 |
| 802082 |
| CSD17A02 |
| K000332 |
| K038574 |
| K110358 |
| M44D802082 |
| OTR86718 |
| S32193 |
| TDAM44D802082 |
| TW125802 |
| TWDM44D76617 |
| WE56095P |
The Brake Rotor is a U-shaped air disc design with a 16 15/16" outside diameter, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Compatible with Bendix and Knorr ADB22X caliper mounting, the component delivers consistent friction surface contact across a wide range of platforms.
