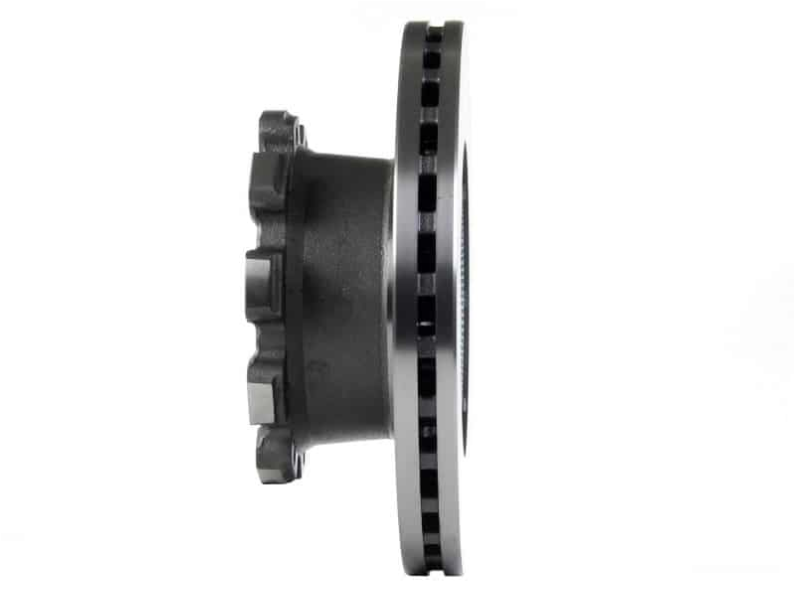

Air Disc Brake Rotor 16 5/16" U-Shaped 1 11/16" Maxx 22T Bolt-On Tone Ring - 153.134471
Part#: AAA853134471
Features and Benefits
- U-shaped rotor style for air disc brake applications on Hendrickson Maxx 22T axle systems
- Model Maxx 22T compatibility for precise rotor selection on Hendrickson caliper configurations
- Outside diameter of 16-5/16" for correct rotor sizing on Hendrickson Maxx 22T assemblies

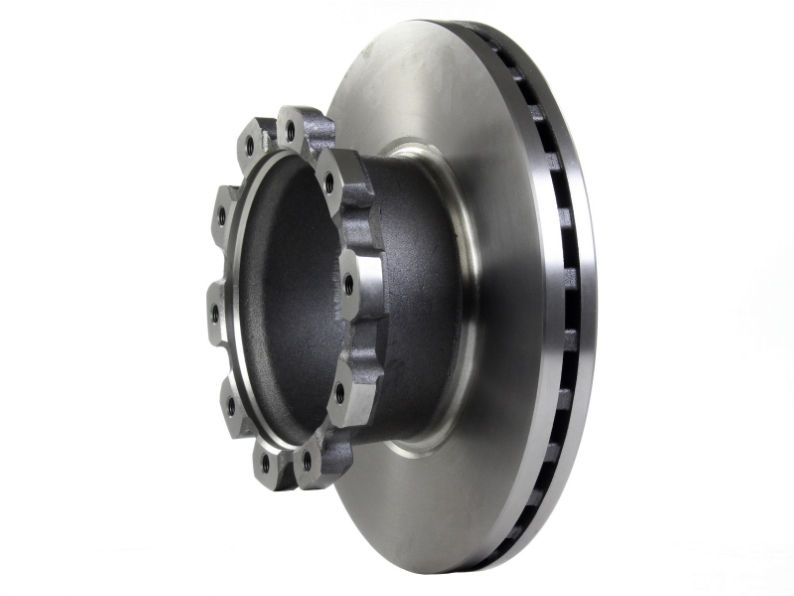

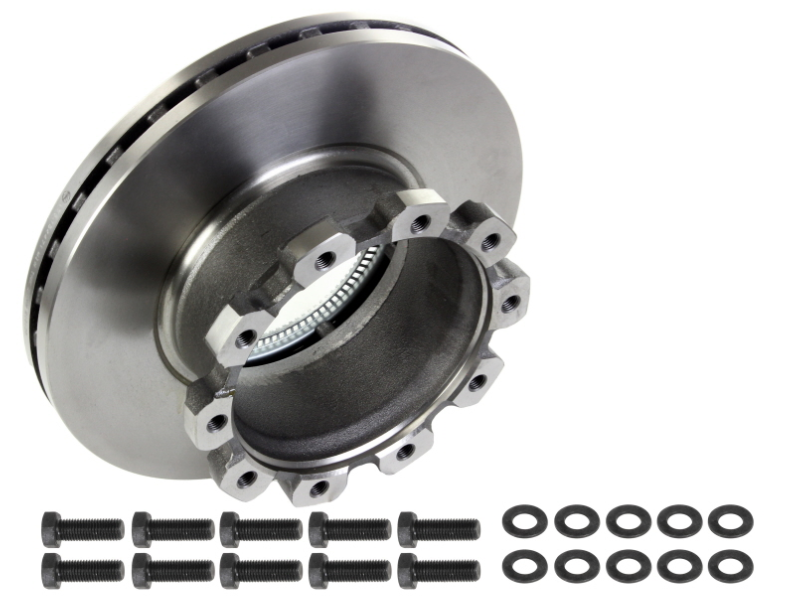

- Ten-bolt mounting pattern with M16 x 2.0 bolt hole size for secure Maxx 22T hub attachment
- New disc thickness with discard thickness rating for accurate Maxx 22T rotor service life monitoring

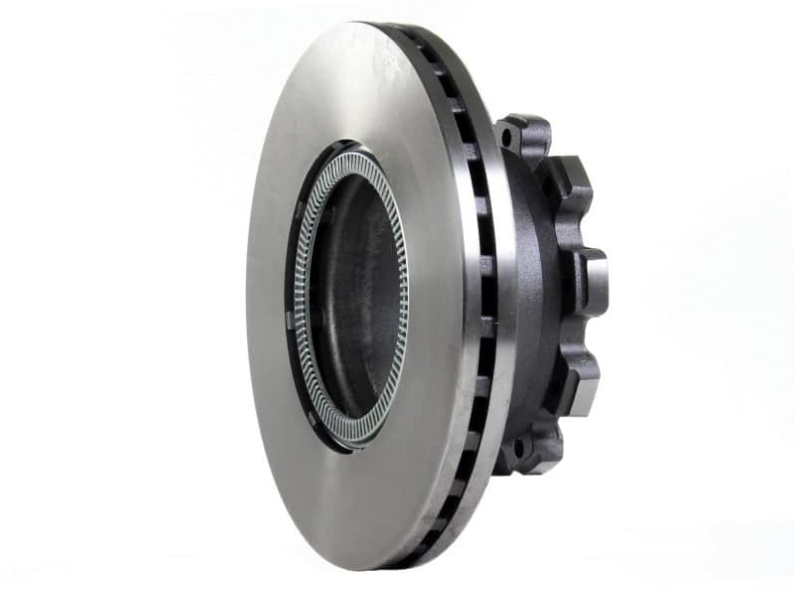

- Stainless steel bolt-on tone ring with teeth flush to outside surface for ABS sensor compatibility
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 67.50 lbs |
|---|---|
| Style | U-Shaped |
| Pilot Diameter | 8 11/16 in. |
| Rotor Depth | 5 7/8 in. |
| Mounting Holes | 10 |
| Outside Diameter | 16 5/16 in. |
| Type | U-Shaped |
| New Disc Thickness | 1 11/16 in |
| Bolt Circle Diameter | 9 13/16 in. |
| Discard Thickness | 1 7/16 in. |
| Model | Maxx 22T |
| Application | Hendrickson Maxx 22T |
| Notes | Stainless steel bolt-on tone ring |
| Teeth | Flush with outside surface |
| Bolt Hole Size | M16 X 2.0 |
| Interchange |
|---|
| 55035PK |
| E18210H |
| S34471 |
The Brake Rotor is a U-shaped air disc design with a 16 5/16" outside diameter, engineered for reliable stopping performance on Heavy Duty commercial vehicle axle applications. Compatible with Hendrickson Maxx 22T caliper configurations, the component includes a stainless steel bolt-on tone ring for ABS sensor compatibility.
