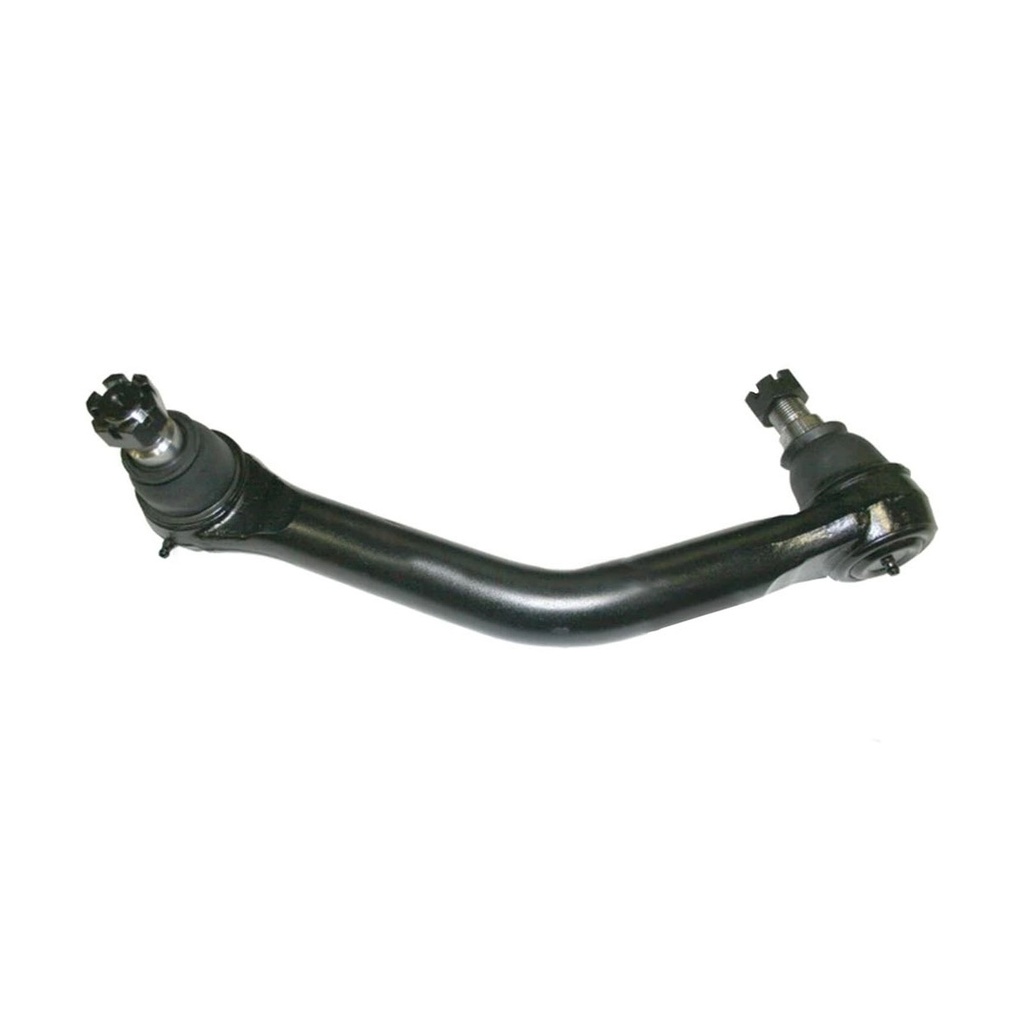

Drag Link 14.40" C to C N-S 1.65" Shaft Male 7/8"-14 Taper Pin - 463.DS7527
Part#: AAA364DS7527
Features and Benefits
- N-S design for steering compatibility
- Forged steel for high steering strength
- 14.40" center to center for arm fitment
- 1-1/8"-12 RH thread for sleeve fit
- 1.65" shaft diameter for arm engagement
- 1.08" taper pin dia for socket seating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Center to Center Length | 14.40 in. |
|---|---|
| Type | N-S |
| Shaft Diameter | 1.65 in. |
| Male/Female | Male |
| Shaft Side Thread (E) | 1-1/8"-12 (RH) |
| Taper Pin Minor Diameter | 1.08 in. |
| Taper Pin Major Diameter | 1.25 in. |
| Taper Pin Length | 1.36 in. |
| Taper Pin Thread | 7/8"-14 |
| Interchange |
|---|
| 1002727 |
| L24VU8126A11 |
| L24VU8126A11L |
The Drag Link measures a 14.40" mounting span, forming a compact connector engineered for Heavy Duty commercial vehicles. Machined to a 1.65" shaft diameter, the male-end rod transfers force smoothly between the opposite arm and axle across daily fleet routes.
