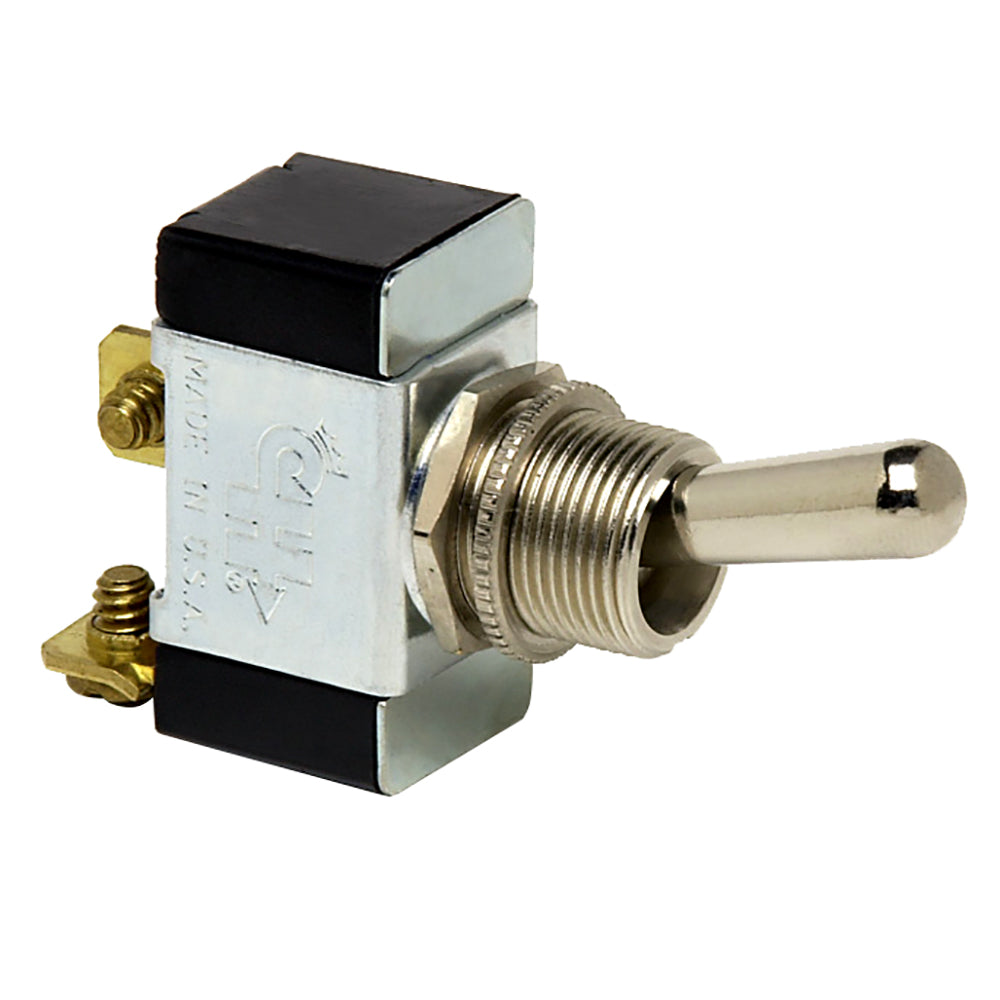

Toggle Switch SPST 25A-12V DC 2 Screw - 5582-BP
Part#: AAA7755582BP
Features and Benefits
- Toggle design for accurate electrical circuit compatibility
- Silver contact material for reliable electrical conductivity
- Handle dimensioned at 0.69" for comfortable operation
- Two screw terminals configuration for a confirmed wiring harness match
- Rated across multiple voltage classes for flexible system compatibility
- Unit weight of 0.10 lbs for straightforward inventory and handling
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 0.10 lbs |
|---|---|
| Switch Type | Toggle |
| Circuitry | SPST |
| Electrical Rating | 25A/12V DC, 15A/24V DC, 10A/36V DC |
| Contact Material | Silver |
| Housing Material | Plastic with Plated Steel Cap |
| Up Position | On |
| Down Position | Off |
| Terminals | 2 Screw Terminals |
| Handle Material | Nickel Plated Brass |
| Handle Type | Standard |
| Handle Size | 0.69 in. |
| Mounting Hardware | Nickel Plated Brass Face Nut |
| Mounting Stem Material | Nickel Plated Brass, O-Ring Seal in Stem |
| Mounting Hole Dimension | 0.47 in. |
| Panel Thickness | Up to 0.25 in. |
| Handle Type | Toggle |
| Interchange |
|---|
| 5582 |
| 5582BX |
The Toggle Switch delivers an SPST circuitry configuration rated 25A at 12V DC, engineered for Heavy Duty commercial electrical applications. Featuring a nickel-plated brass handle and screw terminals, the component mounts securely through a sealed metal stem with an O-ring gasket.
