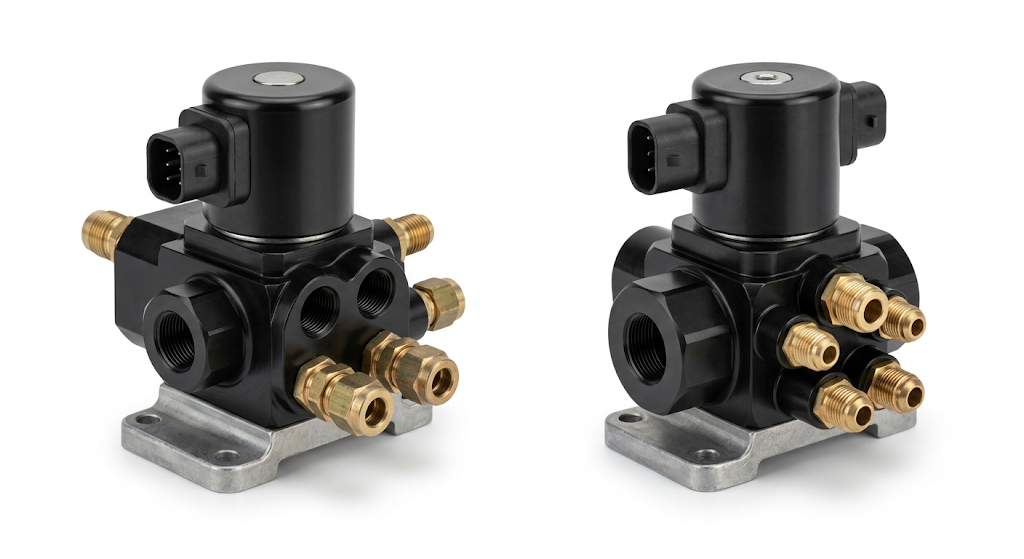

ABS Modulator Valve 12V 159.5 PSI - 170.4721960510OE
Part#: AAA4074721960510OE
Features and Benefits
- Air brake valve designed for accurate cross-platform compatibility
- Rugged build for reliable performance in all weather conditions
- Mounting hole spacing matched for confirmed bracket alignment
- Tyco connector hdscs 4 x 2.8 connection interface for straightforward harness hookup
- Maximum operating pressure rated at 159.5 PSI for confirmed system compatibility
- Unit weight of 1.17 lbs for straightforward inventory and handling
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Distance Between Holes | 2.80 in. x 0.79 in. |
|---|---|
| Electrical Connection | Tyco connector HDSCS 4 x 2.8 |
| Max. Operating Pressure | 159.5 PSI |
| Mounting | 2 x Ø 0.33 in. |
| Port Thread 1 | Flange (Ø25) |
| Port Thread 2 | 1.50 in. - 14 Dry Seal NPTF |
| Thread Size | 0.50 in. - 14 NPTF |
| Protection Class | IP 6K6K / IP 6K9K |
| Rated Current | 2220 mA |
| Temperature Range | -40°F to +176°F |
| Voltage | 12 V |
| Size (L x W x H) | 4.61 in. x 1.81 in. x 3.35 in. |
| Weight | 1.17 lbs. |
No data found.
No data found.
The ABS Solenoid Modulator Valve operates at 12V, rated to 159.5 psi maximum pressure for Heavy Duty commercial vehicle antilock systems. Measuring 4.61" by 1.81" by 3.35" and weighing 1.17 lbs, the unit resists moisture through a sealed enclosure design.
