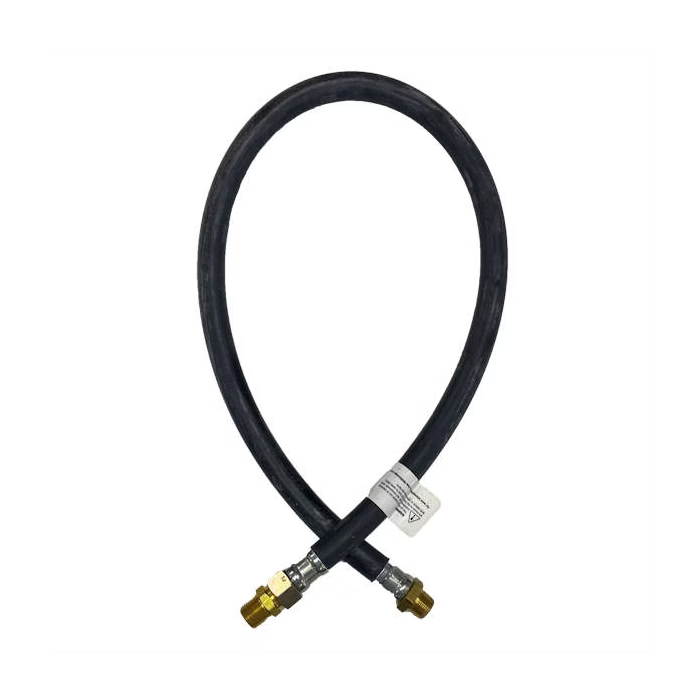

Air Hose Assembly 3/8" ID 24" Rubber - 177.7224

Air Hose Assembly 3/8" ID 24" Rubber - 177.7224

Part#: AAA4107224

Features and Benefits

Air brake hose assembly for 3/8" pipe port connections on Class 6-8 commercial trucks
Rubber body construction for flexibility and long service life in pneumatic brake systems
Inner diameter at 3/8" for consistent compressed air delivery across brake circuits
End 1 fixed at 3/8" pipe for a solid, non-rotating connection to the chassis air port
End 2 swivel at 3/8" pipe for rotational fitment without twisting the hose body at assembly
Overall length at 24" for standard mid-length routing between truck-mounted air components

Select Alternative Part #

177.7224

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Inner Diameter	3/8-inch
Material	Rubber
End 1	1 Fixed 3/8 in. Pipe
End 2	1 Swivel 3/8 in. Pipe
Overall Length	24-inch
Pipe Size	3/8-inch

Interchange

146024
16624
453224
ATM1777224
E858024BK
WA015134

No data found.

The Rubber Air Hose Assembly features a 3/8" inner diameter and stretches 24" in overall length, delivering dependable performance across Heavy Duty commercial vehicle applications. Constructed from durable rubber, one end provides a fixed pipe connection while the opposite offers a swivel joint for flexible routing.
