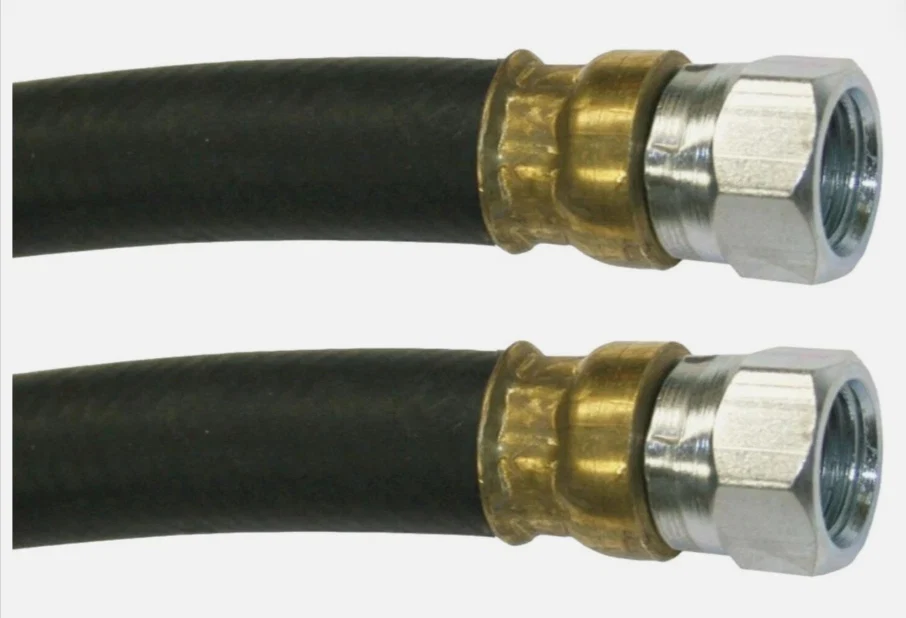

Air Hose Assembly 3/8" ID 28.00" 2 Female Swivels 3/8" SAE Fitting Rubber - 177.7428

Air Hose Assembly 3/8" ID 28.00" 2 Female Swivels 3/8" SAE Fitting Rubber - 177.7428

Part#: AAA4107428

Features and Benefits

Air hose assembly with SAE female swivel ends for standard brake circuit connections on commercial trucks
Rubber construction for durability and flexibility in under-chassis pneumatic brake environments
Inner diameter at 3/8" for consistent compressed air capacity across brake valve and relay circuits
Both ends in 3/8" SAE female swivel for rotational fitment at installation without hose body twist
Connection type in SAE for compatibility with OE-style brake hardware on major truck platforms
Overall length at 28" for mid-reach routing between relay valves and adjacent air brake components

Select Alternative Part #

177.7428

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Inner Diameter	3/8 in.
End 1	3/8 in. SAE Female Swivel
End 2	3/8 in. SAE Female Swivel
Number of Female Swivels	2.00
Connection Type	SAE
Overall Length	28.00 in.
Material	Rubber
Weight	0.70 lbs.
Dimensions	29.00 in. x 1.00 in. x 1.00 in.
Connection Size	3/8 in. SAE
Swivel	Swivel (Swl)
Type	Air Hose Assembly

No data found.

The Rubber Air Hose Assembly is built for Heavy Duty commercial vehicle applications, featuring a 3/8" inner diameter with dual 3/8" SAE female swivel ends on both connections. Measuring 28" in overall length, the flexible rubber construction ensures dependable airflow transfer across demanding service environments.
