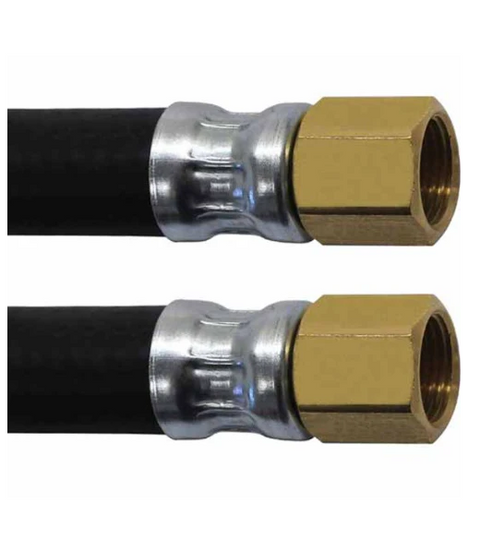

Air Hose 3/8" ID 36.00" SAE Swivel 3/8" SAE Fitting Rubber - 177.7436

Air Hose 3/8" ID 36.00" SAE Swivel 3/8" SAE Fitting Rubber - 177.7436

Part#: AAA4107436

Features and Benefits

Air hose assembly with SAE swivel fittings for standard brake circuit connections on commercial vehicles
Rubber construction for flexibility and long-term performance in pneumatic under-truck environments
Inner diameter at 3/8" for consistent compressed air delivery at standard brake system operating pressures
Both ends in 3/8" SAE female swivel for rotation-free fitment at both connection points during assembly
Overall length at 36" for medium-reach routing between relay valves and brake actuator mounting positions
Weight at 0.80 lbs. with inlet and outlet both at 3/8" for a symmetrical, easy-to-position hose layout

Select Alternative Part #

177.7436

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Weight	0.80 lbs.
Dimensions	10.00 in. x 10.50 in. x 1.50 in.
Inlet Size	3/8 in.
Outlet Size	3/8 in.
Overall Length	36.00 in.
Connection Type	SAE Swivel
Inner Diameter	3/8 in.
Material	Rubber
Number of Swivels	2 Female Swivels
Fitting Size	3/8 in. SAE

Interchange

146536
177HRA0381
ATM1777436

No data found.

The Rubber Air Hose delivers Heavy Duty performance across a 36" overall length, making it well-suited for demanding commercial vehicle applications. Constructed from durable rubber, the hose features dual female SAE swivel connections for secure, leak-resistant coupling. An inner diameter of 3/8" ensures consistent, reliable airflow throughout operation.
