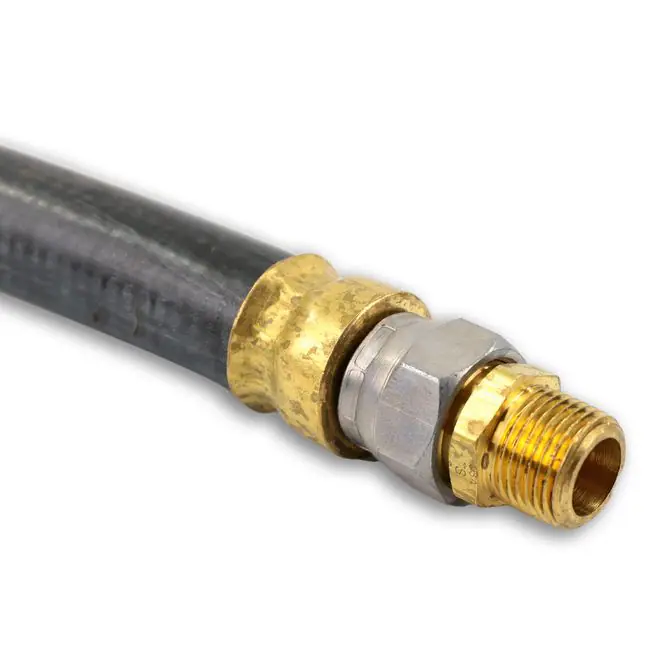

Air Hose 0.5" ID 20.00" Fixed x Swivel 225 psi - RH16320
Part#: AAA41016320
Features and Benefits
- Rubber air brake hose assembly for factory-crimped connections in commercial truck brake systems
- Resistance to gas, diesel, oil, and commonly used chemicals for durability in under-chassis environments
- Inner diameter at 1/2" for high-volume air flow capacity in primary brake supply circuit routing
- Connection type in 3/8" NPTF swivel with fixed end for alignment flexibility at both port positions
- Maximum operating pressure at 225 PSI with minimum burst at 900 PSI for reliable brake circuit safety
- Operating temperature range from -40°F to 212°F for year-round brake system performance in all climates
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Inner Diameter | 0.5 in. |
|---|---|
| Minimum Burst Pressure | 900 PSI |
| End 1 Style | Fixed |
| End 1 Thread Diameter | 0.37 x 18.00 in. |
| End 2 Style | Swivel |
| End 2 Thread Diameter | 0.37 x 18.00 in. |
| Overall Length | 20.00 in. |
| Maximum Operating Pressure | 225 PSI |
| Maximum Operating Temperature | 212°F |
| Minimum Operating Temperature | -40°F |
| Resistant To | Gas, diesel, oil and commonly used chemicals |
| Connection Type | 3/8 in. NPTF, 1 Swivel |
| Construction | Rubber Air Brake Hose Assembly, Factory Crimped |
| Swivel End Adapters | Included |
| Operating Temperature Range | -40°F to 200°F |
| Interchange |
|---|
| 1238120 |
| 148020 |
| 16320 |
| 16320M1D |
| 1777052 |
| 177782 |
| 1777820 |
| 1812066 |
| 21269 |
| 28236620 |
| 288133 |
| 452120 |
| 5005962 |
| E858220 |
| E858220BK |
| GTA1238F20 |
| HAB820C |
| HDX16320 |
| HE0820 |
| JH0820 |
| M3767 |
| MIR16320 |
| R95550520 |
| R95550520BK |
| S28227 |
| TDAR95550520BK |
| W86539 |
No data found.
The Rubber Air Brake Hose Assembly delivers dependable Heavy Duty performance with a 1/2" inner diameter and 20.00" overall length. Factory crimped construction features one fixed end alongside a swivel end adapter, both rated to 225 psi maximum operating pressure. Resistant to gas, diesel, oil, and commonly used chemicals across a wide temperature range.
