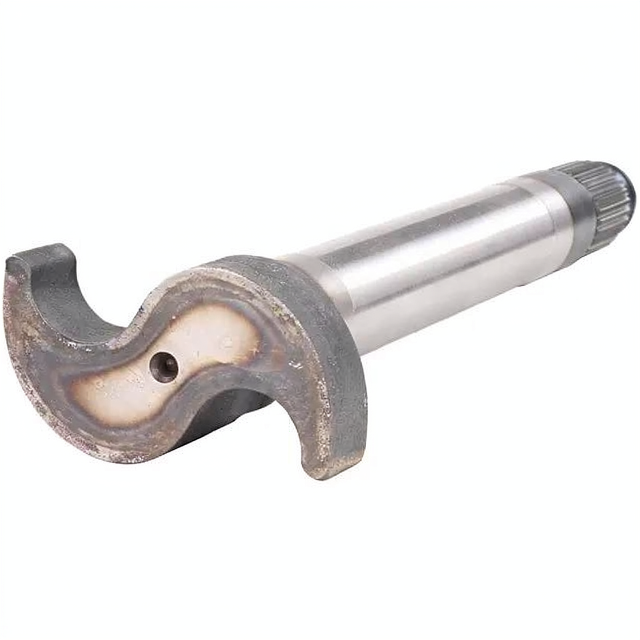

Camshaft Left Hand 1.19" Q+ Head 7.72" 1.50 in.-28 1.50" Journal - 122.280723.01
Part#: AAA800280723.01
Features and Benefits
- Left-hand air brake camshaft for LH axle position on Meritor Q Plus drum brake configurations
- Head type with 1.188" profile for direct engagement with Meritor Q Plus brake head geometry
- Spline specification of 1.500"-28 for correct slack adjuster and drive connection engagement
- Journal diameter at both ends for correct bearing support in compatible camshaft bracket bores
- Camshaft length suited to 7.719" axle position spacing on compatible Meritor Q Plus assemblies
- Hardware kit reference for sourcing correct companion installation hardware for this camshaft
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Head Type | 1.19 in. Meritor Q+ |
|---|---|
| Length (L) | 7.72 in. |
| Splines | 1.50 in.-28 |
| Journal Dia. (A) | 1.50 in. |
| Journal Dia. (B) | 1.50 in. |
| Hardware Kit(s) | 31X1046 |
| Interchange |
|---|
| 04480772 |
| 12228072301 |
| 18501 |
| 2210L7396 |
| 4480772 |
| CS40172 |
| E9645 |
| L3039 |
| M3108L |
No data found.
The Camshaft left-hand design features a Meritor Q+ head type with 1.500"-28 splines, engineered for reliable brake actuation on Heavy Duty commercial vehicle axle applications. The component delivers consistent torque transfer and dependable performance across a wide range of trailer and truck platforms.
