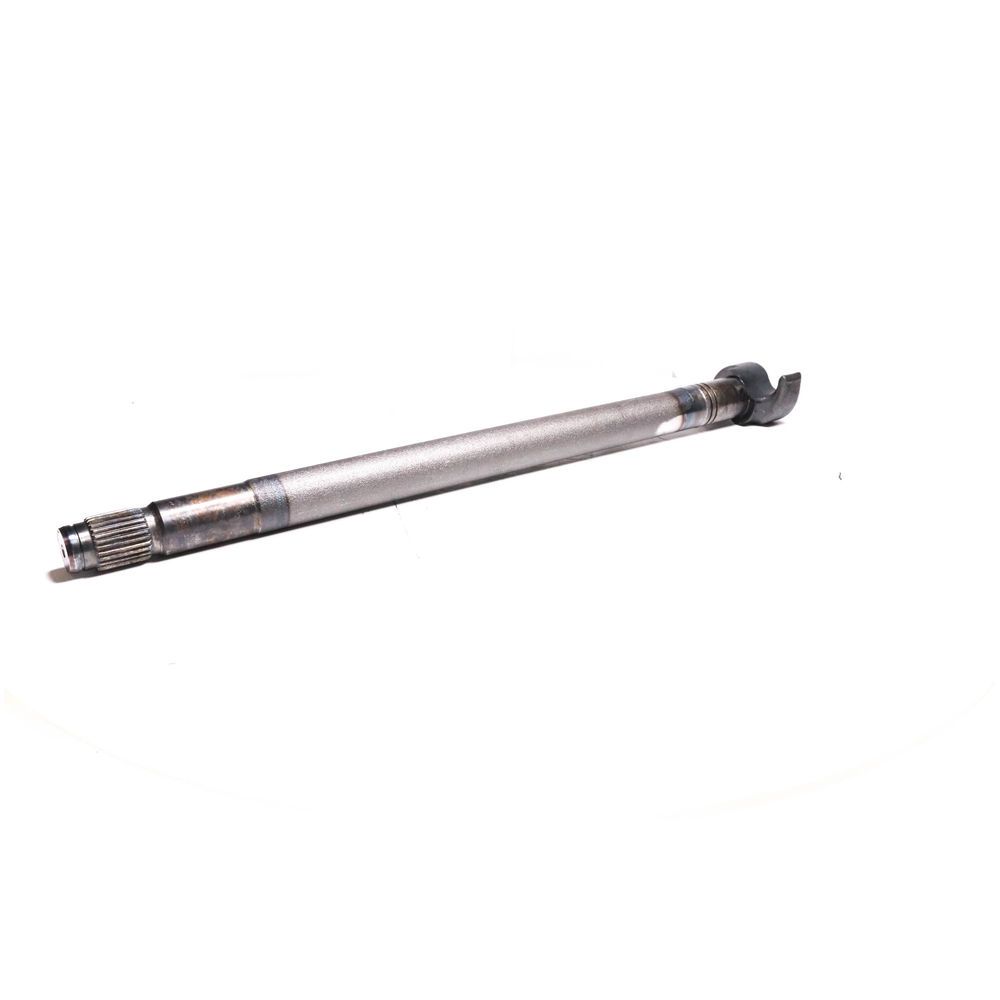

Camshaft Left Hand 1.00" Q+ Head 24.06" 1.50 in.-28 1.50" Journal - 122.282402.03
Part#: AAA800282402.03
Features and Benefits
- Left-hand air brake camshaft for LH axle position on Meritor 15" Q Plus brake configurations
- Head type with 1.000" profile for direct engagement with Meritor 15" Q Plus brake head geometry
- Spline specification of 1.500"-28 for correct slack adjuster and drive connection engagement
- Journal diameter at both ends for correct bearing support in compatible camshaft bracket bores
- Extended camshaft length suited to 24.060" LH spread-axle position spacing on Meritor Q Plus
- Hardware kit references for sourcing correct companion installation hardware for this camshaft
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Length | 24.06 in. |
|---|---|
| Head Type | 1.00 in. Meritor 15.00 in. Q+ |
| Length (L) | 24.06 in. |
| Splines | 1.50 in.-28 |
| Journal Dia. (A) | 1.50 in. |
| Journal Dia. (B) | 1.50 in. |
| Hardware Kit(s) | 31X1032, 31X1036 |
| Interchange |
|---|
| 04932422 |
| 12228240203 |
| 17725 |
| 2210E6869 |
| 2210V8160 |
| 4932422 |
| CS41114 |
| E14820 |
| E2445B |
| E5510 |
| L3117 |
| M3172L |
| M4012L |
No data found.
The Camshaft left-hand design features a Meritor 15" Q+ head type with 1.500"-28 splines, engineered for reliable brake actuation on Heavy Duty commercial vehicle axle applications. The component delivers consistent torque transfer and dependable performance across a wide range of trailer platforms.
