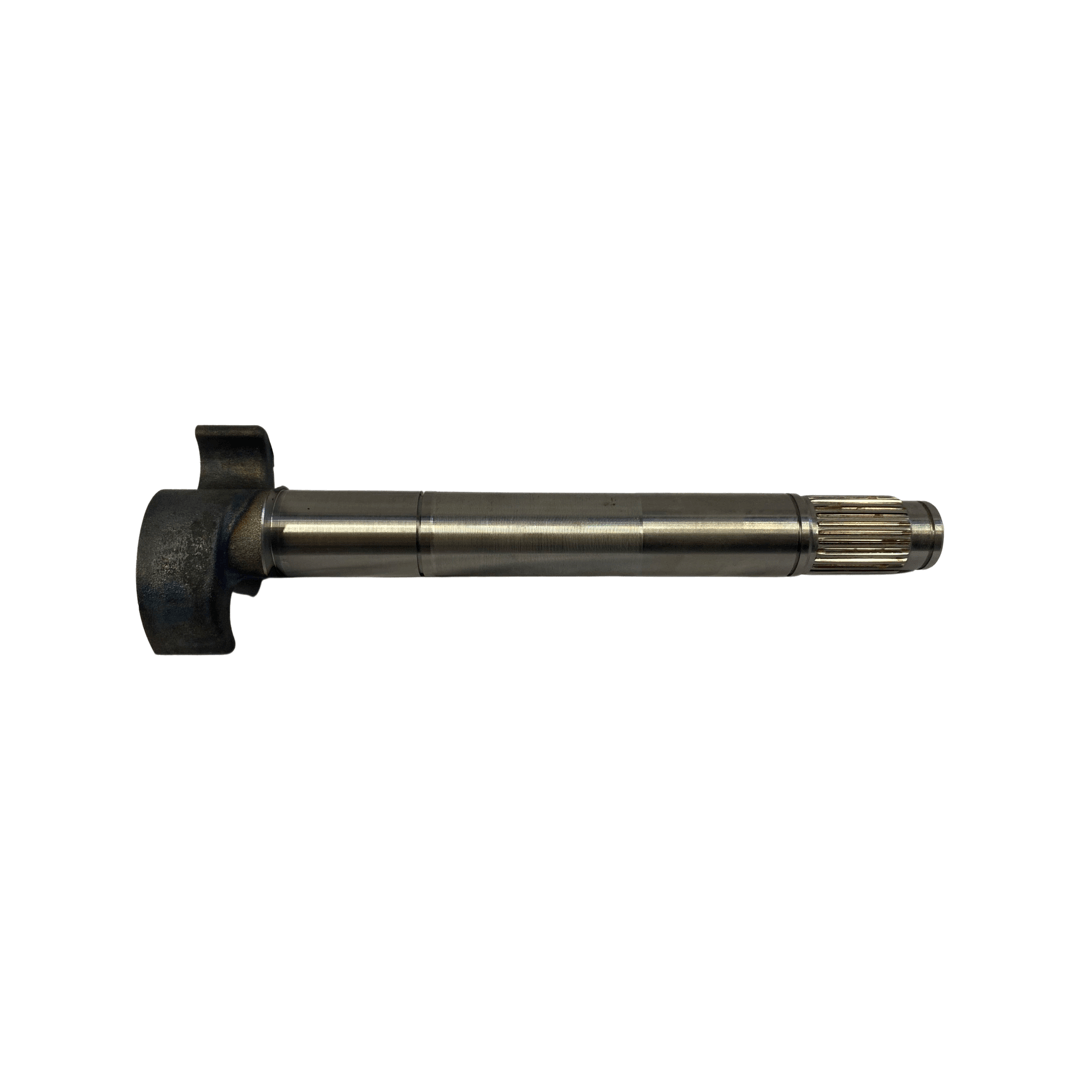

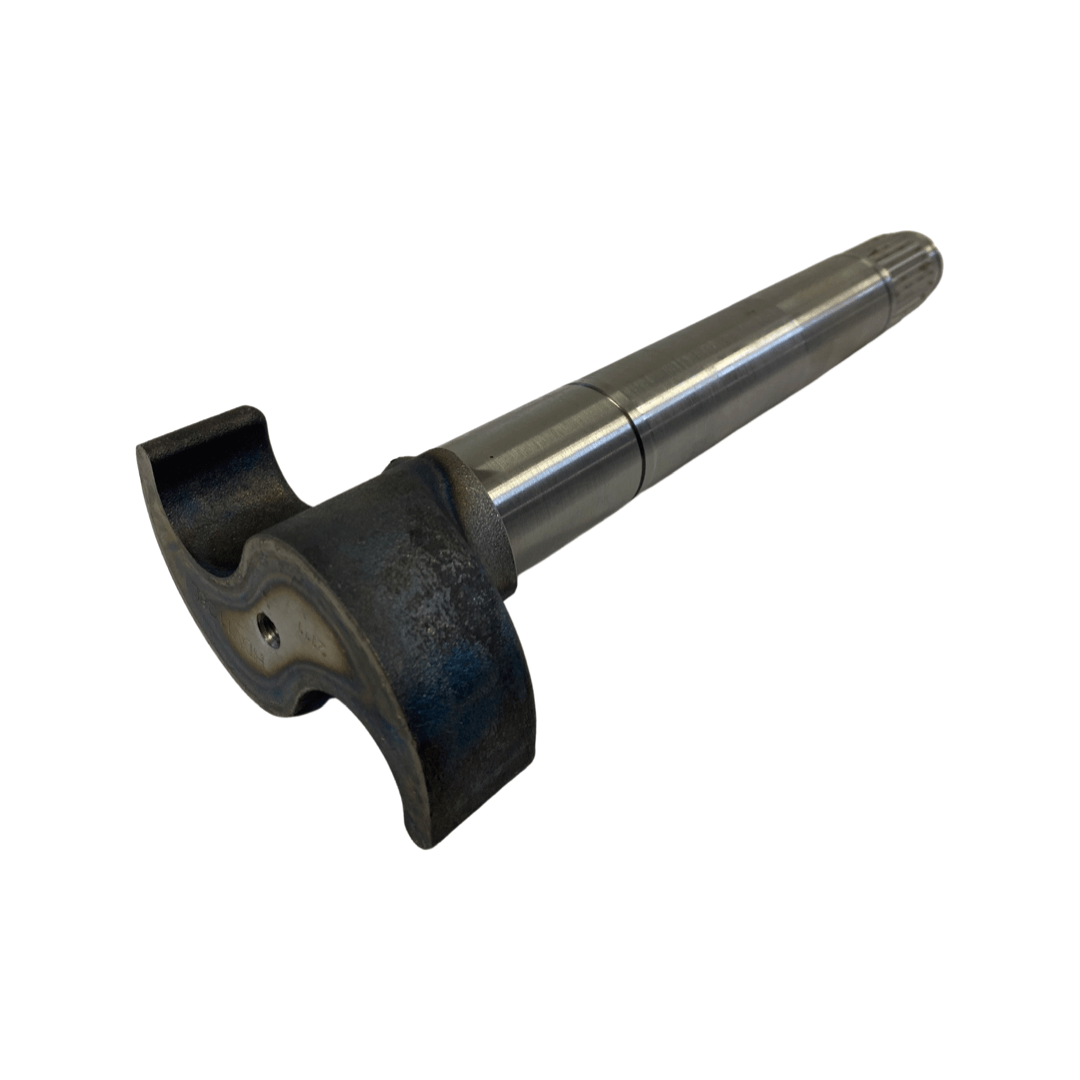

Camshaft Left Hand 1.125" Extended Life Head 11.03" 1.50 in.-28 - 125.281102.01
Part#: AAA800281102.01
Features and Benefits
- Left-hand air brake camshaft for LH axle position on Hendrickson HXS extended life configurations
- Head end with 1.125" extended life profile for Hendrickson HXS brake head engagement
- Spline specification of 1.500"-28 for correct slack adjuster and drive connection engagement
- Journal diameter at both ends for correct bearing support in compatible camshaft bracket bores
- Camshaft total length suited to 11.031" LH axle position spacing on HXS brake assemblies
- Multiple hardware kit references for sourcing correct Hendrickson HXS installation hardware
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Head End | 1.125in Extended Life, Hendrickson HXS |
|---|---|
| Length (L) | 11.03 in. |
| Length (A) | 2.31 in. |
| Length (B) | 8.69 in. |
| Splines | 1.50 in.-28 |
| Journal Dia. (A) | 1.50 in. |
| Journal Dia. (B) | 1.50 in. |
| Hardware Kit(s) | 31X1060, 31X1096 |
| Interchange |
|---|
| 04871122 |
| 12528110201 |
| 4871122 |
| CS41764 |
| E11866 |
| L3445 |
| M4009L |
| R607325 |
| S246361L |
No data found.
The Camshaft left-hand design features a Hendrickson HXS Extended Life head type with 1.500"-28 splines, engineered for reliable brake actuation on Heavy Duty commercial vehicle axle applications. The component delivers consistent torque transfer and dependable performance across a wide range of trailer and truck platforms.
