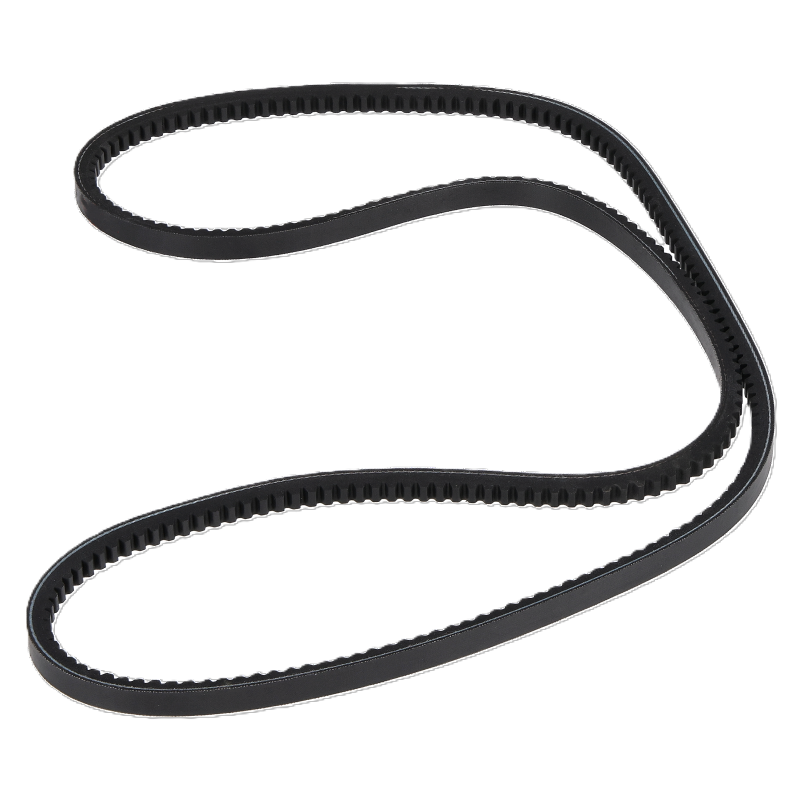

Automotive V-Belt 13A Profile 1334 mm EPDM Polyester - 815.17525
Part#: AAA30117525
Features and Benefits
- Automotive V-belt type for single-accessory drive applications on commercial engines
- EPDM belt material with polyester cord for superior heat resistance and tensile strength
- Cogged construction with 36-degree angle and cross section 13A for reduced flex fatigue
- SAE J636 compliant with notched profile type 17 for verified on-highway belt performance
- Effective length of 1334 mm ensures precise fitment and correct belt tension at installation
- OE performance grade with 1343 mm outside circumference for direct original-equipment fitment
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Angle | 36 (DD) |
|---|---|
| Belt Material | EPDM |
| Color | Black |
| Construction | Cogged |
| Cord Material | Polyester |
| Cross Section Designation | 13A |
| Effective Length | 1334 mm |
| Grade Type | OE Performance |
| Notched | Yes |
| Outside Circumference | 1343 mm |
| Profile Type | 17 |
| SAE Standard | J636 |
| Strand Quantity | 1 |
| Thickness | 0.35 in. |
| Top Cogged | No |
| Top Width | 13.50 in. |
| Belt Type | Automotive V-Belt |
| Interchange |
|---|
| 003.992.62.92 |
| 1119044 |
| 11502375 |
| 13A1335 |
| 16000186D |
| 17525 |
| 17525MK |
| 200008780 |
| 2028B89H17 |
| 208043502525 |
| 2310001046 |
| 2310001051 |
| 2483848 |
| 2483912 |
| 252145 |
| 256330 |
| 256378 |
| 256656 |
| 259525 |
| 27000233 |
| 2P4191 |
| 3039199 |
| 3040313 |
| 312515R1 |
| 312747M1 |
| 312990604 |
| 358322C91 |
| 3900759 |
| 3902101 |
| 3934347 |
| 3N4079 |
| 3S8447 |
| 3S8448 |
| 4009497 |
| 4021269 |
| 4021816 |
| 4023405 |
| 4023940 |
| 512747M1 |
| 531371M1 |
| 5994962 |
| 633337 |
| 680614 |
| 680614K11 |
| 680614R1 |
| 680614R11 |
| 680614R2 |
| 680614R22 |
| 74021269 |
| 74023405 |
| 7W3896 |
| 843198M1 |
| 856518 |
| 88GB29301P24 |
| 9433910 |
| 9525 |
| 967132 |
| 967194 |
| 967262 |
| B17525A |
| B2614B554 |
| BH175 |
| C41407 |
| C629028C30 |
| C8HA8620E |
| C8HA8620E1 |
| C8HZ8620B |
| C9TE8620G |
| C9TZ8620D |
| D0AE8620J |
| D0AZ8620E |
| D0HA8620AG |
| D0HA8A615V |
| D11023685 |
| D11023693 |
| D11023694 |
| D20E8620AGA |
| D2AE8620BRA |
| D2ZE8620SA |
| D3OE8620AGA |
| E6HT8A615AA |
| E6TA8620EA |
| E6TZ8620C |
| E7TA8620BBA |
| E7TZ8620E |
| EBJ8620B |
| F2HT8A615FA |
| M12570018 |
| MA182216 |
| MF6515 |
| REMF6510 |
| SU28901 |
| V1090829 |
| V1119044 |
The Belt automotive V-belt features cogged EPDM construction with a polyester cord, engineered to OE performance standards for reliable auxiliary drive on commercial vehicles. Meeting SAE J637 specifications, the unit delivers consistent power transmission and dependable output across a wide range of engine and accessory configurations.
