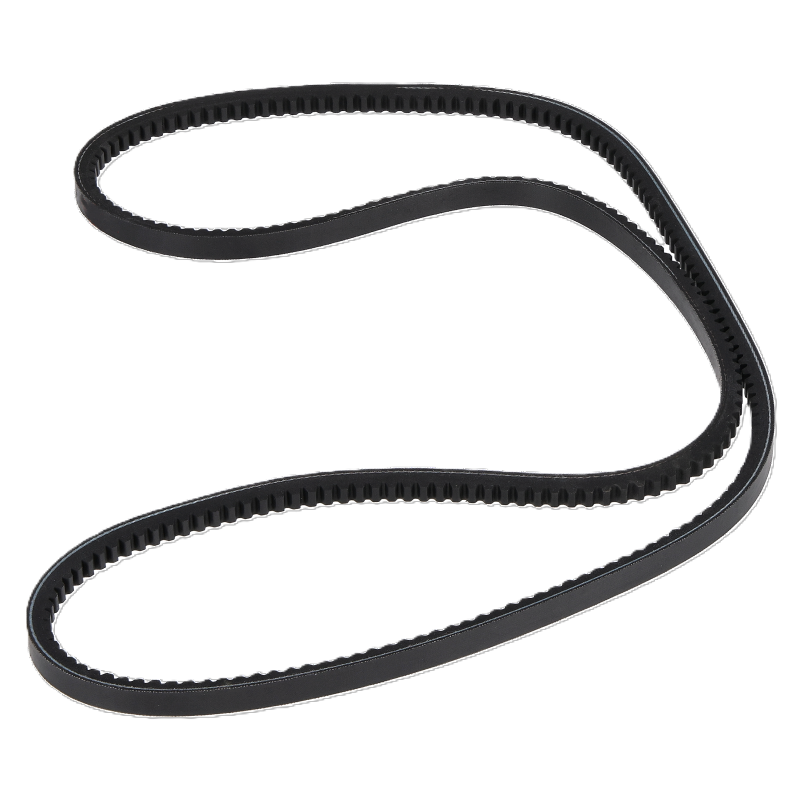

Automotive V-Belt 15A Profile 1448 mm EPDM Polyester - 22570
Part#: AAA30122570
Features and Benefits
- Automotive V-belt type for single-accessory drive applications on commercial engines
- EPDM belt material with polyester cord for superior heat resistance and tensile strength
- Cogged construction with 36-degree angle and cross section 15A for reduced flex fatigue
- SAE J637 compliant with notched profile type 22 for verified on-highway belt performance
- Effective length of 1448 mm ensures precise fitment and correct belt tension at installation
- OE performance grade with 57.57 in. outside circumference for direct original-equipment fitment
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Angle | 36 (DD) |
|---|---|
| Belt Material | EPDM |
| Color | Black |
| Construction | Cogged |
| Cord Material | Polyester |
| Cross Section Designation | 15A |
| Effective Length | 1448 mm |
| Grade Type | OE Performance |
| Notched | Yes |
| Outside Circumference | 57.57 in. |
| Profile Type | 22 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 10.50 in. |
| Top Cogged | No |
| Top Width | 17.00 in. |
| Belt Type | Automotive V-Belt |
| Interchange |
|---|
| 134787 |
| 178595 |
| 1800001C91 |
| 1956449 |
| 201314 |
| 2077491 |
| 208040018 |
| 211744533 |
| 22570 |
| 22574 |
| 27101663 |
| 3040367 |
| 326998R1 |
| 326998R11 |
| 3547830C1 |
| 412021757 |
| 412121757 |
| 500017853 |
| 5127720 |
| 586328C1 |
| 586329C91 |
| 59947C1 |
| 670740C1 |
| 6L9903 |
| 6L9904 |
| 6N7135 |
| 700224 |
| 700224A7 |
| 770381C1 |
| 911271 |
| 922222 |
| 9L304 |
| 9L6639 |
| 9L6640 |
| 9N1324 |
| A64206 |
| B22570A |
| B22573A |
| B22574A |
| BH1735 |
| C3TA8620H |
| C3TZ8620C |
| D11024828 |
| GT22572 |
| L74972 |
| MD3440 |
| OTR22570 |
| PP22570 |
| TR22570 |
| V1091033 |
| XD47563 |
The Belt automotive V-belt features cogged EPDM construction in a profile 22 configuration with a polyester cord, engineered to OE performance standards for reliable auxiliary drive on commercial vehicles. Meeting SAE J637 specifications, the unit delivers consistent power transmission and dependable output across a wide range of applications.
