Automatic Slack Adjuster Drive 10 Spline 1.50" - 133.1031
Part#: AAA6011331031
Features and Benefits
- Drive axle automatic slack adjuster for reliable brake lining wear compensation during service
- Angled arm configuration accommodates offset camshaft orientations on drive axle assemblies
- Dual arm length option provides installation flexibility across different drive axle geometries
- Clearance sensing automatically maintains correct brake shoe gap for drive axle performance
- Spline profile engineered for compatible low-tooth-count drive axle camshaft engagement
- Unclevised end with bushing bore for direct camshaft installation on drive brake assemblies
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.40 |
|---|---|
| Arm Length | 5.50 in. or 6.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 10 |
| Brake Size | 16.50 in. |
| Application | Drive |
| Sensing Type | Clearance |
| Type | Unhanded |
| Angle | 34 degrees |
| Bushing Inside Diameter | 0.625 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 05661 |
| 1694310C91 |
| 1694312C91 |
| 1694313C91 |
| 1694318C91 |
| 1694319C91 |
| 25QD410P4 |
| 317166 |
| 3946255 |
| 40010143 |
| 40910733 |
| 4W8045 |
| 8235R806022A |
| ABPN42AS40010143 |
| FLT40010143 |
| FX1331031 |
| HRR806022A |
| MERR806022A |
| R806022A |
| ROR806022A |
| SA10103 |
| TDAR806022A |

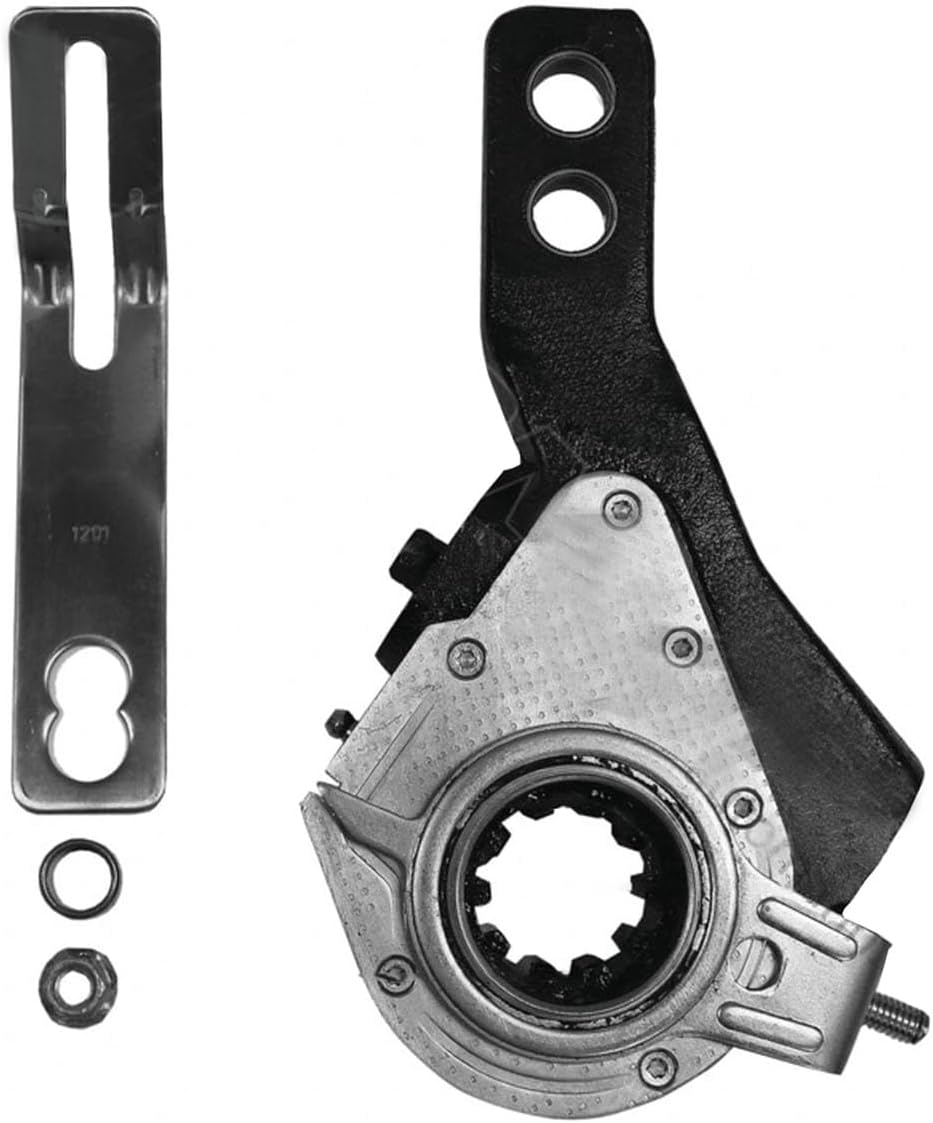

The Slack Adjuster is an unhanded clearance-sensing design with a 5.5" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
