Automatic Slack Adjuster Drive 28 Spline 1.50" - 135.2835
Part#: AAA6011352835
Features and Benefits
- Drive axle automatic slack adjuster with angled arm for offset camshaft brake configurations
- Clearance sensing provides automatic compensation for brake lining wear on drive axle systems
- Angled arm positions the push rod connection accurately on offset drive axle brake assemblies
- Spline profile delivers positive, slip-resistant torque transfer to drive axle brake camshafts
- Unclevised end with bushing bore for direct drive axle camshaft installation without hardware
- Arm length calibrated for accurate push rod stroke on standard drive axle brake chamber positions
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.35 |
|---|---|
| Slack Spline Count | 28 |
| Arm Length | 5.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Brake Size | 16.50 in. |
| Type | Unhanded |
| Application | Drive |
| Sensing Type | Clearance |
| Angle | 34 degrees |
| Bushing Inside Diameter | 0.625 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 1694064C91 |
| 1694309C91 |
| 1694317C91 |
| 40010154 |
| 40010154M1D |
| 40910650 |
| 4W8155 |
| 8235M807004 |
| M807004 |
| TSE07255A |
| ZZ40010154 |

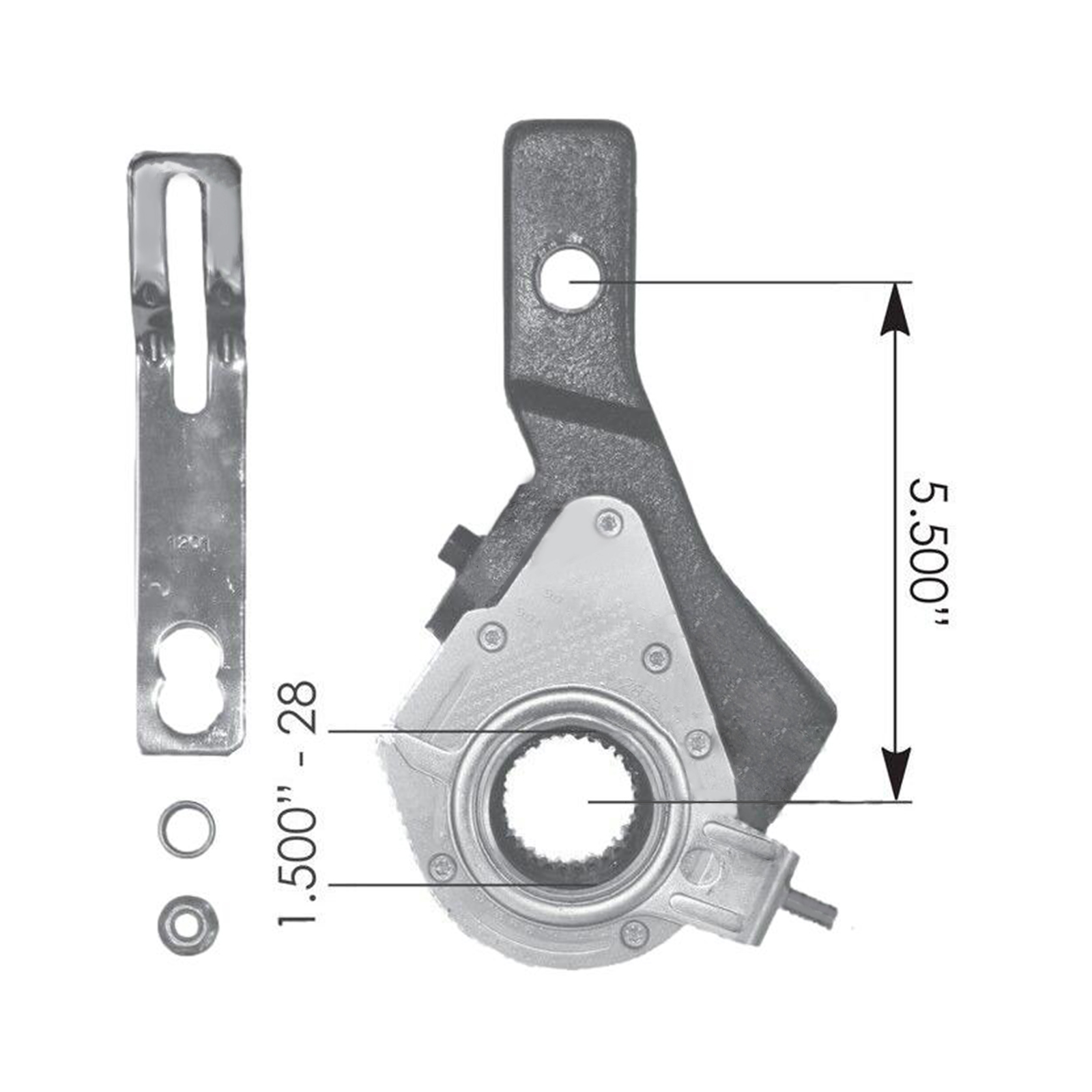

The Slack Adjuster is an unhanded clearance-sensing design with a 5.5" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
