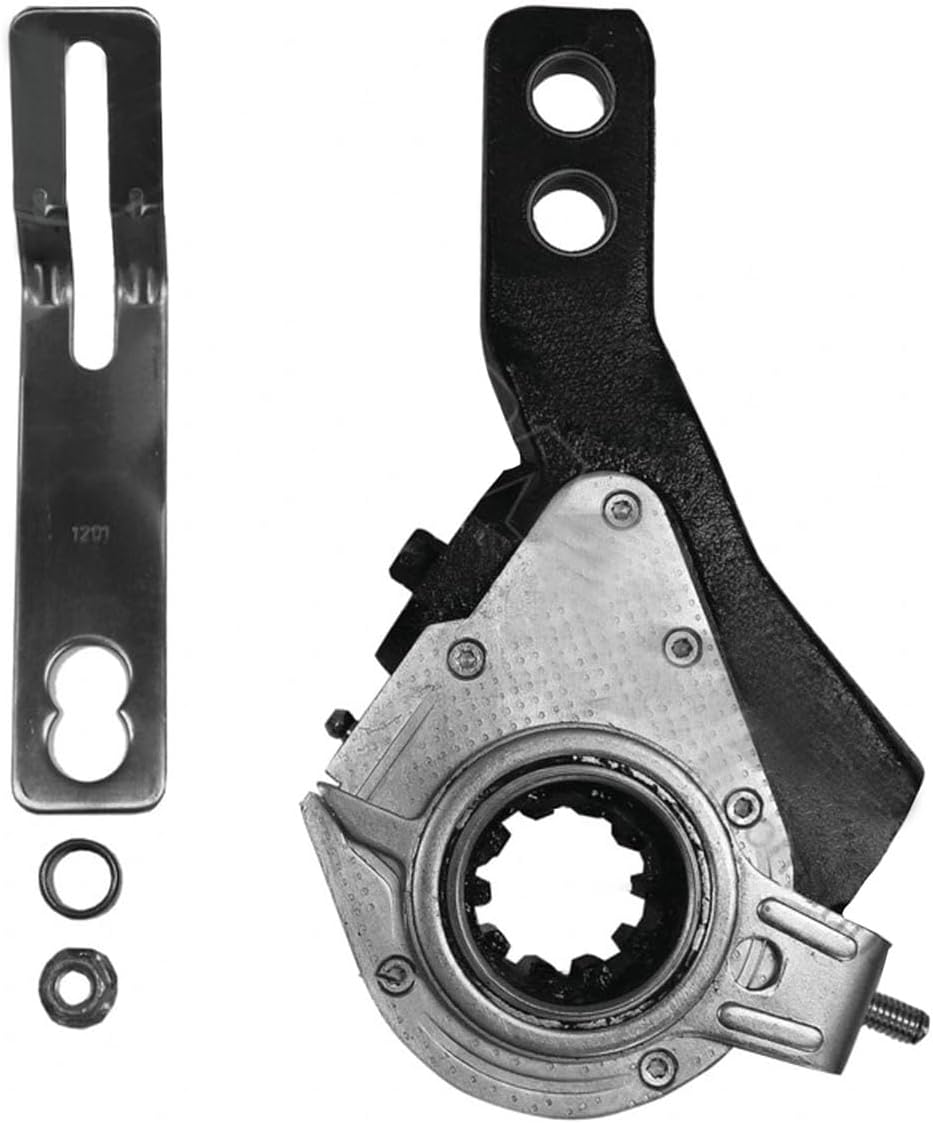

Automatic Slack Adjuster Drive 10 Spline 1.50" - 135.S1031
Part#: AAA601135S1031
Features and Benefits
- Drive axle automatic slack adjuster for angled camshaft brake system configurations
- Angled arm suits the offset push rod geometry of angled drive axle brake assemblies
- Clearance sensing automatically compensates for brake lining wear on drive axle positions
- Spline profile provides compatible engagement for low-count tooth drive axle camshafts
- Arm length delivers consistent lever action for reliable push rod travel on drive axle chambers
- Unclevised end with bushing bore for direct, straightforward drive axle camshaft installation
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.30 |
|---|---|
| Arm Length | 5.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 10 |
| Type | Unhanded |
| Sensing Type | Clearance |
| Brake Size | 16.50 in. |
| Application | Drive |
| Angle | 34 degrees |
| Bushing Inside Diameter | 0.50 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 40020228 |
| 40020228M1D |
| 40920017 |
| M808028 |
| MD40020228 |
| ZZ40020228 |
The Slack Adjuster is an unhanded clearance-sensing design with a 5.5" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
