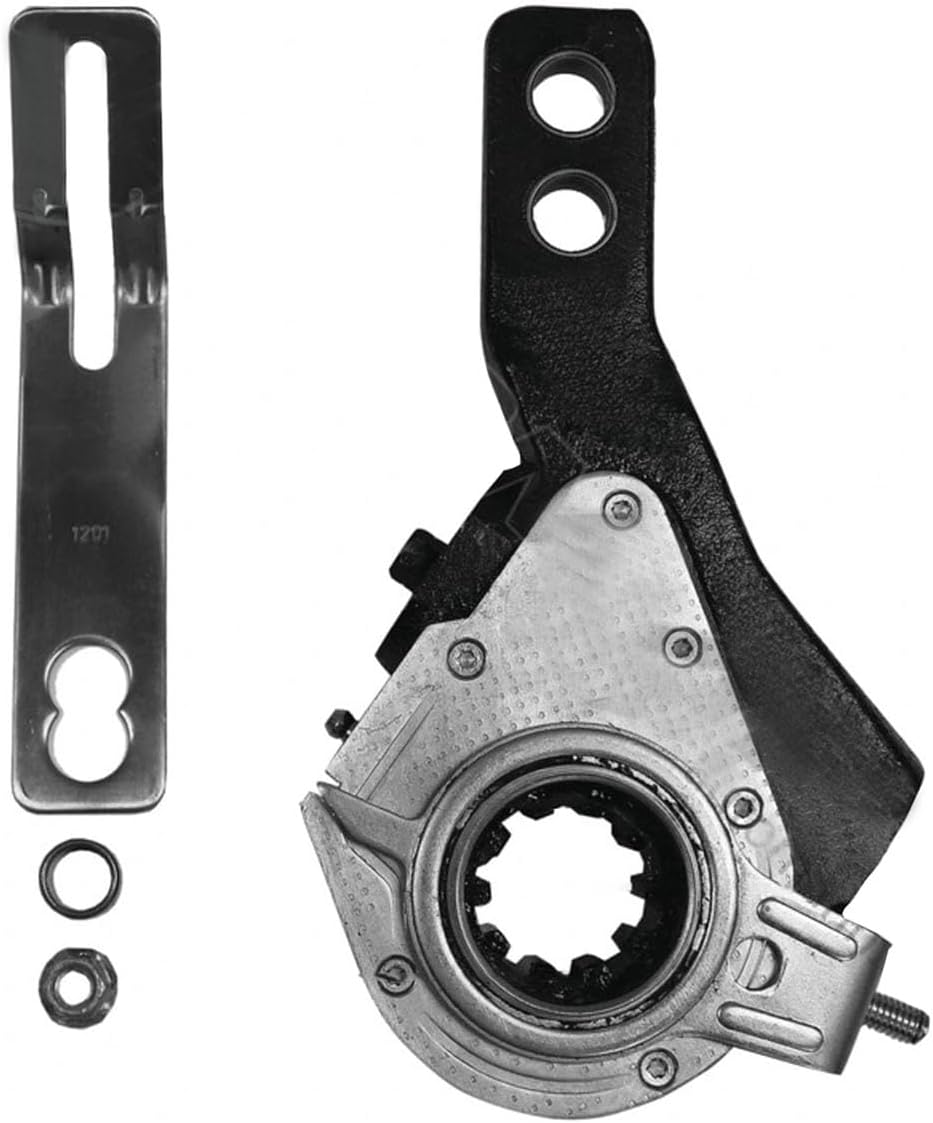

Automatic Slack Adjuster Drive 10 Spline 1.50" - 135.S1031A
Part#: AAA601135S1031A
Features and Benefits
- Drive axle automatic slack adjuster for S and SE series angled camshaft brake configurations
- Clearance sensing type continuously corrects brake shoe gap for consistent drive performance
- Angled arm aligns accurately with offset push rod geometry on drive axle brake assemblies
- Spline profile suited to compatible low-count tooth drive axle camshaft specifications
- Unhanded design supports universal left or right side drive axle installation from one unit
- Unclevised end with bushing bore for direct camshaft connection on S and SE drive brake positions
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.30 |
|---|---|
| Arm Length | 5.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 10 |
| Type | Unhanded |
| Sensing Type | Clearance |
| Brake Size | 16.50 in. |
| Application | Drive |
| Angle | 34 degrees |
| Bushing Inside Diameter | 0.50 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 40020228 |
| 40020228M1D |
| 40920017 |
| M808028 |
| MD40020228 |
| ZZ40020228 |
The Slack Adjuster is an unhanded clearance-sensing design with a 5.5" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
