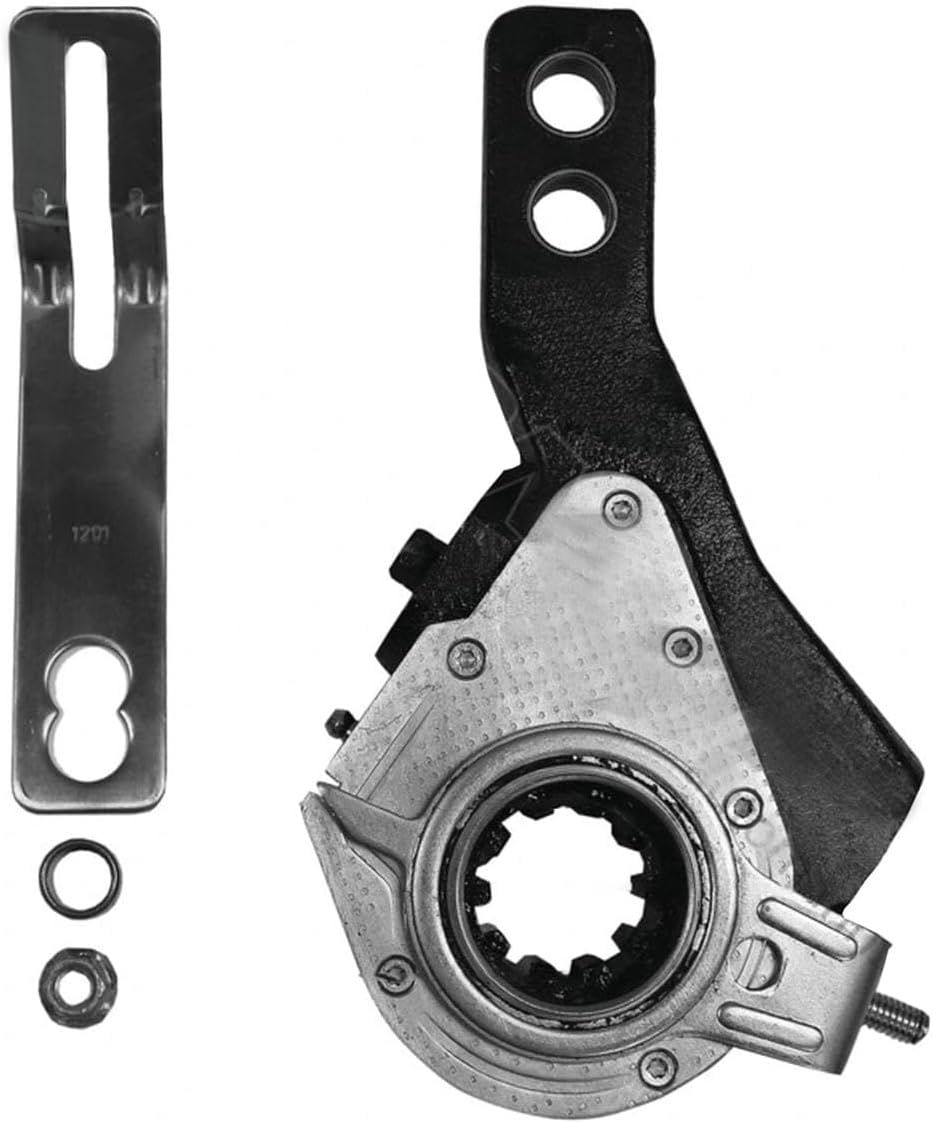

Automatic Slack Adjuster Drive 28 Spline 1.50" - 135.S2830
Part#: AAA601135S2830
Features and Benefits
- Drive axle automatic slack adjuster with longer arm for extended lever geometry configurations
- Longer arm length of 6" provides greater mechanical advantage on drive axle push rod connections
- Angled arm accommodates offset camshaft orientations on drive axle brake assemblies
- Clearance sensing corrects brake shoe wear automatically for sustained drive axle stopping power
- Spline engagement provides reliable torque transfer to standard drive axle brake camshafts
- Unclevised end with bushing bore for direct hardware-minimal drive axle camshaft connection
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.25 |
|---|---|
| Arm Length | 6.00 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 28 |
| Type | Unhanded |
| Brake Size | 16.50 in. |
| Application | Drive |
| Sensing Type | Clearance |
| Angle | 34 degrees |
| Bushing Inside Diameter | 0.50 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 40020234 |
| 40020234M1D |
| 40920023 |
| M808029 |
| MD40020234 |
| TSE07156S |
| ZZ40020234 |
The Slack Adjuster is an unhanded clearance-sensing design with a 6" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
