Kingpin Kit 1.77" x 9.23" Steel Spiral No Ream Left Hand Double Lock Opposite - 460.523B
Part#: AAA404523B
Features and Benefits
- Bushing type of Bronze No Ream Kit for the king pin kit bushing construction
- Kingpin dimensions of 1.771" x 9.23" for correct pin length and diameter fitment

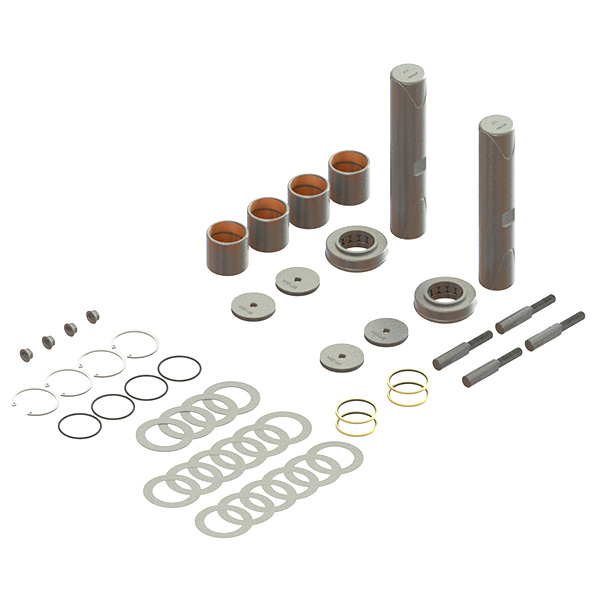

- Kit contents of king pins, thrust bearings, bushings, end plates, lock pins, seal kit, and shim and hardware kit for a complete king pin rebuild solution
- Pin configuration of Double Lock, Opposite Side for the king pin locking arrangement
- Thrust bearing designation of 179Sp2 (Double Lip-Left) (2) for the king pin kit thrust component
- Lock pin designation of 981R-L (4) for the king pin kit locking component
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Bushing | 120A (4) |
|---|---|
| Bushing Type | Bronze No Ream Kit |
| Bushing Type | Steel Spiral No Ream Kit |
| End Plate | 120A (4) |
| Included Components | King Pin (2) |
| Included Components | (2) King Pin |
| Included Components | (1) Thrust Bearing Brt179Sp (Single Lip-Right) |
| Included Components | (1) Thrust Bearing Brt179Sp2 (Double Lip-Left) |
| Included Components | (4) Spiral Bushing And Sleeve Unit |
| Included Components | (2) Thrust Bearing Brt179Sp2 (Double Lip-Left) |
| Included Components | (4) End Plate Ep120A |
| Included Components | (1) Seal Kit Sl120A-Con |
| Included Components | (4) Lock Pin Lp981R-L |
| Included Components | (1) Shim And Hardware Kit Bk120A |
| Included Components | (4) Spiral Bushing Assemblies |
| Kingpin Dimensions | 1.77 in. x 9.23 in. |
| Lock Pin | 981R-L (4) |
| Pin Configuration | Double Lock - Opposite Side |
| Seal Kit | 120A-Con (1) |
| Shim and Hardware Kit | 120A (1) |
| Thrust Bearing | 179Sp2 (Double Lip-Left) (2) |
| Interchange |
|---|
| 300350 |
| 460538 |
| 460538E |
| 460539B |
| 6073300019 |
| 6073300019K |
| 6073300019KZ |
| 6073300119KZ |
| 6073300619 |
| 6073300619K |
| K120A |
| P6073300019KZ |
| R200321 |
| R201330 |
| R202037 |
No data found.
The King Pin kit is a left-hand design compatible with Cascadia platforms, engineered for reliable steering axle articulation on Heavy Duty commercial vehicle applications. Measuring 1.771" x 9.23" dimensions with an opposite-side double lock configuration, the kit delivers consistent structural stability across configurations.
