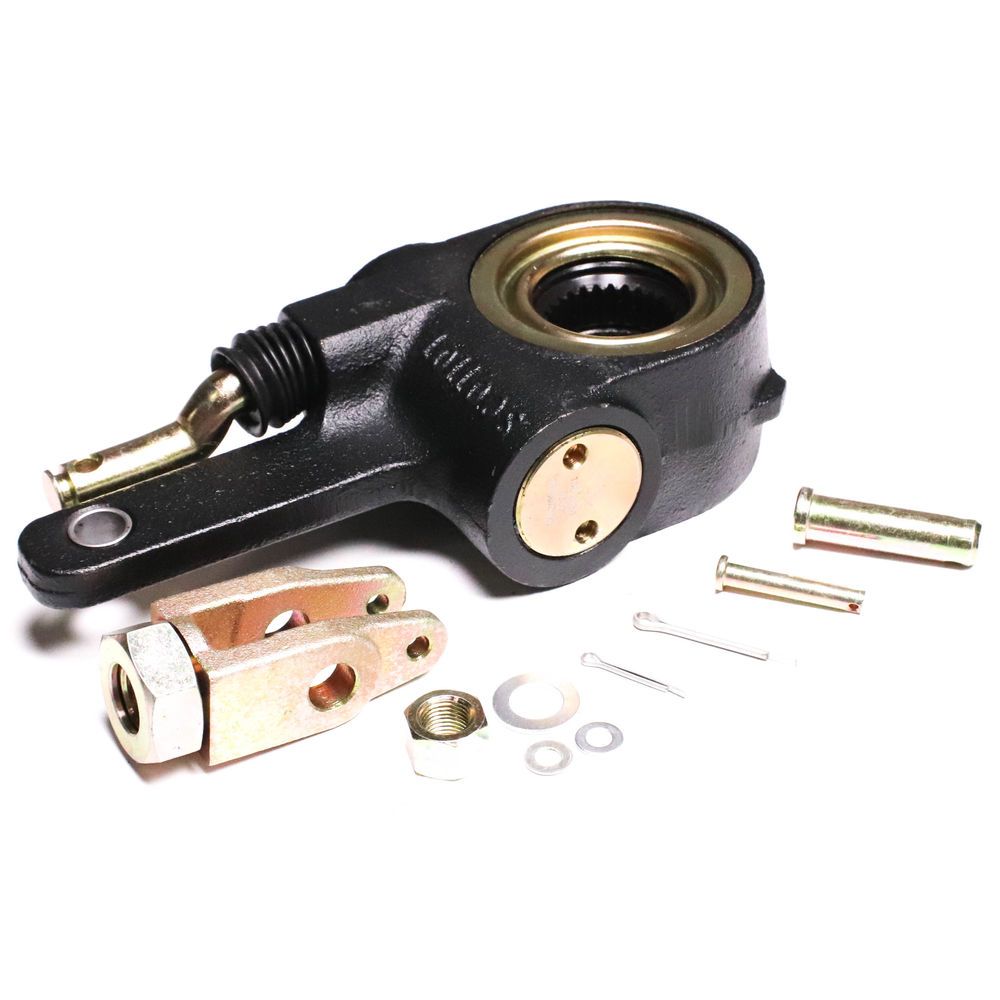

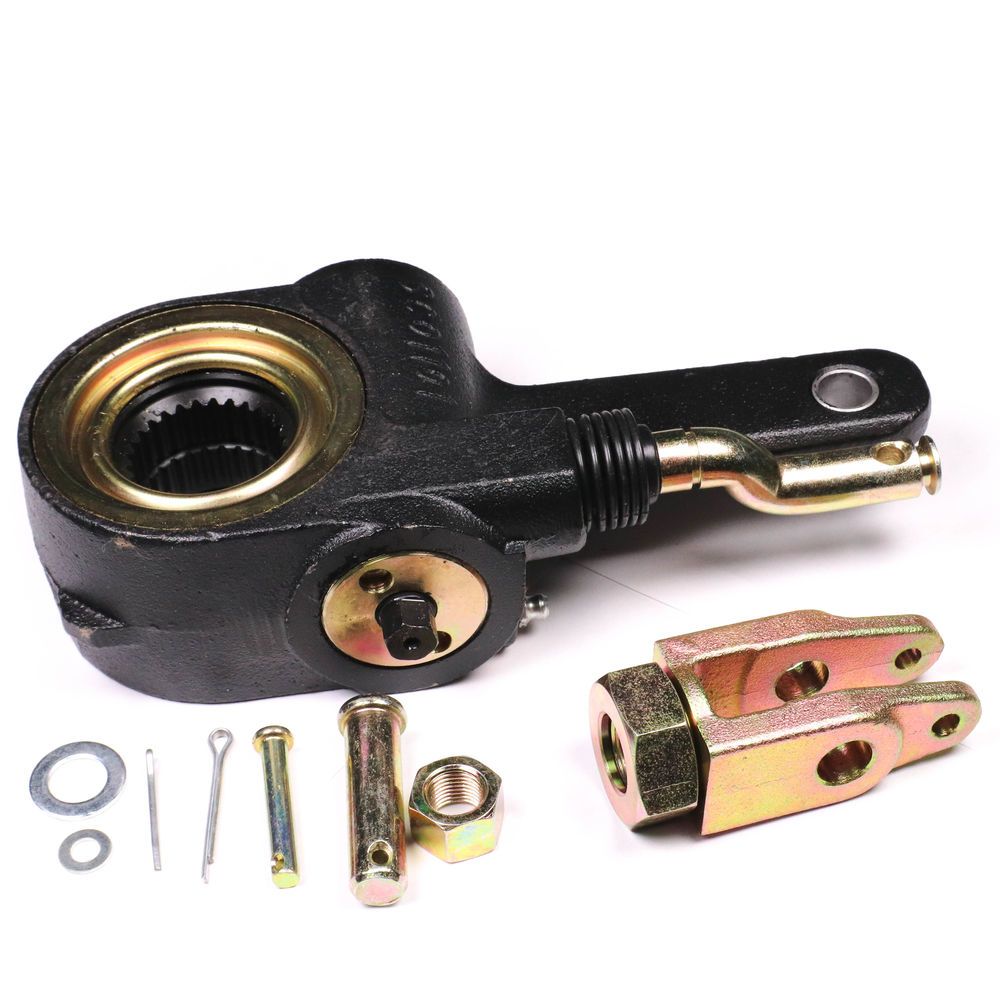

Automatic Slack Adjuster Drive 28 Spline 1.50" - 138.2830
Part#: AAA6011382830
Features and Benefits
- Drive axle slack adjuster with collar lock clevis for positive push rod retention under vibration
- Collar lock design secures the push rod connection on high-vibration drive axle brake positions
- Arm length of 6" provides extended mechanical leverage for drive axle push rod actuation
- Clearance sensing corrects brake shoe wear automatically for sustained drive axle stopping power
- Spline profile delivers positive torque transfer to standard drive axle brake camshaft configurations
- Multiple chamber size compatibility supports broad fitment across varied drive axle brake setups
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 7.26 |
|---|---|
| Clevis Type | Collar Lock Straight |
| Arm Length | 6.00 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 28 |
| Sensing Type | Clearance |
| Brake Size | 16.50 in. |
| Clevis Threads per inch | 18 |
| Clevis Thread Diameter | 0.625 in. |
| Application | Drive |
| Type | Unhanded |
| Bushing Inside Diameter | 0.50 in. |
| Chamber Sizes | Multiple |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 05762 |
| 10600055 |
| 1090340 |
| 1191037 |
| 25QD51P3 |
| 3398AS1041 |
| 3398AS1141 |
| 3820002201 |
| 3947849 |
| 4017A23665 |
| 42521 |
| 5504004 |
| 764010100 |
| 764013509 |
| 8060858 |
| 8084132 |
| A283275M1079 |
| ACF004205828 |
| AS1041 |
| AS1141 |
| E15025 |
| E9HT2314AA |
| F2HS2308DA |
| F8HT2314BA |
| F8HZ2314BA |
| GUNAS1041 |
| GUNAS1141 |
| GUNSA10203 |
| M16WR1332 |
| R21097004 |
| SA1141 |
| ZBRAS1041 |
| ZBRAS1141 |
The Slack Adjuster is an unhanded clearance-sensing design with a collar lock straight clevis and 6" arm, built for automatic adjustment on drive axles of Heavy Duty commercial vehicles. Featuring dependable spline engagement, the component delivers consistent stopping performance across a wide range of transport configurations.
