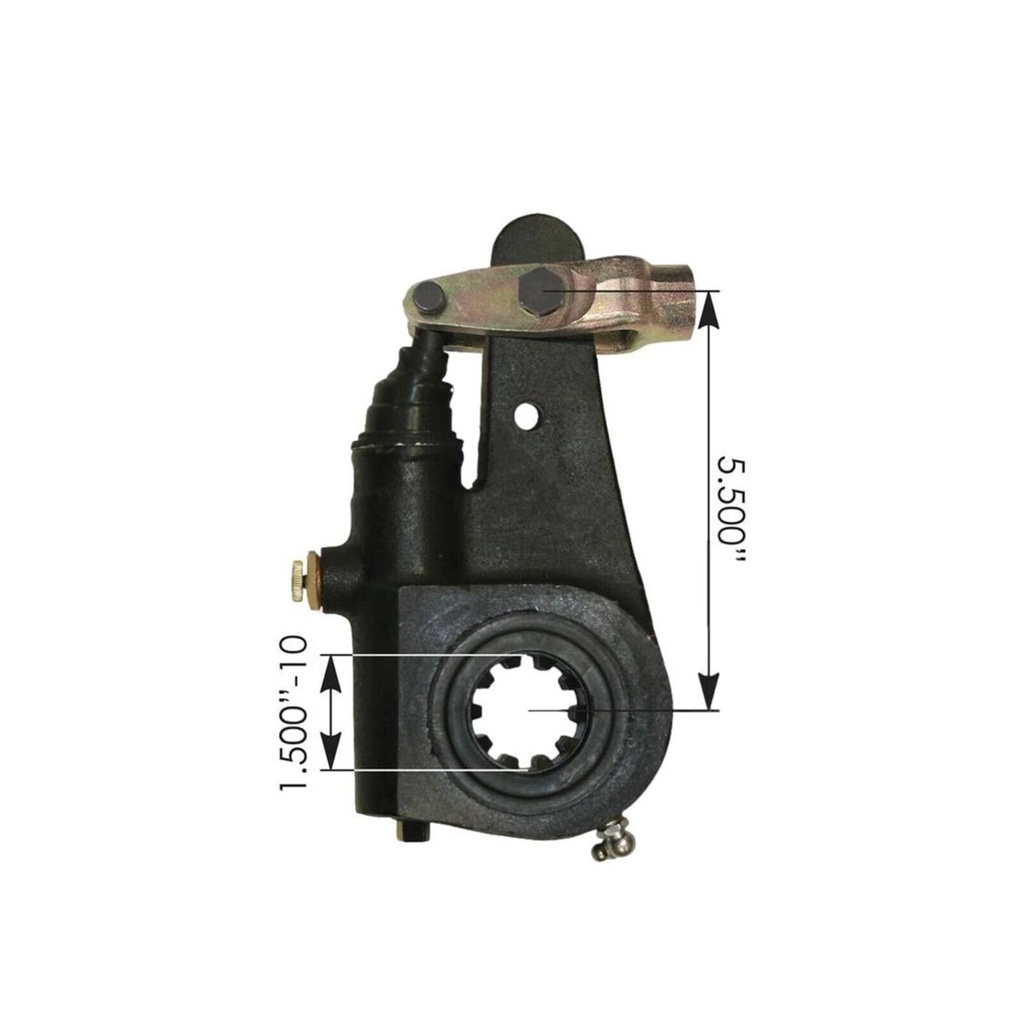

Automatic Slack Adjuster Stroke 10 Spline 1.50" - 139.1031
Part#: AAA6011391031
Features and Benefits
- Stroke sensing automatic slack adjuster for precise push rod travel monitoring on commercial axles
- Stroke sensing mechanism detects actual push rod travel to trigger brake adjustment when needed
- Yellow piston provides quick visual identification for correct installation matching during service
- Arm length calibrated for accurate push rod stroke on standard commercial brake chamber positions
- Spline profile provides compatible engagement for low-count tooth camshaft configurations
- Straight clevis connection enables direct push rod attachment for stroke sensing brake applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 6.65 |
|---|---|
| Type | Unhanded |
| Clevis Type | Straight |
| Piston | Yellow Piston |
| Arm Length | 5.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 10 |
| Sensing Type | Stroke |
| Chamber Sizes | 30 |
| Clevis Thread Diameter | 0.625 in. |
| Clevis Threads per inch | 18 |
| Maximum Torque Rating | More than 45 inch pounds |
| Interchange |
|---|
| 05361 |
| R801041 |
| R801041RI |
| RBR801041 |
| RIR801041 |
| ROR801041 |
| RWR801041 |
| SA1041 |
| SA1132A |
| SAPR801041 |
| SCSA1041 |
| TDAR801041 |
| TWDR801041 |
| V1090266 |
| WAAS1132 |
| WAR801041 |
| ZBRAS1132 |
| ZBRAS1146 |
| ZCPMK21102S |
| ZCPMK41100S |
The Slack Adjuster is an unhanded stroke-sensing design with a yellow piston and 5.5" arm, built for automatic adjustment on Heavy Duty commercial vehicle axles. Featuring a straight clevis configuration, the component delivers consistent stopping performance and dependable actuation across a wide range of transport platforms.
