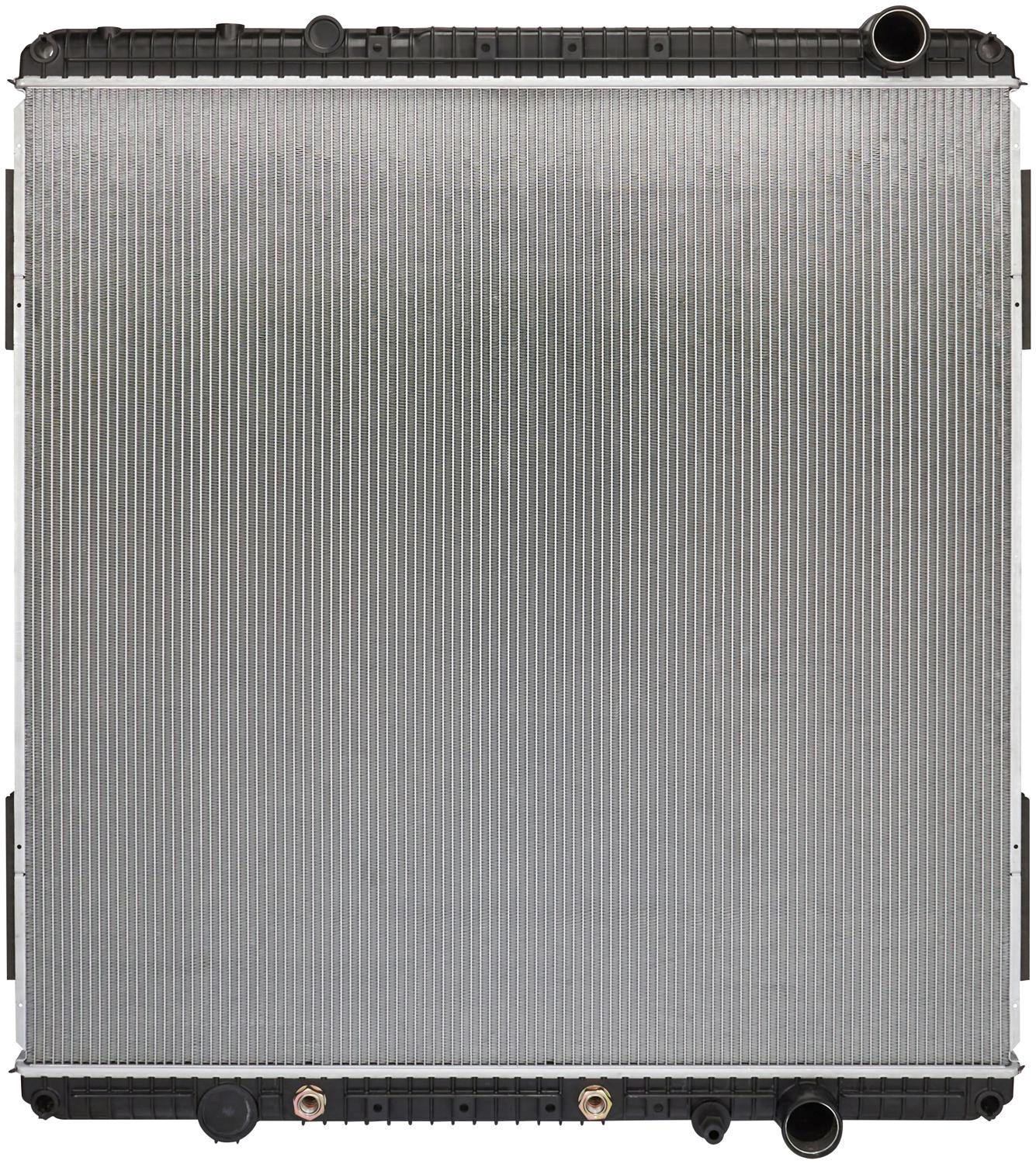

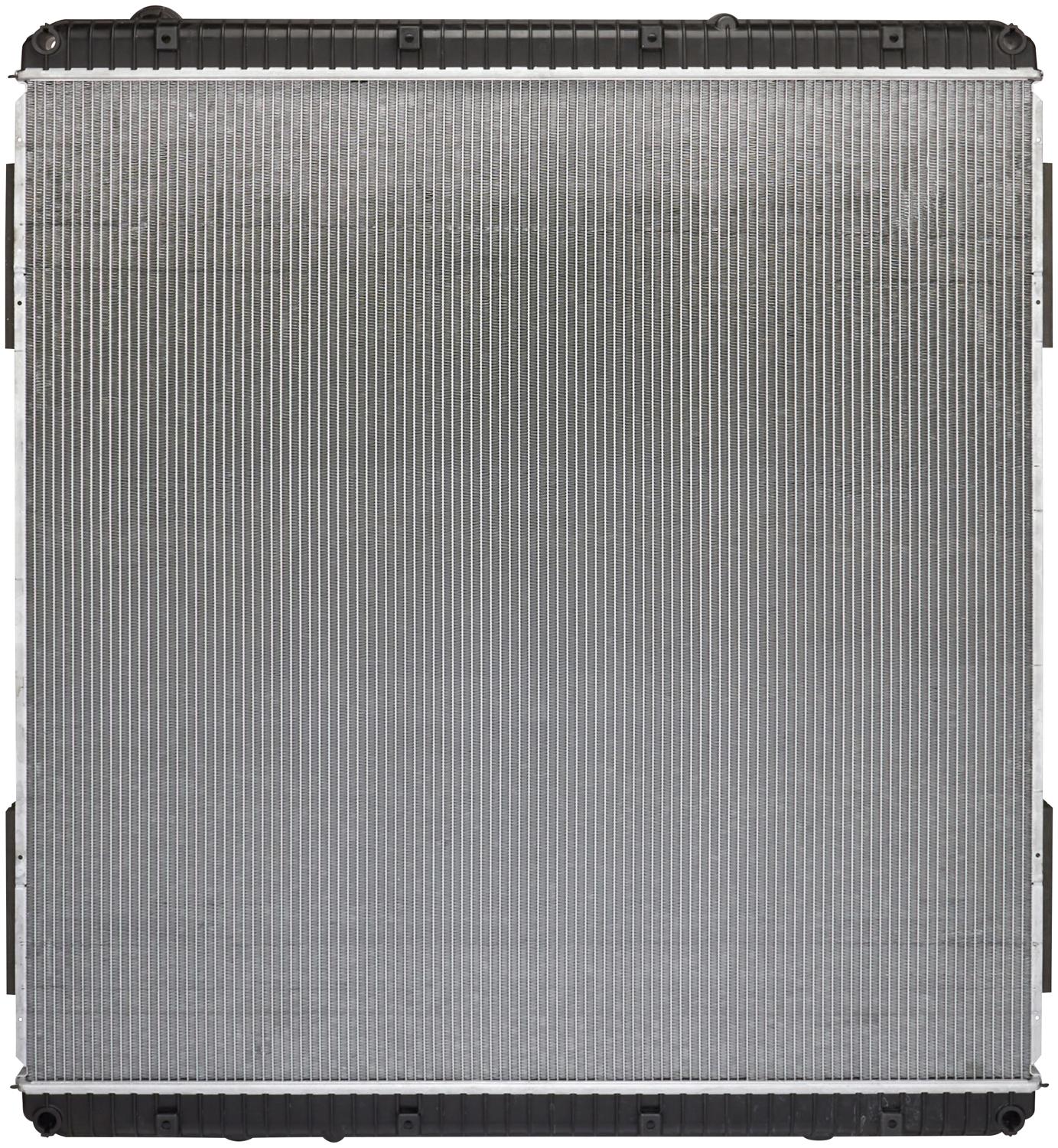

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection - 0437429P

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection - 0437429P

Part#: AAA7237429R

Features and Benefits

Extra-wide aluminum core maximises heat rejection surface area for large-displacement FRT engines
Plastic tanks maintain structural integrity under pressure while reducing total assembly weight
Downflow dual-row design supports high heat dissipation across the wide core contact surface
Engine-side top-of-core offset engineered for accurate fan proximity on FRT engine-side layouts
Matched coolant ports deliver correct flow velocity through the Freightliner cooling circuit
Comprehensive kit with U-Clips, lock nuts, bolts, adaptor, connectors, and rubber bushings included

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Core Material	Aluminum
Tank Material	Plastic
Type	Downflow
Row	2
Height	42 in.
Width	41-5/8 in.
Thickness	2-3/16 in.
Inlet	2-1/2 in.
Outlet	2-1/2 in.
TOC	12 in. Engine side
Radiator Frames Included	No
Kit	12x U-Clips (1/4-20); 12x Lock Nuts (M10x1.5); 14x Bolts (M10x1.5); 12x Bolts (M6x1); 1x Adaptor (9/16-18); 2x 90° Connectors; 1x Connector (3/4-16); 9x Rubber Bushings

Interchange

238653
238745
3E0122680002
3S011727
3S11727
437429P
526678004
526876000
526876002
526876004
526876006
527748000
527748002
529616002
529620000
529620002
A0525304002
A0525304006
A0526865000
A0526865002
A0526865004
A0526865006
A0526865008
A0526865010
A0527742000
A0527742002
A0529630000
A0529630002
TR7429P
WS02

The Radiator features an aluminum core with a plastic tank, engineered for dependable cooling on Freightliner Heavy Duty commercial vehicles. Designed as a direct replacement, the unit delivers consistent thermal management and reliable operation across demanding engine configurations, and includes a comprehensive hardware installation kit.
