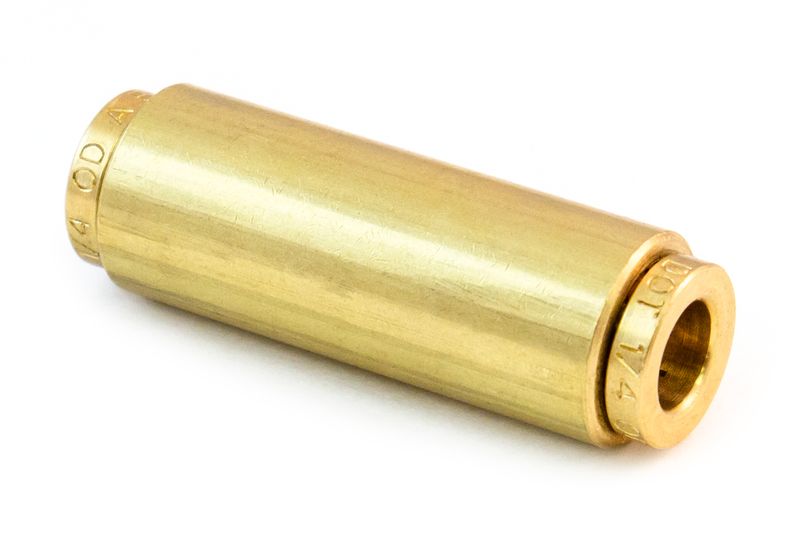

Union Connector Push-to-Connect Brass 3/16 - 177.13B623
Part#: AAA71713B623
Features and Benefits
- Straight union fitting in push-to-connect style for 3/16 in in-line tubing connection
- Push-to-connect connection type for tool-free tubing insertion at both straight union ports
- Brass body with composite collet for corrosion-resistant fitting and secure tubing retention
- Connection sizes both at 3/16 in for a same-size straight union on compatible air lines
- Compatible with nylon tubing for confirmed tubing material match on both union port ends
- Brass straight union with composite collet for 3/16 in in-line air brake tubing connection
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Body Material | Brass |
|---|---|
| Collet Material | Composite |
| Compatible Tubing | Nylon |
| Connection Size 1 | 0.19 in. |
| Connection Size 2 | 0.19 in. |
| Connection Type | Push-to-Connect |
| Fitting Style | Straight Union |
| Interchange |
|---|
| 18623 |
| 1862X3 |
| 24623 |
| 262PPDOT3 |
| 620300 |
| 62PMT3 |
| 62PTC3 |
| 87136 |
| 9623 |
| 9623PXDOT |
| APB62F3 |
| AQ62DOT3 |
| DOT623 |
| G314000303 |
| NP623 |
| PL13623 |
| S62PMT3 |
No data found.
The Union Connector is a push-to-connect straight union fitting with a brass body and 3/16" connection size, engineered for rapid, tool-free tube joining in Heavy Duty commercial vehicle air brake systems. The component delivers consistent sealing performance and reliable service life across pneumatic plumbing configurations.
