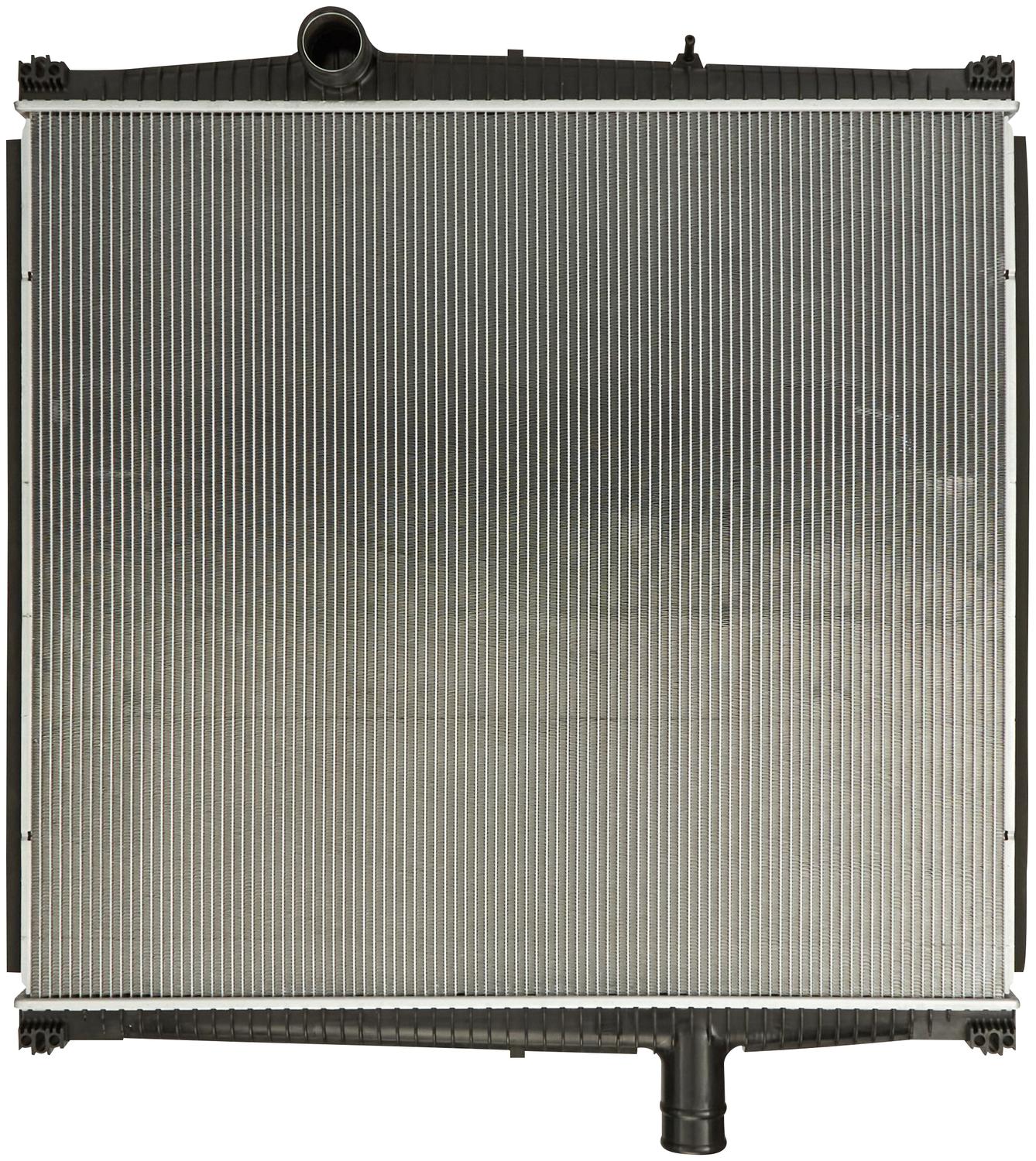

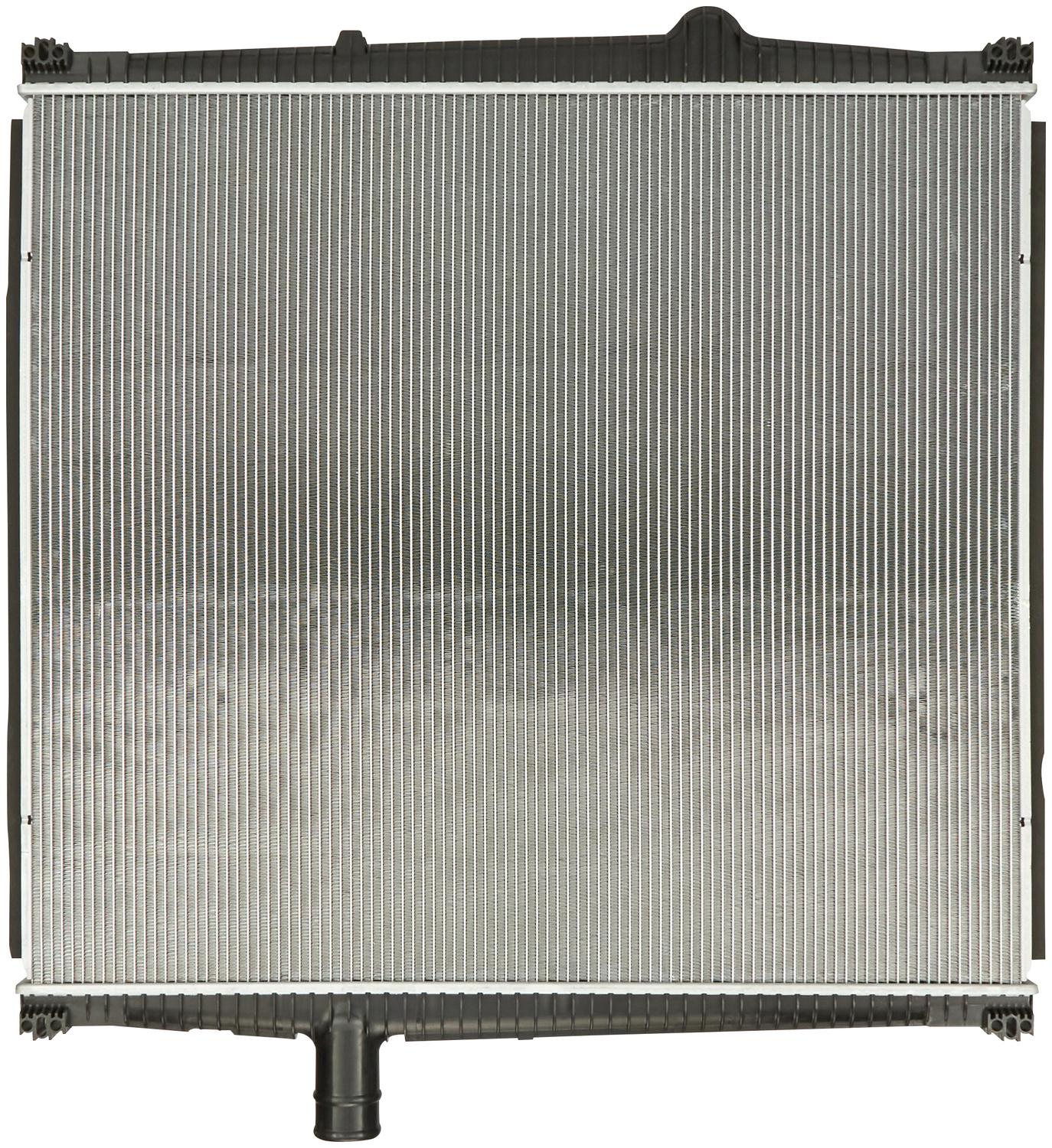

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection Frame Mount - 0437565PF

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection Frame Mount - 0437565PF

Part#: AAA7237565RF

Features and Benefits

Frame-included T680 radiator ships as a complete, structurally ready cooling module
Slim core profile maintains the compact T680 front-end space envelope for direct panel fitment
Aluminum core and plastic tank combination delivers Kenworth T680 thermal management performance
Integrated frame surround provides structural support for high-vibration T680 chassis environments
Downflow dual-row design maintains consistent coolant circulation through the T680 core
Kit includes bolts, nuts, clevis pins, and clevis clips for a straightforward T680 installation

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Core Material	Aluminum
Tank Material	Plastic
Type	Downflow
Row	2.00
Height	34-1/16 in.
Width	37-11/16 in.
Thickness	1-9/16 in.
Inlet	2-1/2 in.
Outlet	2-1/2 in.
Radiator Frames Included	No
Kit	4x Bolts; 4x Nuts; 2x Clevis Pins; 2x Clevis Clips

Interchange

0437565P
238853
238869
29583SS
437565P
APL2389000
ATP29583
ATX29583
F3112541101211
F3112541111211
GPOHK179001
GTPHK179001
GTS29583
HK179001HTP
HK179001KTP
HK179001RC
HK179001TS
MPGS29583
PET101
PPTPHK179001
PSHK179001
S29583
TFHK179001
VIPHK179001
VTC95832
XD94333

Year	Make	Model	Engine

2026	KENWORTH	T880	L6 10.8L
2026	KENWORTH	T880	L6 12.9L
2026	KENWORTH	T880	L6 14.9L
2026	KENWORTH	T880	L6 8.9L
2025	KENWORTH	T880	6 11.9L
2025	KENWORTH	T880	6 12.9L
2025	KENWORTH	T880	L6 10.8L
2025	KENWORTH	T880	L6 12.9L
2025	KENWORTH	T880	L6 14.9L
2025	KENWORTH	T880	L6 8.9L
2024	KENWORTH	T880	6 11.9L
2024	KENWORTH	T880	6 12.9L
2024	KENWORTH	T880	L6 10.8L
2024	KENWORTH	T880	L6 12.9L
2024	KENWORTH	T880	L6 14.9L
2024	KENWORTH	T880	L6 8.9L
2023	KENWORTH	T880	6 11.9L
2023	KENWORTH	T880	6 12.9L
2023	KENWORTH	T880	L6 10.8L
2023	KENWORTH	T880	L6 12.9L
2023	KENWORTH	T880	L6 14.9L
2023	KENWORTH	T880	L6 8.9L
2022	KENWORTH	T880	6 11.9L
2022	KENWORTH	T880	6 12.9L
2022	KENWORTH	T880	L6 10.8L
2022	KENWORTH	T880	L6 12.9L
2022	KENWORTH	T880	L6 14.9L
2022	KENWORTH	T880	L6 8.9L
2021	KENWORTH	T680	6 11.9L
2021	KENWORTH	T680	6 12.9L
2021	KENWORTH	T680	L6 10.8L
2021	KENWORTH	T680	L6 12.9L
2021	KENWORTH	T680	L6 14.9L
2021	KENWORTH	T680	L6 8.9L
2021	PETERBILT	579	6 11.9L
2021	PETERBILT	579	6 12.9L
2021	PETERBILT	579	L6 10.8L
2021	PETERBILT	579	L6 14.9L
2021	PETERBILT	579	L6 8.9L
2020	KENWORTH	T680	6 11.9L
2020	KENWORTH	T680	6 12.9L
2020	KENWORTH	T680	L6 10.8L
2020	KENWORTH	T680	L6 12.9L
2020	KENWORTH	T680	L6 14.9L
2020	KENWORTH	T680	L6 8.9L
2020	PETERBILT	579	6 11.9L
2020	PETERBILT	579	6 12.9L
2020	PETERBILT	579	L6 10.8L
2020	PETERBILT	579	L6 14.9L
2020	PETERBILT	579	L6 8.9L
2019	KENWORTH	T680	6 11.9L
2019	KENWORTH	T680	6 12.9L
2019	KENWORTH	T680	L6 10.8L
2019	KENWORTH	T680	L6 12.9L
2019	KENWORTH	T680	L6 14.9L
2019	KENWORTH	T680	L6 8.9L
2019	PETERBILT	579	6 11.9L
2019	PETERBILT	579	6 12.9L
2019	PETERBILT	579	L
2019	PETERBILT	579	L6 10.8L
2019	PETERBILT	579	L6 14.9L
2019	PETERBILT	579	L6 8.9L
2018	KENWORTH	T680	6 11.9L
2018	KENWORTH	T680	6 12.9L
2018	KENWORTH	T680	L
2018	KENWORTH	T680	L6 10.8L
2018	KENWORTH	T680	L6 12.9L
2018	KENWORTH	T680	L6 14.9L
2018	KENWORTH	T680	L6 8.9L
2018	PETERBILT	579	6 11.9L
2018	PETERBILT	579	6 12.9L
2018	PETERBILT	579	L
2018	PETERBILT	579	L6 10.8L
2018	PETERBILT	579	L6 14.9L
2018	PETERBILT	579	L6 8.9L

The Radiator features an aluminum core with a plastic tank, engineered for dependable cooling performance on Kenworth T680 Heavy Duty commercial vehicles. Supplied with a frame for complete fitment, the unit delivers consistent thermal management and reliable operation, and includes a hardware installation kit for straightforward mounting.
