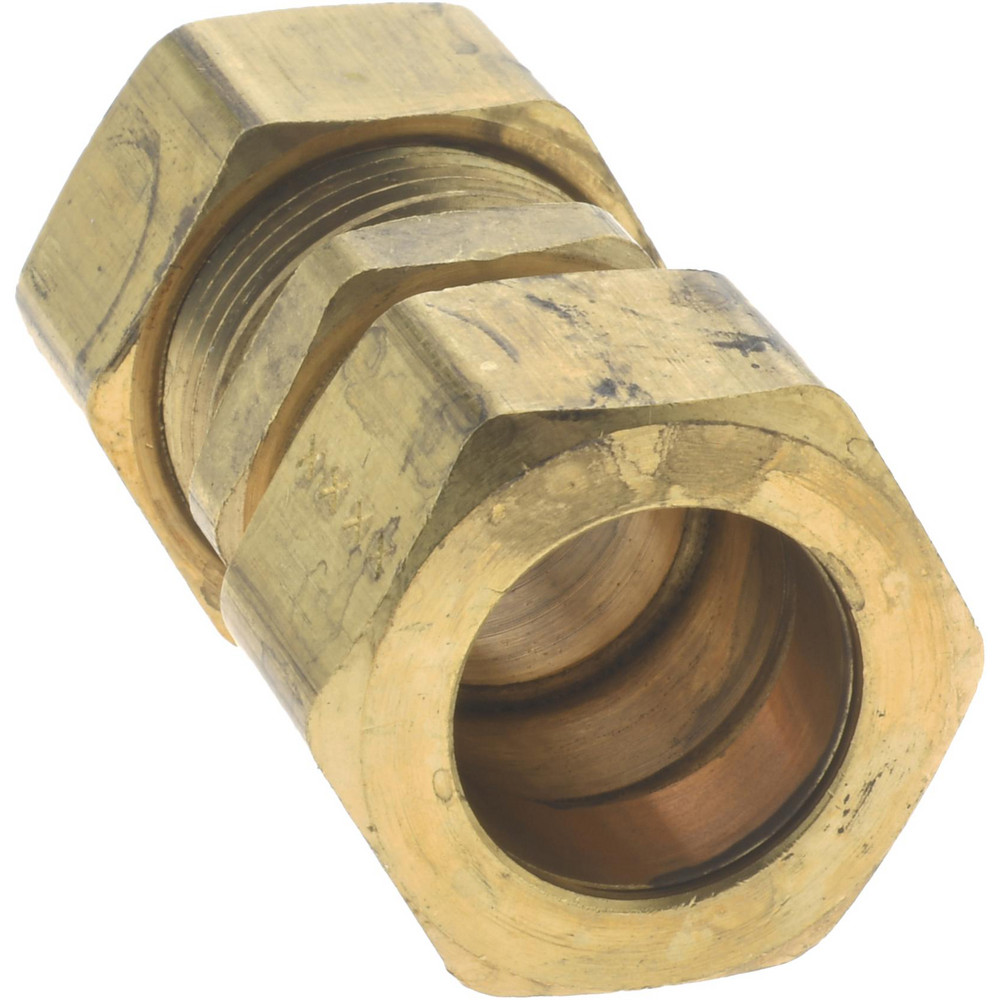

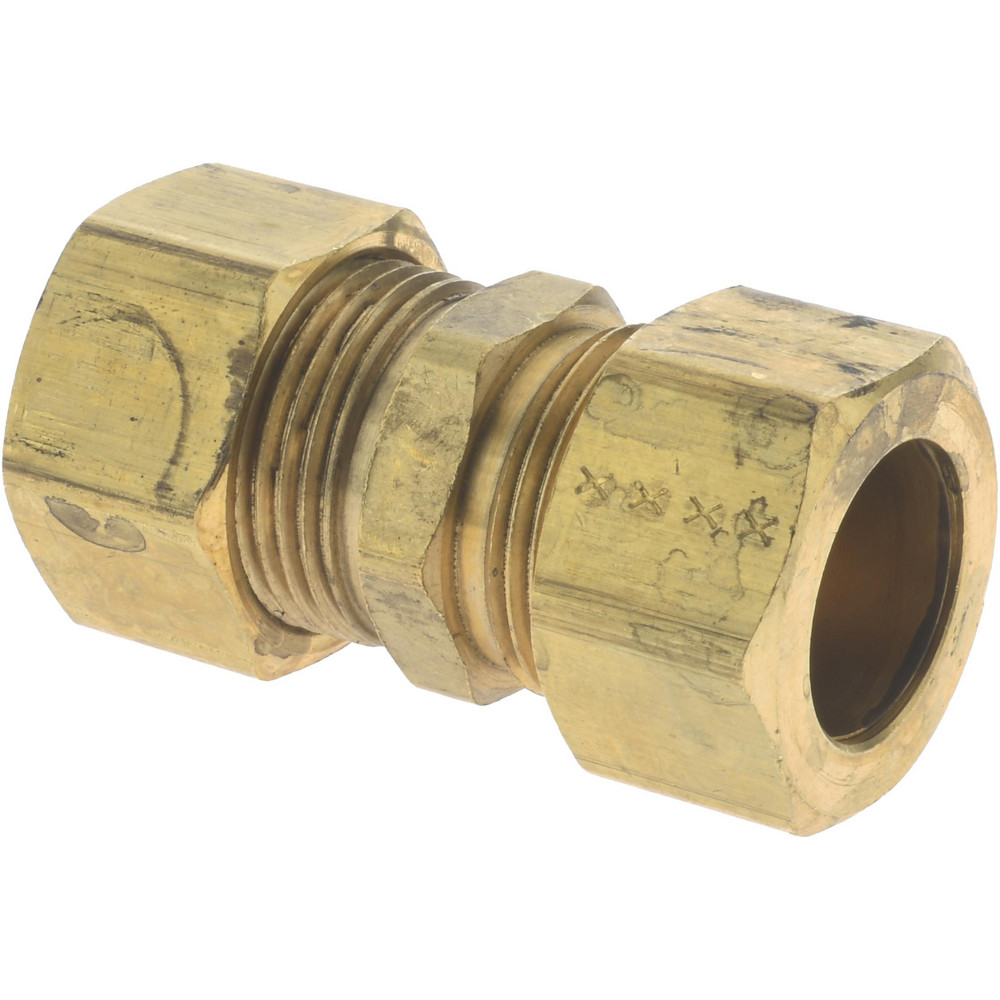

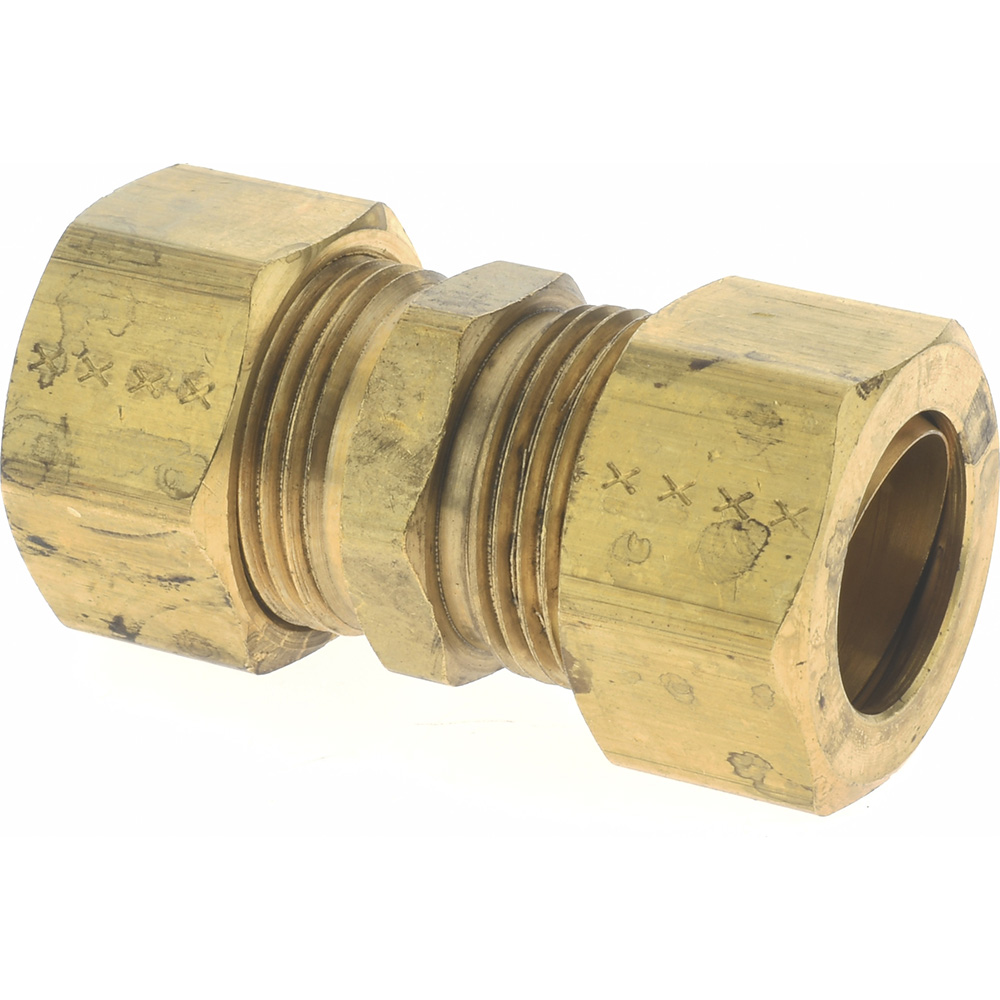

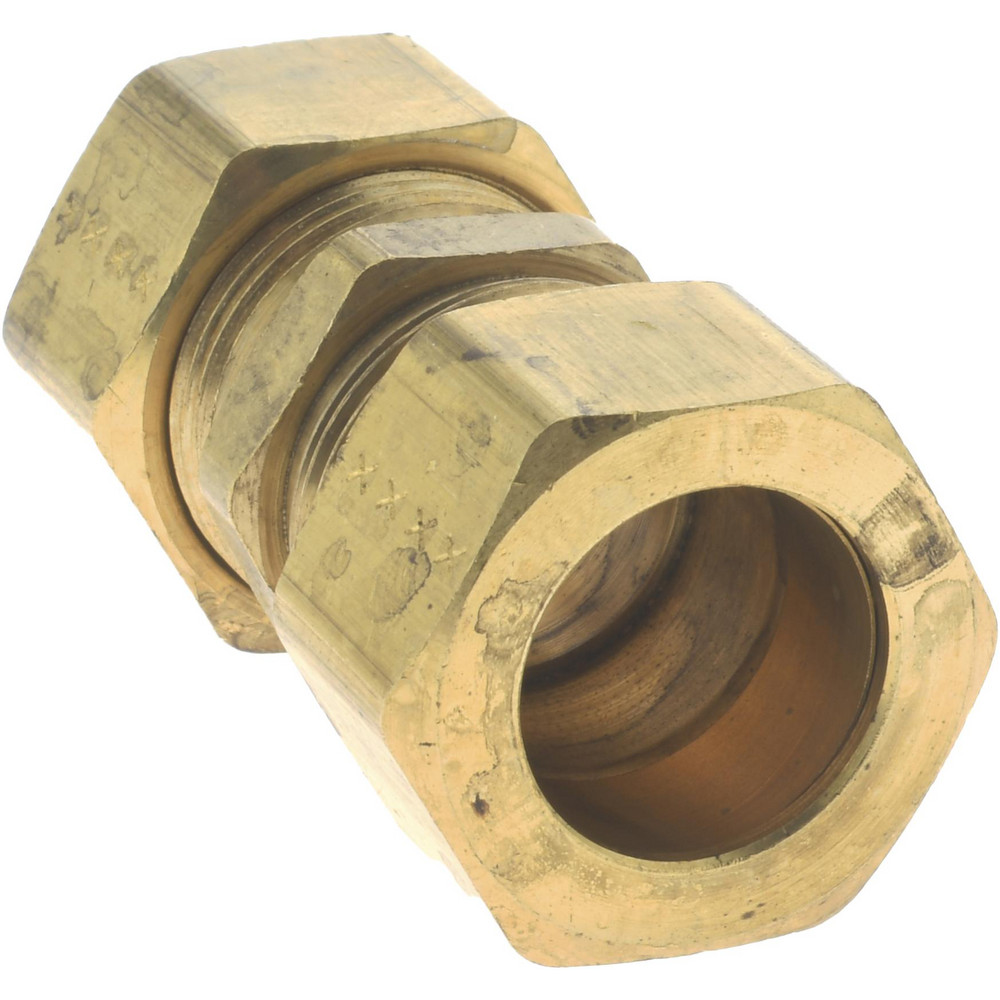

Union Connector Compression Brass 5/8 150 psi - 18069L
Part#: AAA71718069L
Features and Benefits
- Straight union fitting in compression style for in-line 5/8 in air brake tubing connection
- Compression connection type for secure sleeve-and-nut tubing attachment without push tools
- Brass body material for durable, corrosion-resistant fitting performance in air brake service
- Compatible with copper, aluminum, and thermoplastic tubing for broad tubing material coverage
- Pressure rating of 150 psi for air brake system operating pressure performance at this size
- Light series designation for a compact, lightweight compression union profile in service
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Body Material | Brass |
|---|---|
| Compatible Tubing | Copper/Aluminum/Thermoplastic |
| Connection Size | 0.63 in. |
| Connection Size 1 | 0.63 in. |
| Connection Size 2 | 0.81"-18 |
| Connection Type | Compression |
| Fitting Style | Straight Union |
| Hex Size | 0.81 in. |
| Lead Free | No |
| Pressure Rating | 150 psi |
| Series | 62 262 M-62 |
| Temperature Rating | 73 °F |
| Interchange |
|---|
| 162900 |
| 262X10 |
| 6210 |
| 62A1010 |
| 62C10 |
| 62F10 |
| 62x10 |
| 66210 |
| A6210 |
| D6210 |
| L62H |
| S6210 |
No data found.
The Union Connector is a compression straight union fitting with a brass body and 5/8" connection size, engineered for dependable tube-to-tube joining in Heavy Duty commercial vehicle air brake systems. The component delivers consistent sealing performance and reliable service life across a wide range of pneumatic plumbing configurations.
