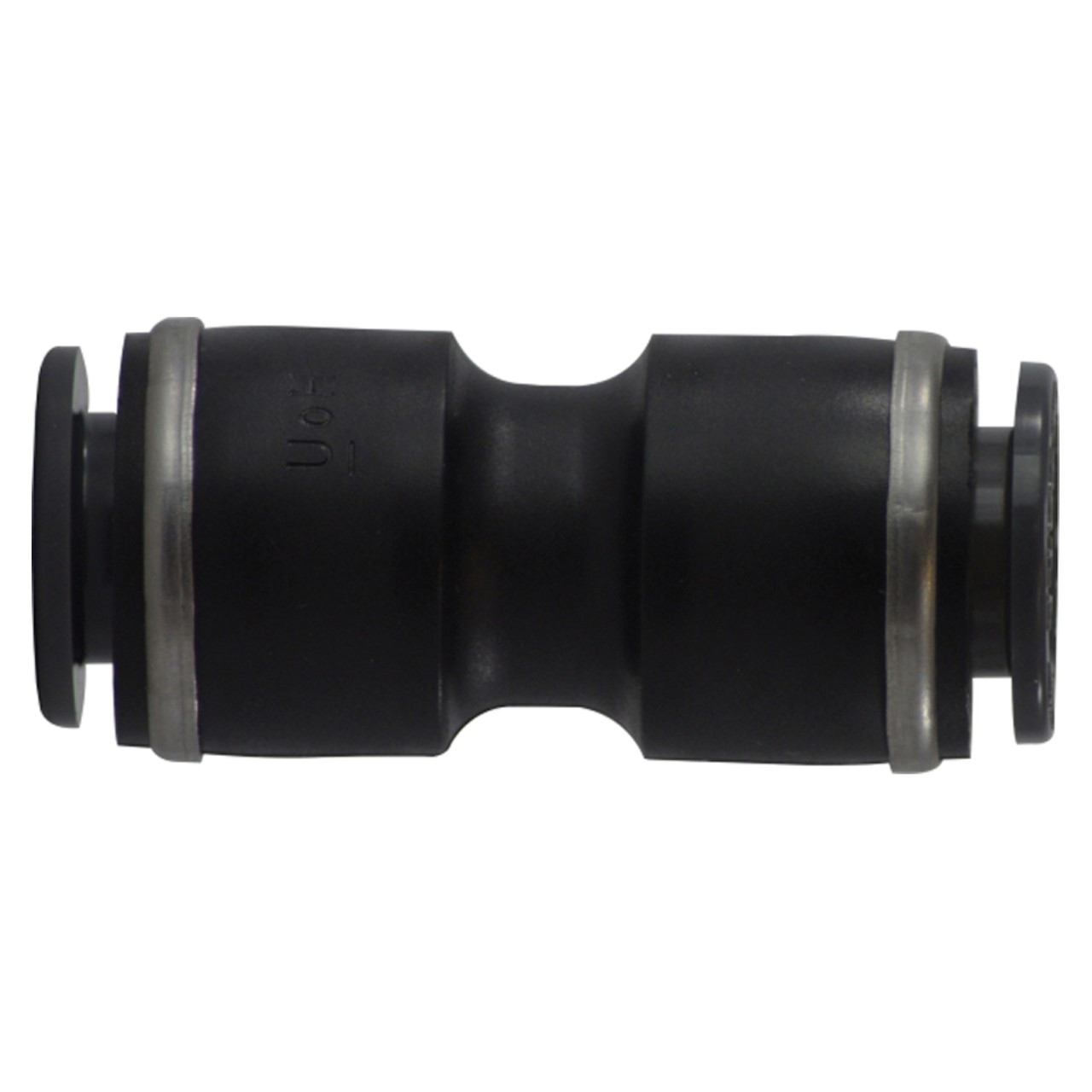

Union Connector DOT Push-to-Connect Brass 3/8 145 psi - 620600C
Part#: AAA717620600C
Features and Benefits
- Straight union fitting in push-to-connect DOT style for 3/8 in in-line air brake connection
- Push-to-connect connection type for tool-free tubing insertion at both DOT union ports
- PBT and brass body construction for lightweight polymer-plus-metal corrosion-resistant performance
- Compatible with SAE J844 and DOT FMVSS 571.106 tubing for confirmed dual-standard fitment
- Nitrile (NBR) seal for reliable sealing performance in DOT air brake system pressure media
- Pressure rating of 145 psi for DOT air brake system operating pressure performance in service
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Body Material | PBT/Brass |
|---|---|
| Compatible Tubing | Tubing conforming to both SAE J844 and D.O.T. FMVSS 49 CFR 571.106 (SAE J844 Type A/B / DOT FMVSS 571.106) |
| Connection Size | 0.38 in. |
| Connection Size 1 | 0.38 in. |
| Connection Size 2 | 0.38 in. |
| Connection Type | Push-to-Connect |
| Fitting Style | Straight Union |
| Pressure Rating | 145 psi |
| Seal Material | Nitrile (NBR/Buna-N) |
| Temperature Rating | 140 °F |
| Interchange |
|---|
| 016660 |
| 16660 |
| 262PPCDOT6 |
| 32PTC6 |
| 501082 |
| 98703 |
| AI06000600020 |
| CDOT14626 |
| KV2H1100 |
| QL13626 |
| S762PMT6 |
No data found.
The Union Connector is a push-to-connect straight union fitting with a composite body and 3/8" connection size, engineered for rapid, tool-free tube joining in Heavy Duty commercial vehicle air brake systems. The component delivers consistent sealing performance and reliable service life across pneumatic plumbing configurations.
