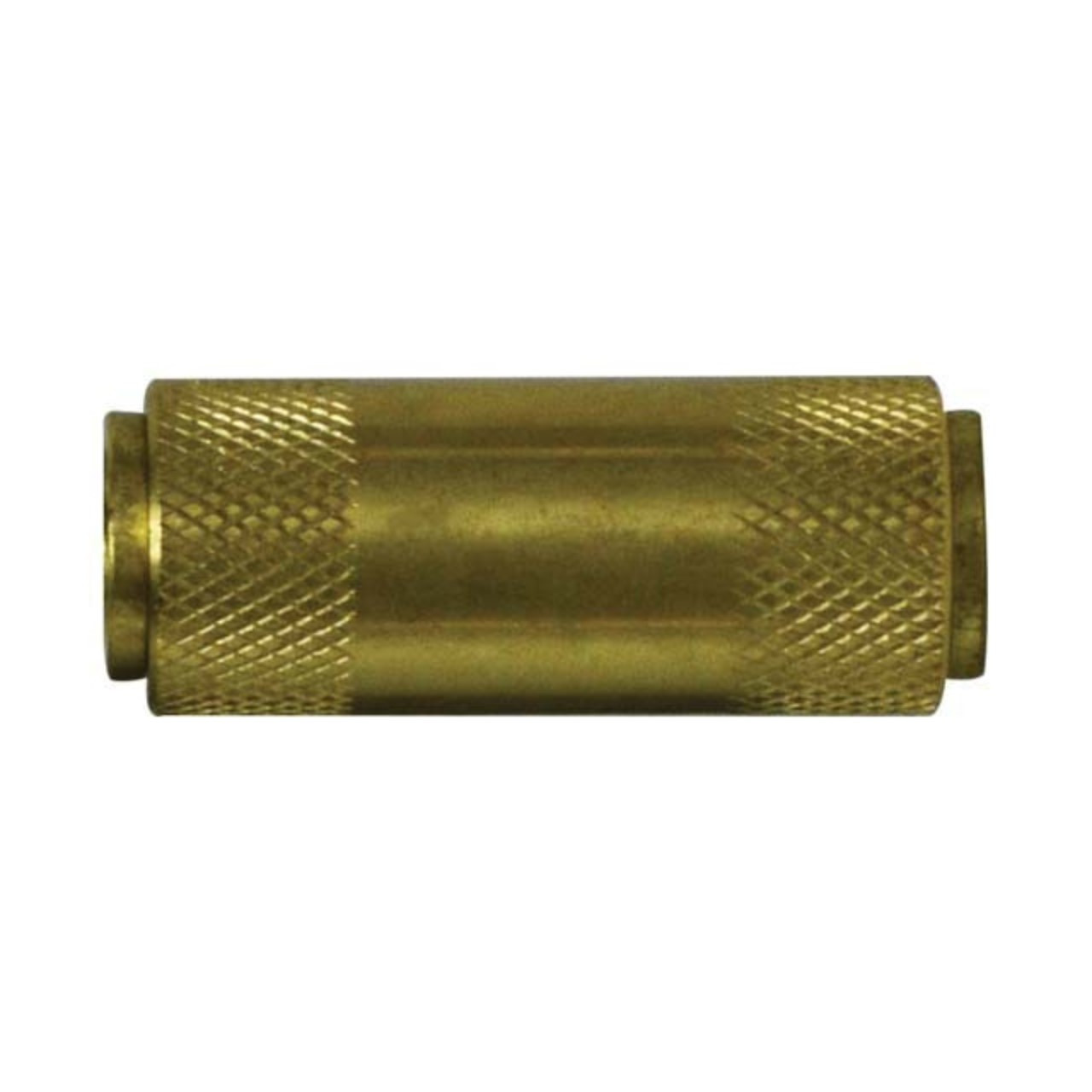

Union Connector DOT Push-to-Connect Brass 1/2 150 psi - 620800
Part#: AAA717620800
Features and Benefits
- Straight union fitting in push-to-connect DOT style for 1/2 in in-line air brake connection
- Push-to-connect connection type for tool-free tubing insertion at both DOT union ports
- Brass body material for durable, corrosion-resistant fitting performance in air brake service
- Compatible with SAE J844 and DOT FMVSS 571.106 tubing for confirmed dual-standard fitment
- Nitrile (NBR) seal for reliable sealing performance in DOT air brake system pressure media
- Pressure rating of 150 psi for reliable DOT air brake system operating pressure performance
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Body Material | Brass |
|---|---|
| Compatible Tubing | Tubing conforming to both SAE J844 and D.O.T. FMVSS 49 CFR 571.106 (SAE J844 Type A/B / DOT FMVSS 571.106) |
| Connection Size | 0.50 in. |
| Connection Size 1 | 0.50 in. |
| Connection Size 2 | 0.50 in. |
| Connection Type | Push-to-Connect |
| Fitting Style | Straight Union |
| Pressure Rating | 150 psi |
| Seal Material | Nitrile (NBR/Buna-N) |
| Temperature Rating | -40 to 200 °F |
| Interchange |
|---|
| 12100267 |
| 15628 |
| 16680 |
| 1862x8 |
| 246208 |
| 2462x8 |
| 262PC8 |
| 262PPDOT8 |
| 2PMT8 |
| 62PMT8 |
| 87037 |
| 91202 |
| 94450307M |
| 9628 |
| 9628PXDOT |
| APTC628 |
| AQ62DOT8 |
| D7062DT8 |
| DOT628 |
| DQ628 |
| DQ62DOT0800 |
| DQ62DOT8 |
| NP628 |
| PC14628 |
| PL13628 |
| PP62FDOT |
| S62PMT8 |
No data found.
The Union Connector is a push-to-connect straight union fitting with a brass body and 1/2" connection size, engineered for rapid, tool-free tube joining in Heavy Duty commercial vehicle air brake systems. The component delivers consistent sealing performance and reliable service life across pneumatic plumbing configurations.
