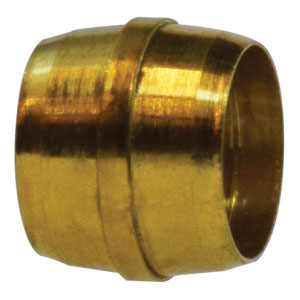

Air Brake Fitting 0.38" Tube 17/32-24 - 38002

Air Brake Fitting 0.38" Tube 17/32-24 - 38002

Part#: AAA41938002

Features and Benefits

Air Brake Sleeve type for accurate product classification during service
Material of Brass construction for the product body
Thread size of 17/32-24 for correct fastener thread engagement
Connection Size 1 of 0.38" for correct tubing OD match at the fitting port
Connection Size 2 of 0.38" for correct tubing OD match at the fitting port
Connection Type of Tube and Tube for the fitting port connection style

Select Alternative Part #

38002

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Certification	DOT
Conformance	Meets specifications and standards of SAE and DOT FMVSS 571,106
Connection Size 1	0.38 in.
Connection Size 2	0.38 in.
Connection Type	Tube\|Tube
Connection Type 1	Tube OD
Connection Type 2	Tube OD
DESIGN	DOT-Approved, Leak-Free Construction
Fitting Type	Sleeve
Material	Brass for long lasting durability, corrosion resistance
SAE Standard	SAE# 100115
Pressure Rating	150 psi
Shape	Sleeve
Temperature Rating	-40° F to +200° F (-40° C to +93° C)
Thread Size	17/32-24
Tolerance	+/- .02 on all dimensions
Tube Size	0.38 in.
Tubing Type	Nylon
Type	Air Brake Sleeve
Vibration Resistance	Fair resistance

Interchange

00460-06
121157.470000000001
1360-6
1460-6
14606
1460x6
16360
4-460-F-06
460-6
51835K282
60NAB-6
60NAB4
60NAB6
60NABX6
60NTA-6
85004
90651
960-6
D1460-6
D14606
N60-6
NT60-6
NY60-6
S760AB-6
TH260E

No data found.

The Air Brake Fitting is a sleeve design constructed from brass with a 0.38" tube connection with a 17/32-24 thread size, engineered for reliable DOT-approved air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across a wide range of configurations.
