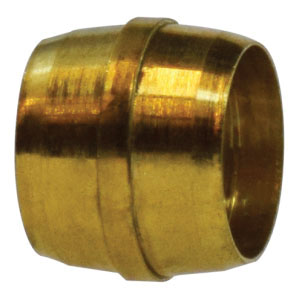

Air Brake Fitting 0.75" Tube 1-18 - 38005

Air Brake Fitting 0.75" Tube 1-18 - 38005

Part#: AAA41938005

Features and Benefits

Air Brake Sleeve type for accurate product classification during service
Material of Brass construction for the product body
Thread size of 1-18 for correct fastener thread engagement
Connection Size 1 of 0.75" for correct tubing OD match at the fitting port
Connection Size 2 of 0.75" for correct tubing OD match at the fitting port
Connection Type of Tube and Tube for the fitting port connection style

Select Alternative Part #

38005

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Conformance	Meets specifications and standards of SAE and DOT FMVSS 571,106
Connection Size 1	0.75 in.
Connection Size 2	0.75 in.
Connection Type	Tube\|Tube
Connection Type 1	Tube OD
Connection Type 2	Tube OD
DESIGN	DOT-Approved, Leak-Free Construction
Fitting Type	Sleeve
Material	Brass for long lasting durability, corrosion resistance
SAE Standard	SAE# 100115
Pressure Rating	150 psi
Shape	Sleeve
Temperature Rating	-40° F to +200° F (-40° C to +93° C)
Thread Size	1-18
Tolerance	+/- .02 on all dimensions
Tube Size	0.75 in.
Type	Air Brake Sleeve
Vibration Resistance	Fair resistance

Interchange

00460-12
121157.860000000001
1360-12
1460-12
146012
1460x12
16301
4-460-F-12
460-12
60NAB-12
60NAB12
60NABX12
60NTA-12
85002
90654
960-12
960-12C
D1460-12
D146012
N60-12
NT60-12
NY60-12
S760AB-12
S760AB-12C
TH260J

No data found.

The Air Brake Fitting is a sleeve design constructed from brass with a 0.75" tube connection with a 1-18 thread size, engineered for reliable DOT-approved air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across a wide range of configurations.
