Battery 2.62" Length 4.38" - 82-2103

Battery 2.62" Length 4.38" - 82-2103

Part#: AAA42482-2103

Features and Benefits

S.P.S.T type for accurate product classification during service
Length of 4.38" for correct fitment in compatible mounting positions
Diameter of 2.62" for correct fitment dimension
Style of disconnect for the product design configuration
Terminal type of 2 copper alloy stud terminals with hex nuts and washers for the product connection interface
Voltage of 12 V for the product electrical rating

Select Alternative Part #

82-2103

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Amperage	180 Amps @ 6-36V DC
Continuous Capacity	180A
Continuous Rating	180A @ 6V-36V, 1,000A in rush
Diameter	2.62 in.
Ingress Protection	IP65
Inrush Capacity	1000A
Length	4.38 in.
Panel Thickness Fit	up to 0.25 in. thick
Position	Off-On
Stud or Tab Size	0.38 in.
Style	Disconnect
Switch Type	Single Pole Single Throw
Terminal Type	2 copper alloy stud terminals with hex nuts and washers
Type	S.P.S.T
Version	Levered Version
Voltage	12 V
Voltage Amp	180A @ 6-36V DC

No data found.

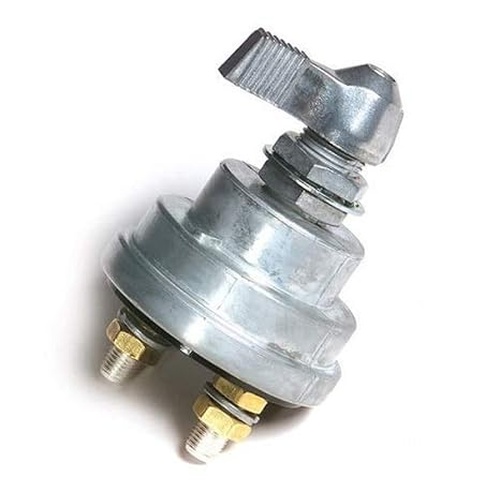

The Battery Disconnect Switch is a single pole design rated at 180A across 6-36V DC, engineered for reliable electrical isolation on Heavy Duty commercial vehicle applications. Rated IP65, the component delivers consistent switching performance and dependable protection across configurations.
