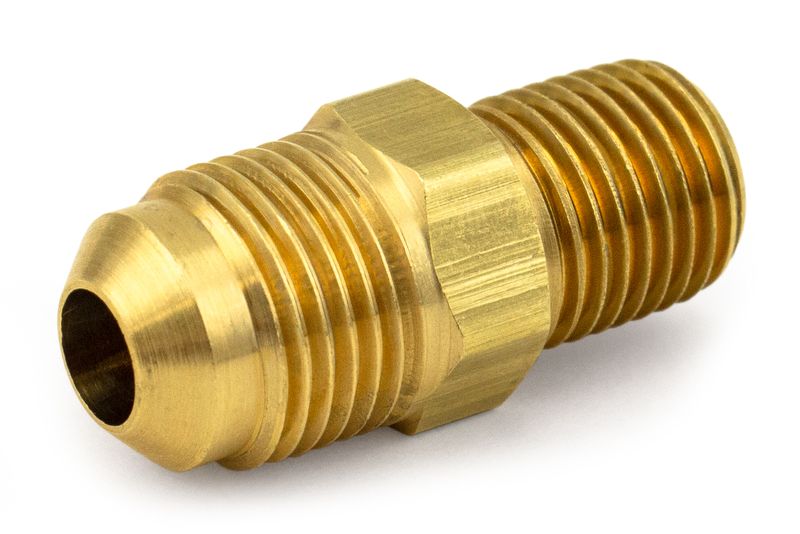

Electrical Connector 0.62" Brass Male SAE Flare Tube To NPT 0.50" - 177.84810D
Part#: AAA44484810D
Features and Benefits
- Male connector product type for accurate identification during service
- Connector type of straight adapter, male SAE to male NPT for the connector interface configuration
- Connection type of SAE 45 deg flare for the connector interface configuration
- Connection of male SAE flare tube to male NPT or 5/8" SAE X 1/2" pipe for the connector interface configuration
- Material of brass construction for the connector body
- Tube size of 0.62" for correct tubing OD match at the connector port
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Connection | Male SAE Flare Tube To Male NPT |
|---|---|
| Connection | 5/8In SAE X 1/2In Pipe |
| Connection Type | SAE 45 Deg Flare |
| Connector Type | Straight Adapter - Male SAE To Male NPT |
| Dimensions | 2.00 in. x 1.00 in. x 1.00 in. |
| Material | Brass |
| Part Type | Male Connector |
| Thread Size | 0.50 in. |
| Thread Size | 0.50 in. NPT |
| Thread Type | SAE 45 Flare |
| Tube Size | 0.62 in. |
| Tube Type (Used In) | Copper, Aluminum, Brass, Welded Steel |
| Interchange |
|---|
| 014808 |
| 48-10 |
| 4810D |
| 48F108 |
| 48X10 |
| F48108 |
| S48108 |
No data found.
The Electrical Connector is a straight adapter design constructed from brass with an SAE 45-degree flare, measuring 5/8" SAE to 1/2" NPT, engineered for reliable air line plumbing on Heavy Duty commercial vehicle applications across a wide range of tubing materials.
