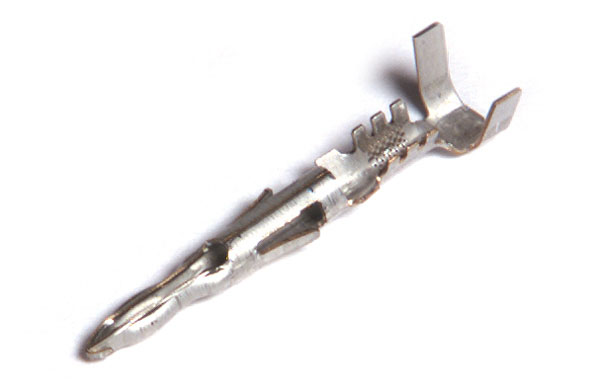

Electrical Connector 2.00" Length 3.50" Bare Open Barrel - 84-2000
Part#: AAA44484-2000
Features and Benefits
- Connector contact product type for accurate identification during service
- Connector type of male for the connector interface configuration
- Connection type of open barrel or crimp for the connector interface configuration
- Material of bare construction for the connector body
- Style of weather pack for the connector body configuration
- Length of 3.5" or 5.75" for correct connector fitment span
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Amperage | 7.5 A @ 125 °C (257 °F) Continuous |
|---|---|
| Amperage | 7.50 |
| Amperage | 7.5 Amps @ 125 Degree C (257 Degree F) Continuous |
| Connection Type | Open Barrel |
| Connection Type | Crimp |
| Connector Type | Male |
| Height | 0.50 in. |
| Height | 4.50 in. |
| Item | Connector Contact |
| Length | 3.50 in. |
| Length | 5.75 in. |
| Material | Bare |
| Operating Temperature Range | -67° F (-55° C) to 257° F (125° C) |
| Operating Temperature Range | -55 Degrees C |
| Operating Temperature Range | 125 Degrees C |
| Operating Temperature Range | -55 degree C (-67 degree F) to 125 degree C (257 degree F) |
| Part Type | Terminal |
| Part Type | Male |
| Prop 65 Label Required | N |
| Style | Weather Pack |
| Width | 2.00 in. |
| Width | 10.00 in. |
| Wire Gauge | 20-18 Gauge |
| Wire Gauge | 20-18 |
| Wire Gauge | 20 AWG |
| Wire Gauge | 18 AWG |
| Wire Gauge | 20-18 GA |
| Interchange |
|---|
| 12089 |
| 12089040 |
No data found.
The Electrical Connector is a weather pack male terminal rated for 7.5A at 125°C continuous, accommodating 20-18 gauge wire, engineered for reliable crimp-style connection on Heavy Duty commercial vehicle applications. The piece delivers consistent continuity across configurations.
