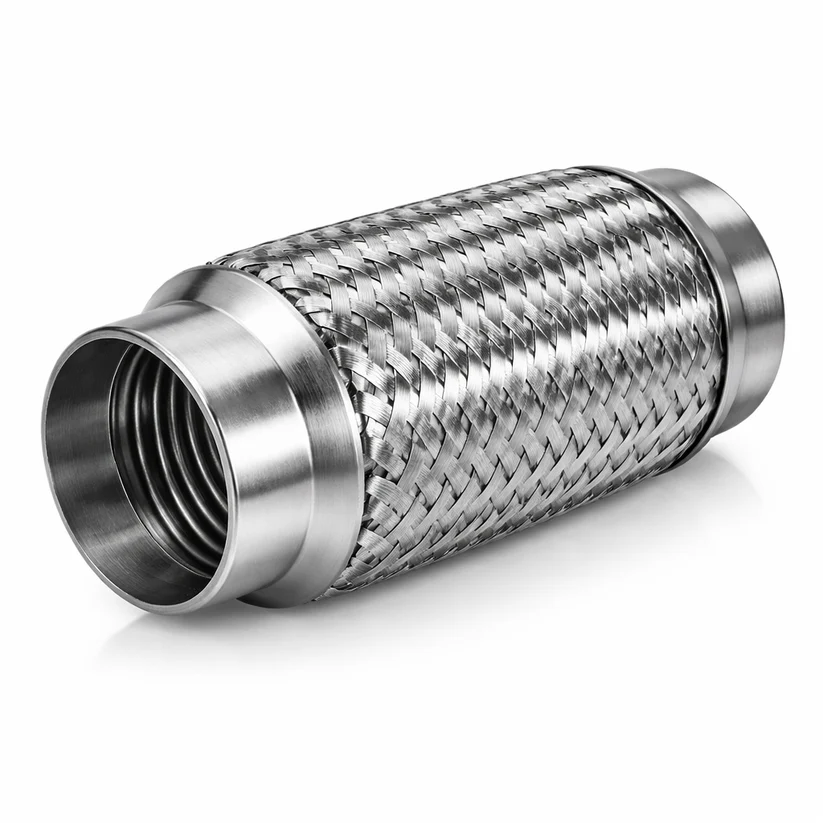

Exhaust Bellows 12.00 lbs - 820.B46807P

Exhaust Bellows 12.00 lbs - 820.B46807P

Part#: AAA411B46807P

Features and Benefits

Three layer 304 stainless steel design with vibration dampening weave for confirmed structural durability
Double / triple layer reinforced for confirmed structural durability and performance
Confirmed fitment dimensions for a direct, hassle-free swap
Grade 409 stainless steel welded end fittings for accurate end connection compatibility
Corrosion resistant build for dependable service life
Unit weight at 12.00 lbs for manageable handling during installation

Select Alternative Part #

820.B46807P

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Construction	Double / Triple Layer Reinforced
Core	Leak Proof Flexible Core with High flow interlocking layer
Corrosion Resistance	High
Design	Three Layer 304 Stainless Steel Design with Vibration Dampening weave
Durability	Heavy Duty Long Life
End Fittings	409 Stainless Steel Welded End Fittings
Expansion Capability	Axial & Lateral Movement
Finish	Metallic / Anti-corrosion
Flexibility	High Flexibility
Heat Resistance	Up to 600°C+
Inner Lining	Interlocked Stainless Steel Sleeve
Installation Type	Clamp / Weld Fit
Leak Resistance	100% Leak Tested
Material	Stainless Steel
Noise Reduction	Yes
Outer Layer	Braided Stainless Steel Mesh
Pressure Resistance	High Pressure Rated
Shape	Cylindrical
Type	Exhaust Bellows / Flexible Joint
Usage	Reduces vibration & thermal stress
Vibration Absorption	Excellent
Weight	12.00 lbs

Interchange

B46807P
EXB46807P
HDB46807P
TES46807P
UNIEXB46807P

No data found.

The Exhaust Bellows absorbs vibration and thermal movement in Heavy Duty commercial exhaust systems. Constructed with multi-layer 304 stainless steel and welded end fittings, the unit resists corrosion and fatigue across extreme exhaust temperatures. The component ships ready for straightforward installation during routine upkeep.
